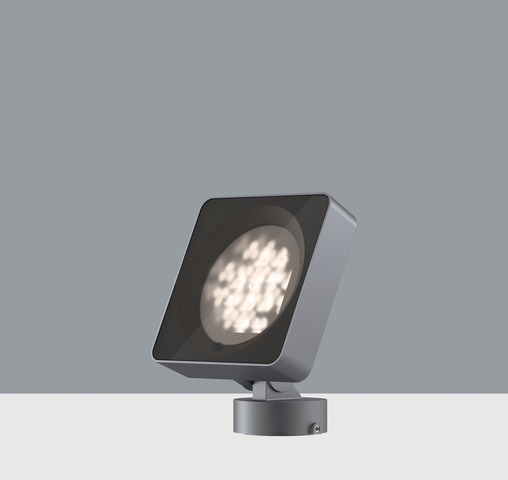

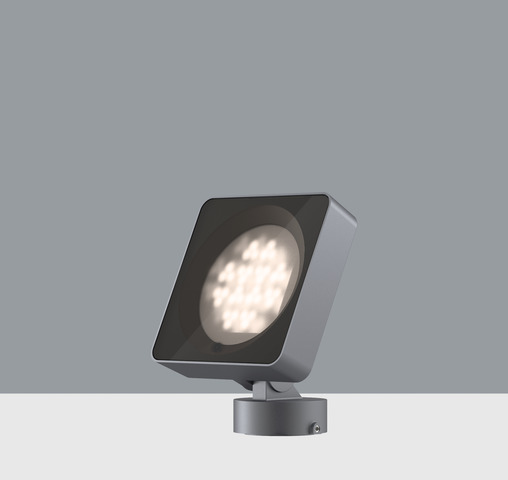

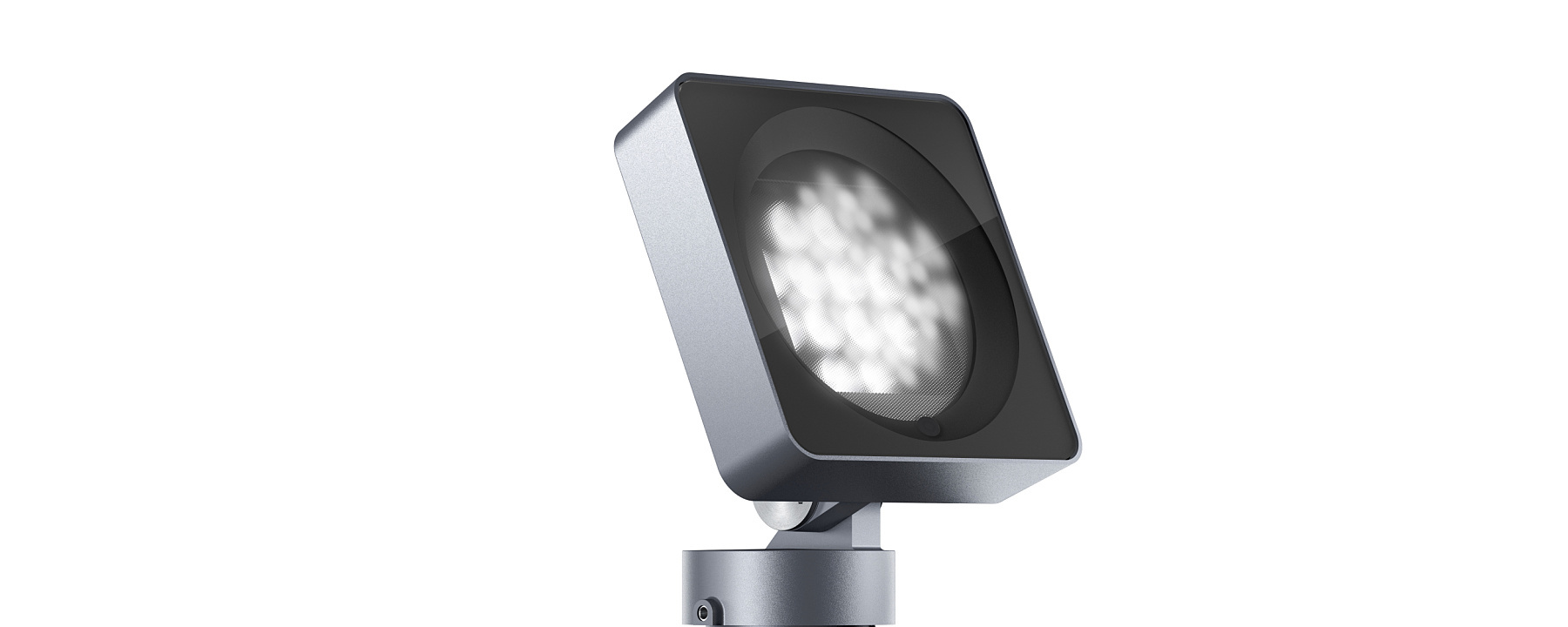

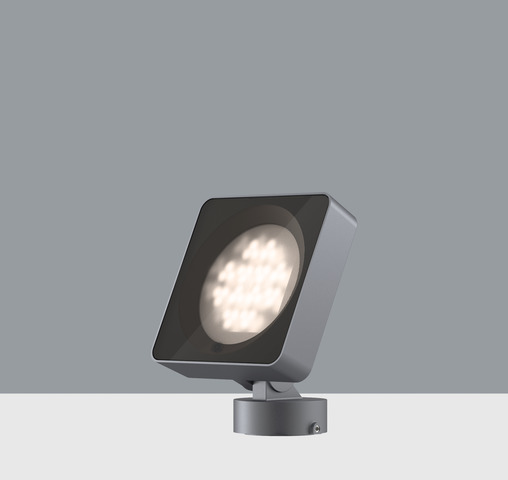

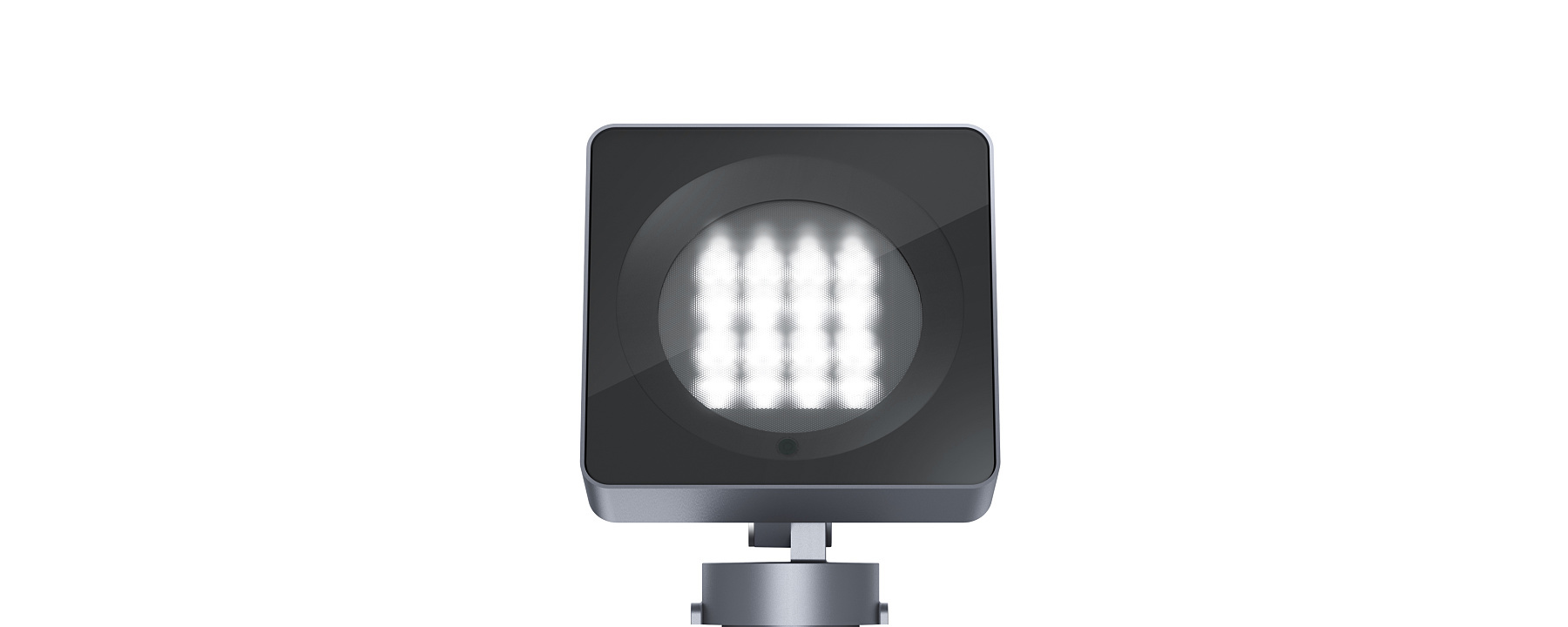

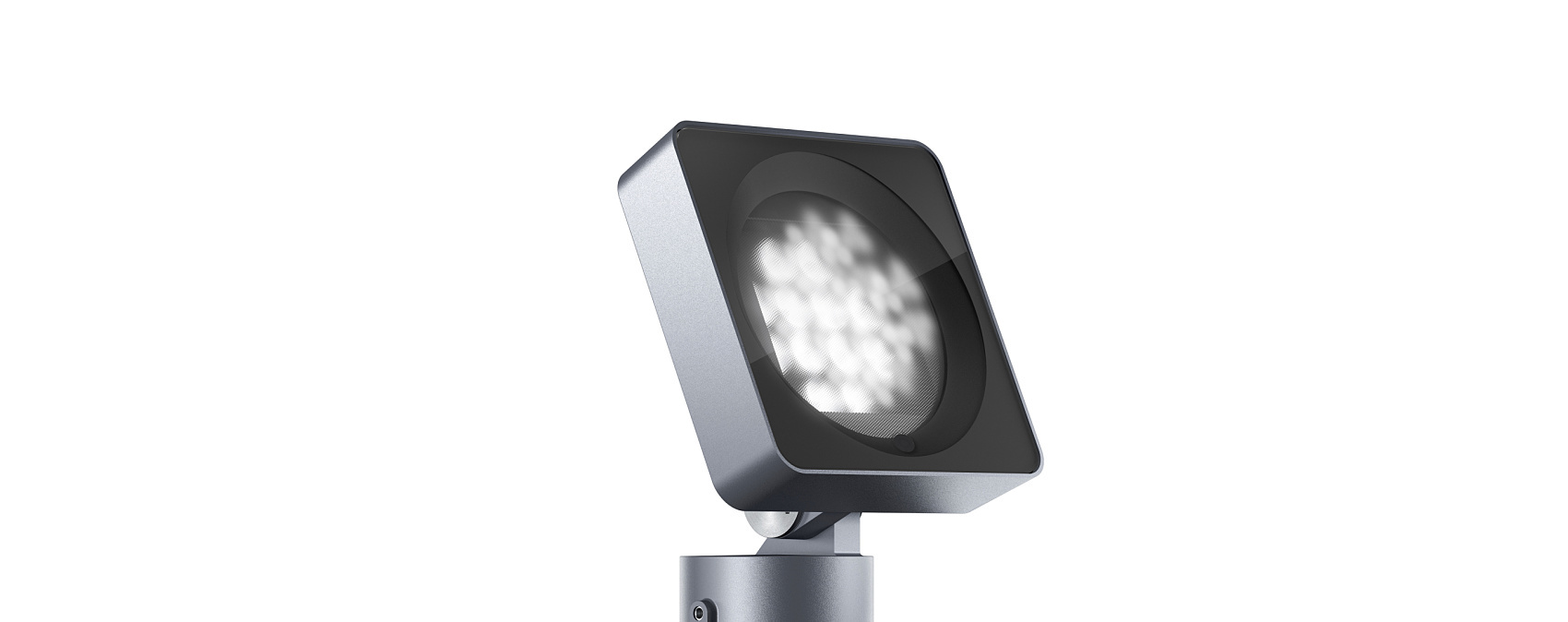

Lightscan. Radiance in digital form

Lightscan for sophisticated lighting tasks in outdoor areas

Show products

Special features of Lightscan
View product description

Large lumen packages for very high illuminances

The attention of the viewer can be focused via contrasting accents. ERCO offers high-performance luminaires with large lumen packages for this purpose.

Oval flood freely rotatable

The round oval flood Spherolit lens can be freely rotated with all luminaires to optimally align the light to various objects.

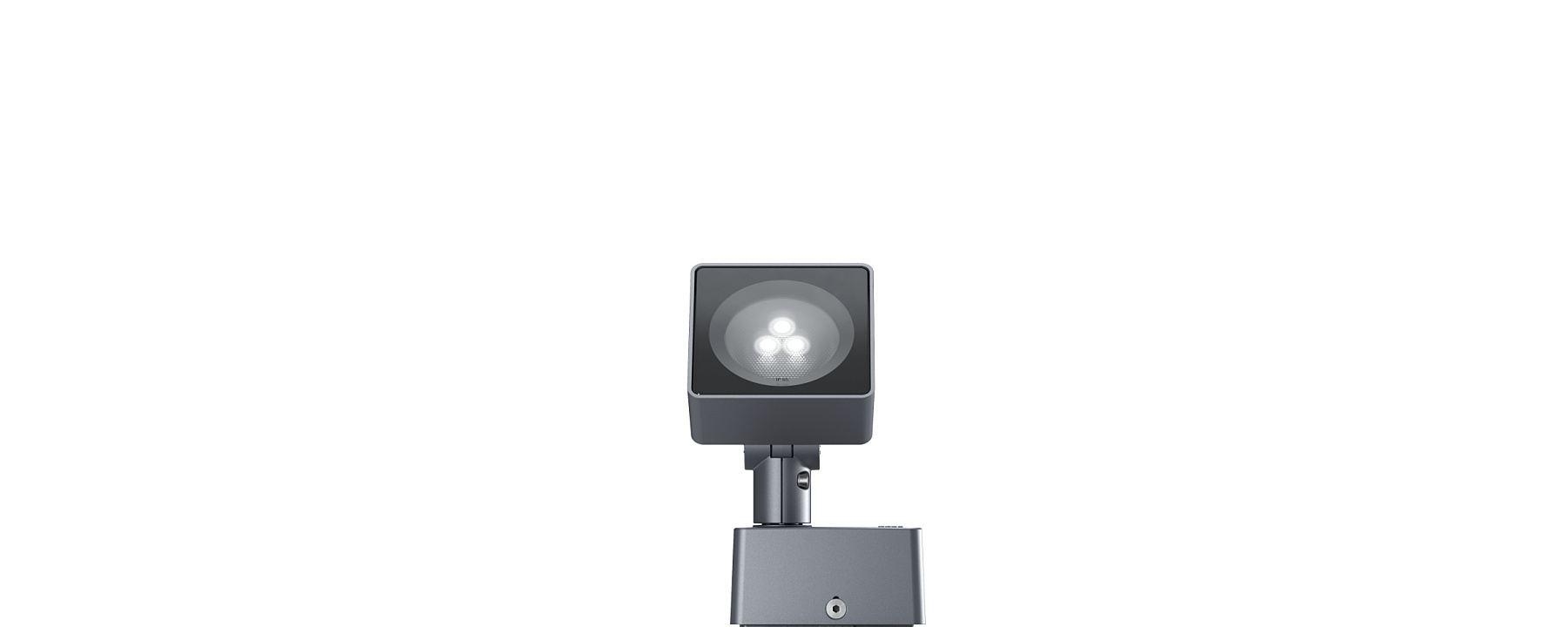

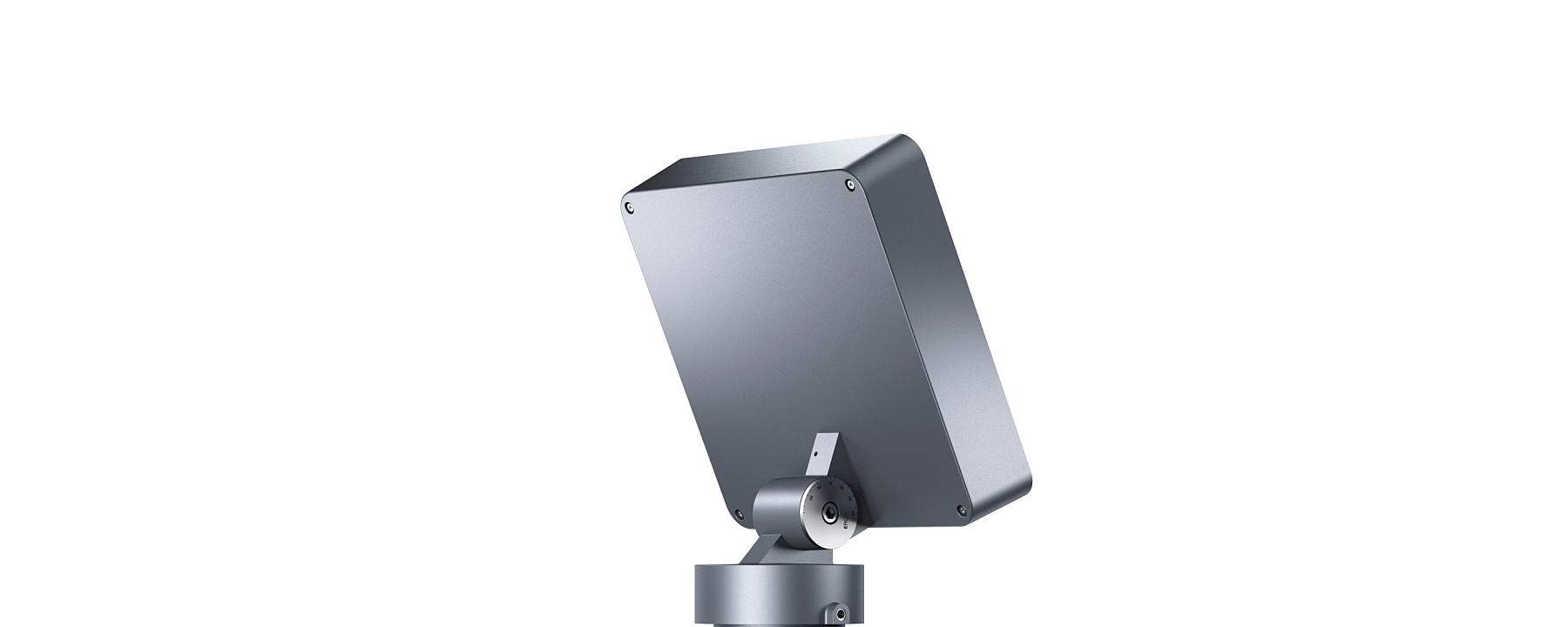

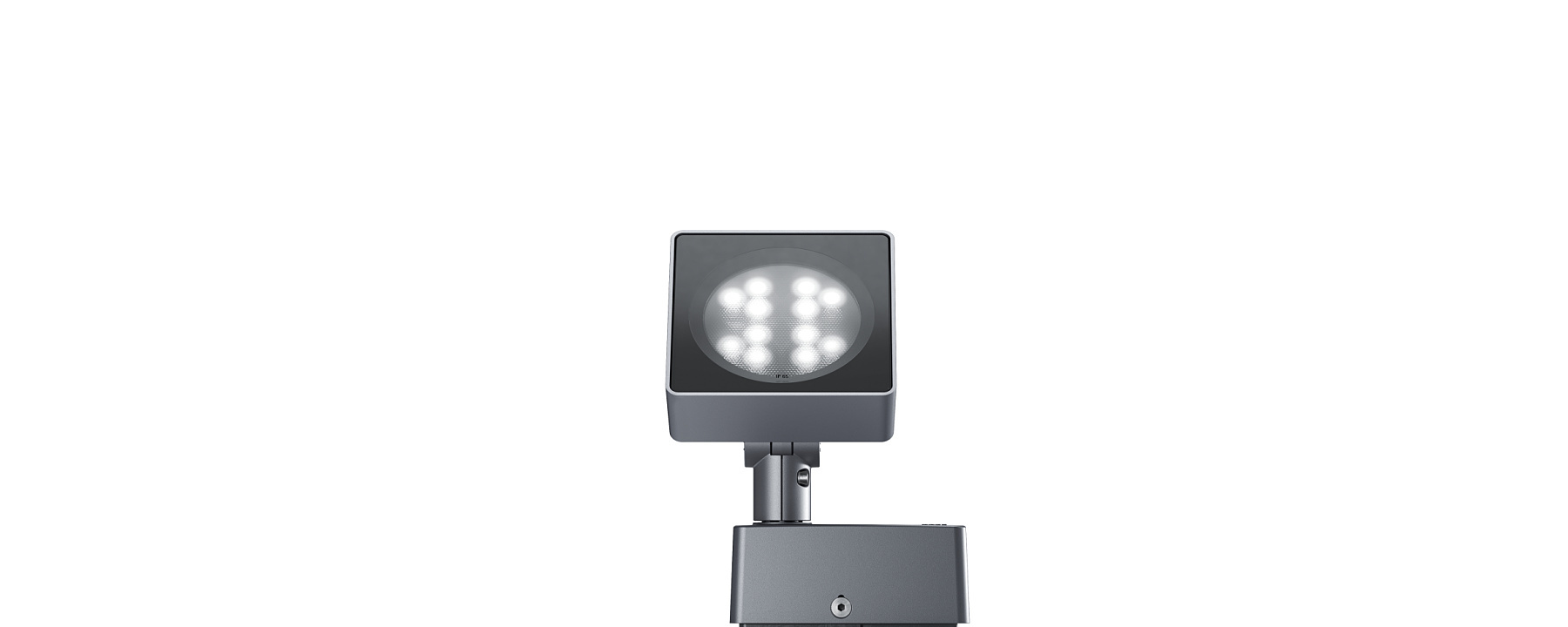

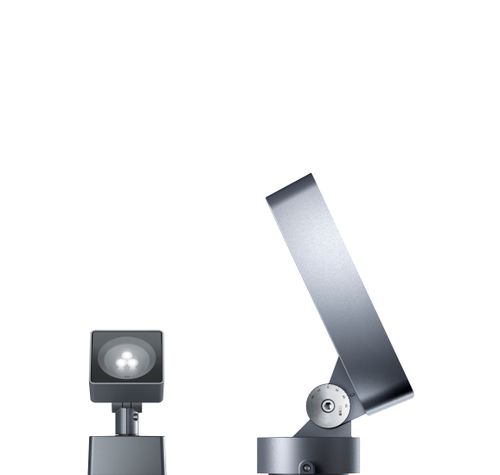

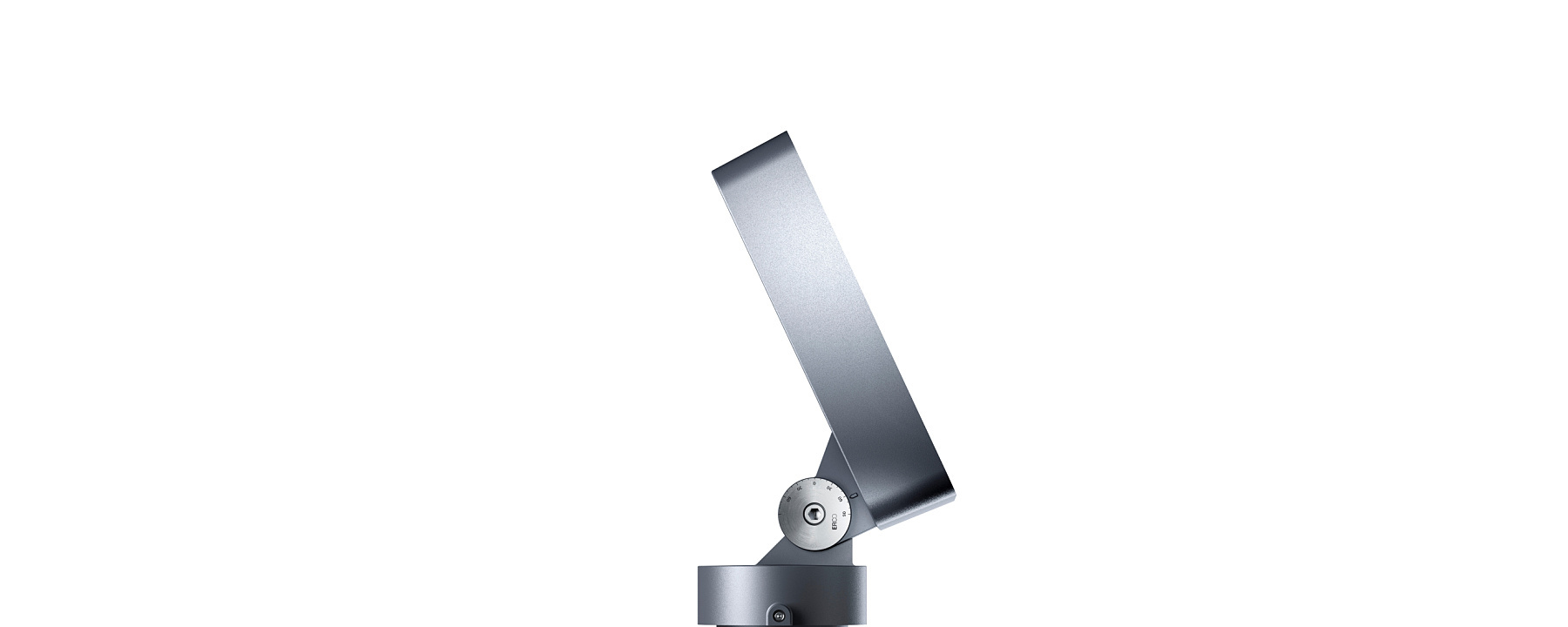

Various construction sizes

The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

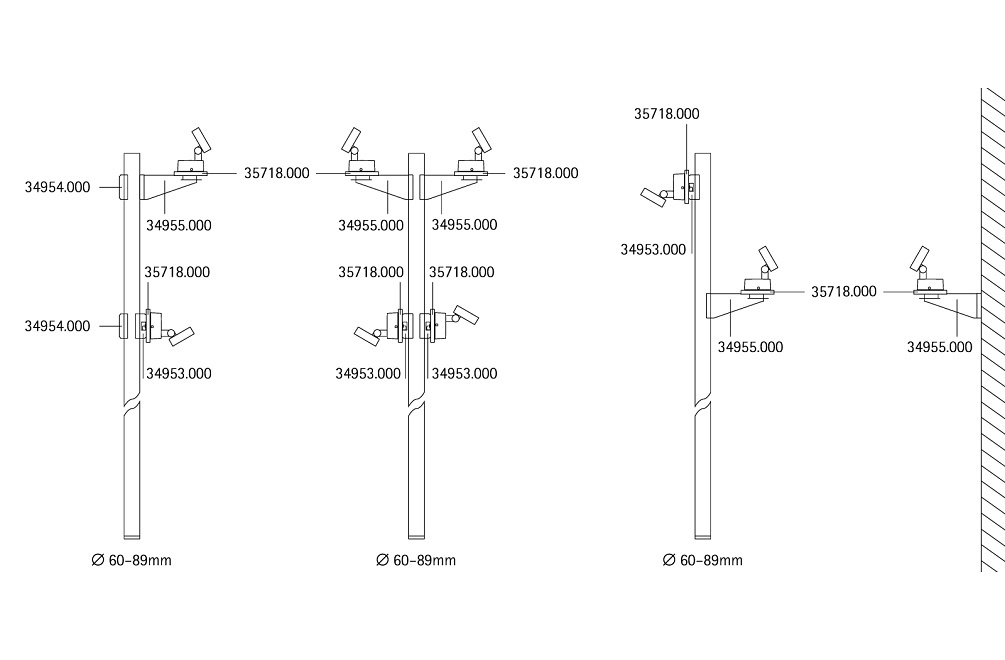

Lightscan sets accents in outdoor lighting. High luminous fluxes enable the illumination of buildings, walls and objects even if they are very high or if there are only a few possibilities for floodlight mounting positions. Different distributions ensure that the light only reaches where it is needed. Lightscan is extremely weatherproof and blends harmoniously into its surroundings with its slender silhouette. With its mounting accessories Lightscan is predestined for different requirements within the application. The maintenance-free optoelectronics protect resources thanks to their high efficiency and also reduce operating costs.

Lightscan in the application

Exergi Power Station, Stockholm. Architecture: Urban design, Stockholm. Photography: Johan Elm, Stockholm.

Incheon International Airport Terminal 2. Architecture: Heerim Architects & Planners, Seoul. Lighting design: P2LEDcube, Seoul Photography: Jackie Chan, Sydney.

Kingsford Smith International Airport T1, Sydney. Architecture: Hassell Architects. Photography: Jackie Chan, Sydney.

Incheon International Airport Terminal 2. Architecture: Heerim Architects & Planners, Seoul. Lighting design: P2LEDcube, Seoul. Photography: Jackie Chan, Sydney.

Jokhang Temple, Lhasa. Lighting design: School of Architecture, Tsinghua University, Zhang Xin Lighting Studio. Photography: Jackie Chan, Sydney.

Cutty Sark, National Maritime Museum, London. Photography: Gavriil Papadiotis, London.

Hotel Le Méridien, Seoul. Interior design: David Collins Studio, London. Lighting design: Eon SLD, Seoul. Photography: Jackie Chan, Sydney.

Green Wall 140 George Street, Sydney. Lighting design: Electrolight, Sydney. Photography: Jackie Chan, Sydney.

Fori Imperiali, Rome. Lighting design: Vittorio Storaro, Rome; Francesca Storaro, Castel Gandolfo. Photography: Vittorio Storaro, Rome / Castel Gandolfo.

Pavilion of the Milan Cathedral works organisation at the EXPO 2015, Milan. Photographer: Dirk Vogel, Dortmund.

Individualize Lightscan for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Lightscan even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO Spherolit lens

Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
Oval flood 360° rotation

2 ERCO LED-module

High-power LEDs: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer

3 Housing

Graphit m
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Double powder-coated
Optimized surface for reduced accumulation of dirt
Cover frame: powder-coated black
Safety glass

4 Control gear

Switchable or 0-10V dimmable

5 Mounting plate and hinge

Corrosion-resistant cast aluminum, No-Rinse surface treatment or polymer
Graphite m, double powder-coated or coated
90° tilt, 300° or 360° rotation
Internal wiring

1 ERCO Spherolit lens

Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
Oval flood 360° rotation

2 ERCO LED-module

High-power LEDs: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer

3 Housing

Graphit m
Corrosion-resistant cast aluminum, No-Rinse surface treatment
Double powder-coated
Optimized surface for reduced accumulation of dirt
Cover frame: powder-coated black
Safety glass

4 Control gear

Switchable or 0-10V dimmable

5 Mounting plate and hinge

Corrosion-resistant cast aluminum, No-Rinse surface treatment or polymer
Graphite m, double powder-coated or coated
90° tilt, 300° or 360° rotation
Internal wiring

Lightscan: Light effect and planning aid

Emphasis of objects or architectural elements.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 97W
239lm - 12576lm
Projectors

Projectors

The ideal angle of tilt (α) for accent lighting with Lightscan projectors is around 30°. This emphasises the three-dimensionality of architectural details, sculptures or trees, without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°

Wide-beam illumination of larger objects or spatial zones.

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
6.1W - 97W
717lm - 12576lm
Floodlights

Floodlights

Lightscan projectors ensure uniform floodlighting of long wall surfaces, columns or trees. The ideal angle of tilt (α) for this is around 30°

Arrangement: α = 30°

Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
6.1W - 97W
717lm - 12576lm
Lens wallwashers

Lens wallwashers

Uniform vertical illuminance in the outdoor area defines spatial borders. Here, the distance (a) of Lightscan lens wallwashers from the wall should be around one third of the room height (h). This results in an angle of tilt (γ) of approx. 55°.

Arrangement: a = 1/3 x h or γ = 55°

For good longitudinal uniformity, the spacing (d) of Lightscan lens wallwashers may be up to 1.2 times the offset from the wall (a).

Arrangement: d ≤ 1.2 x a

The optimal wall offset and luminaire spacing for each product are indicated in the wallwasher tables in the catalogue and the product data sheets.
