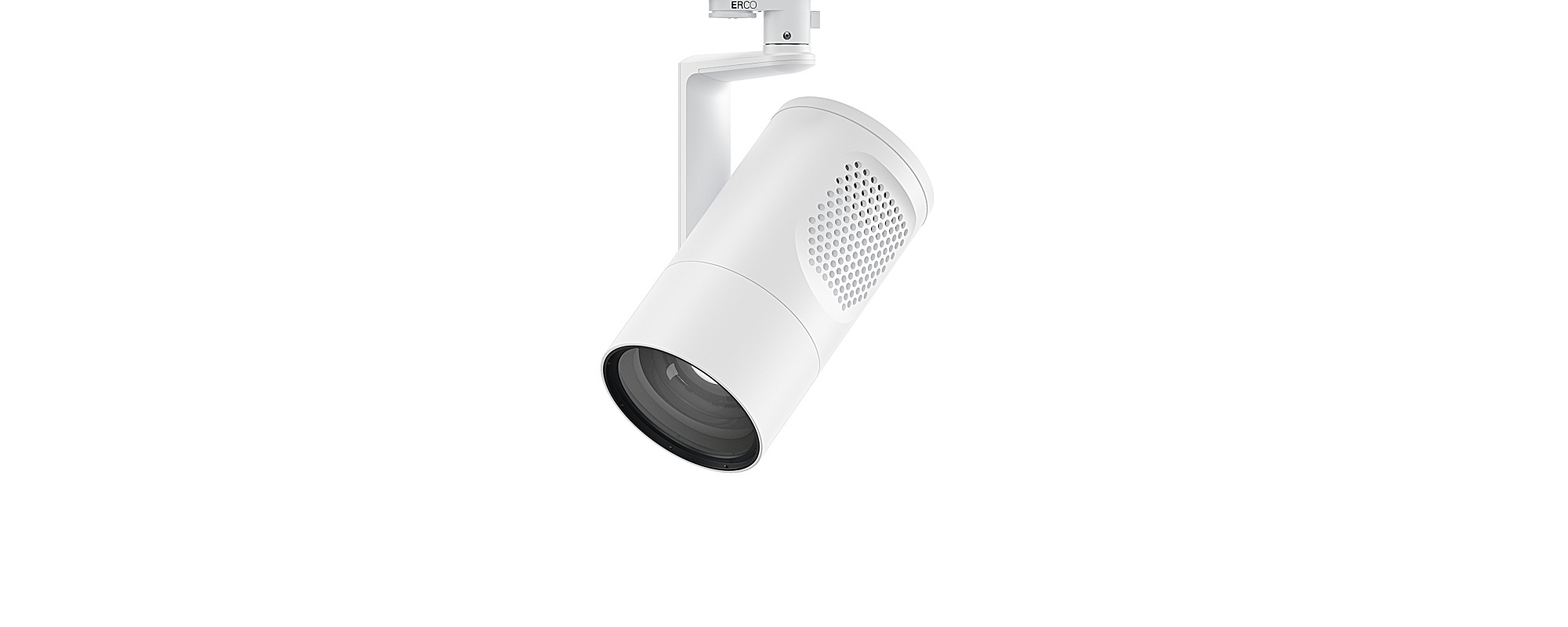

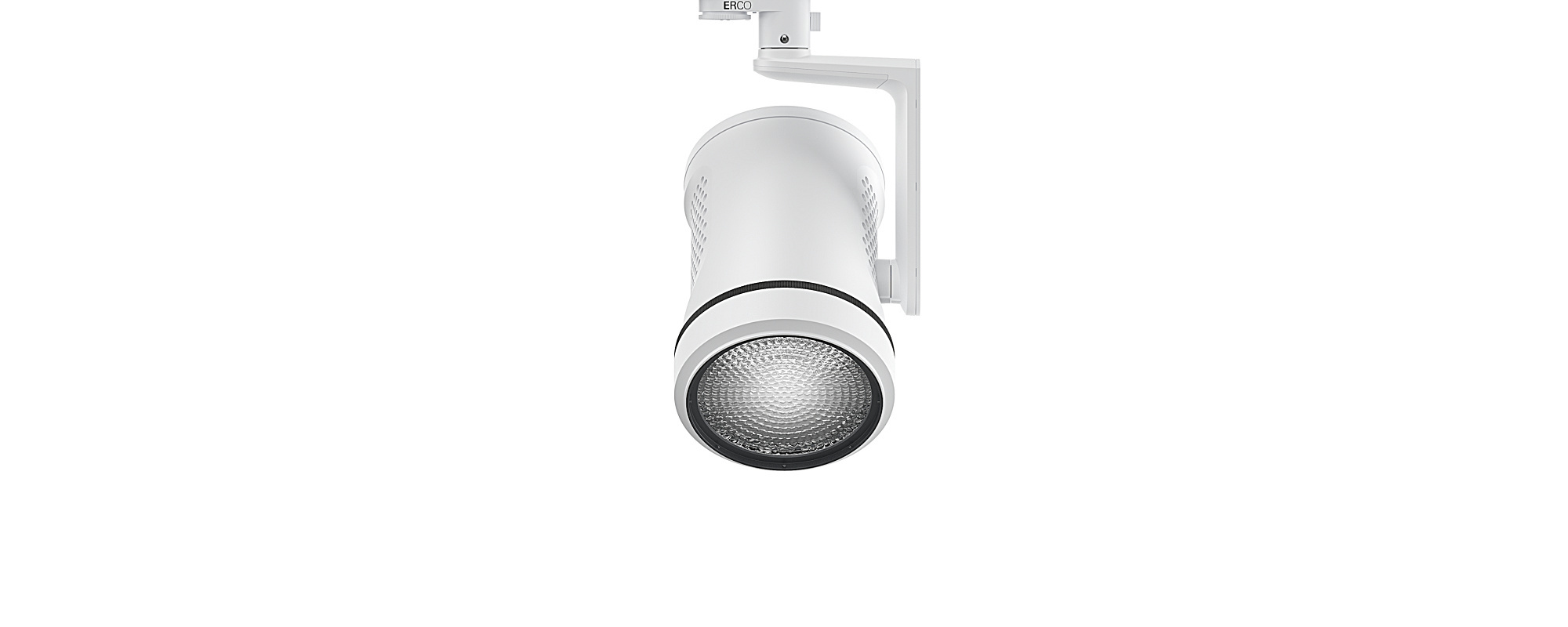

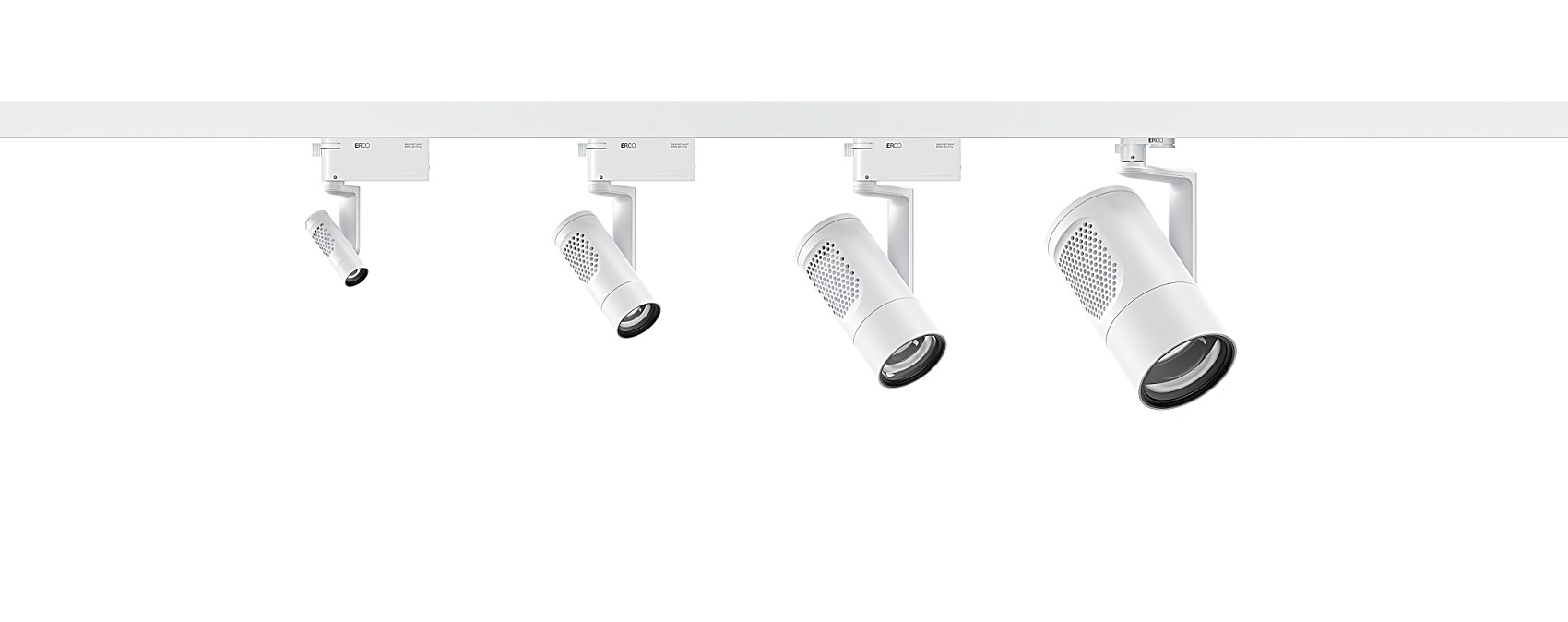

Eclipse 120V. The art of illuminating

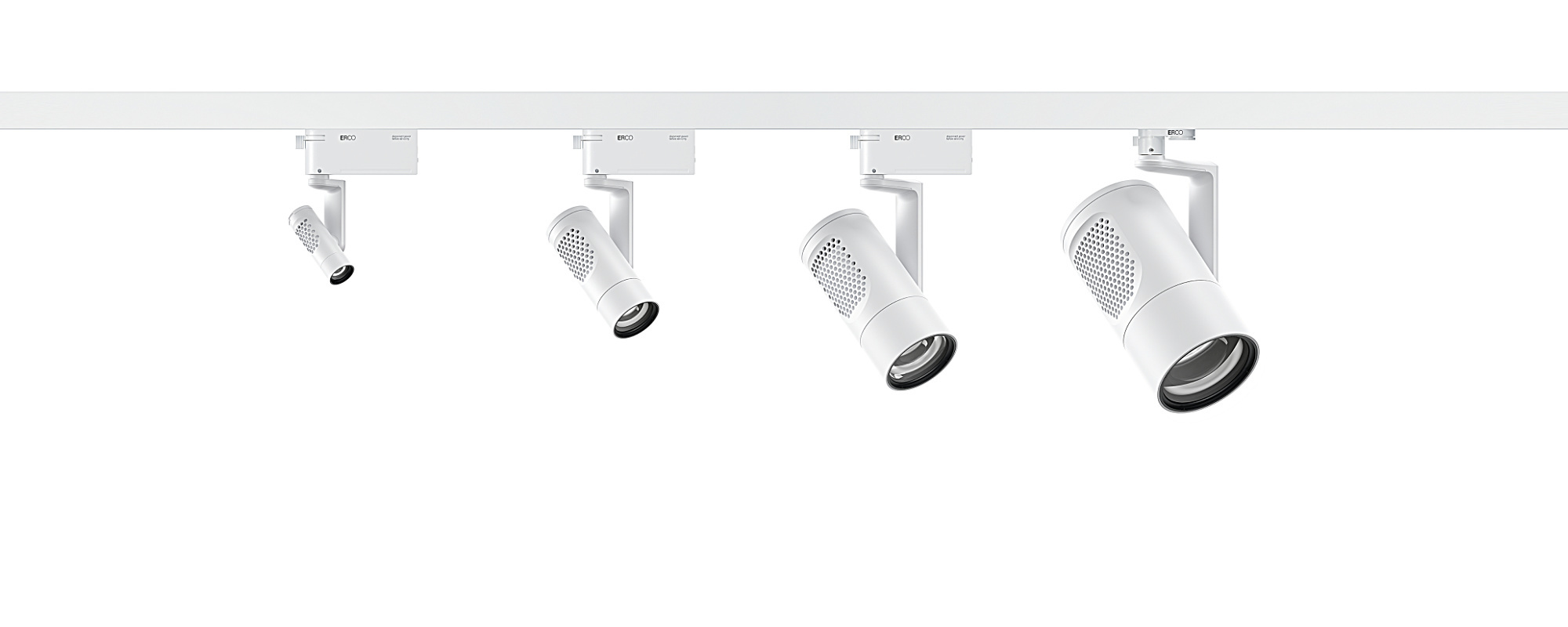

One spotlight system, thousands of possibilities: with interchangeable low brightness lenses and a wide range of accessories

Show products

Interactively discover the 28,000 possibilities of Eclipse

Special features of Eclipse 120V
View product description

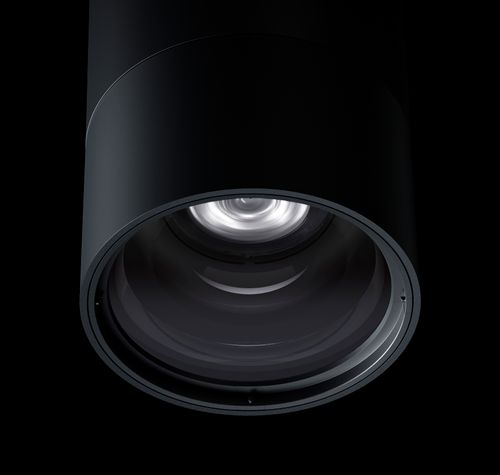

Darklight lens

The darklight lens not only creates a magical impression with just one light point. It also features precise, uniform light distributions, wide flexibility in the selection of beam characteristics and state of the art efficiency.

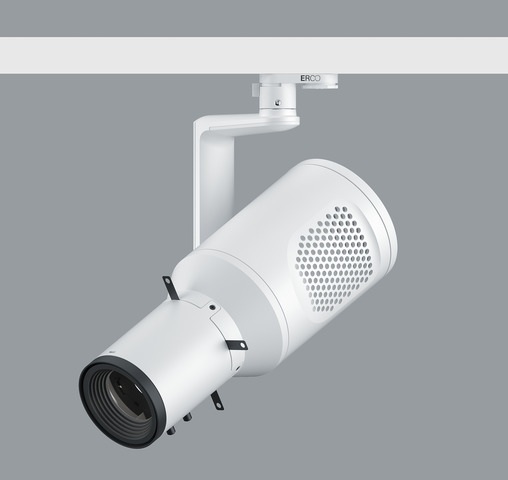

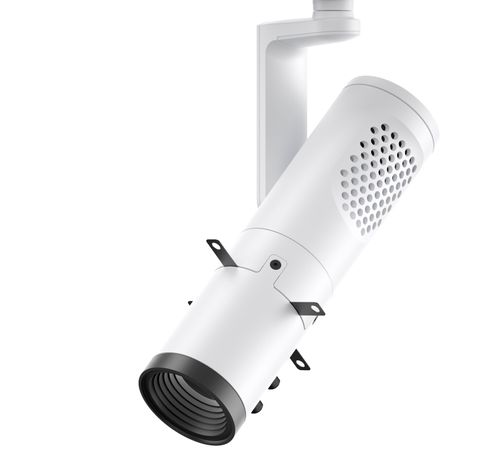

Contour spotlights

Framing attachments enable a sharply defined light beam. In this way fascinating effects can be created with contour spotlights, where crisply illuminated pictures appear to illuminate from within.

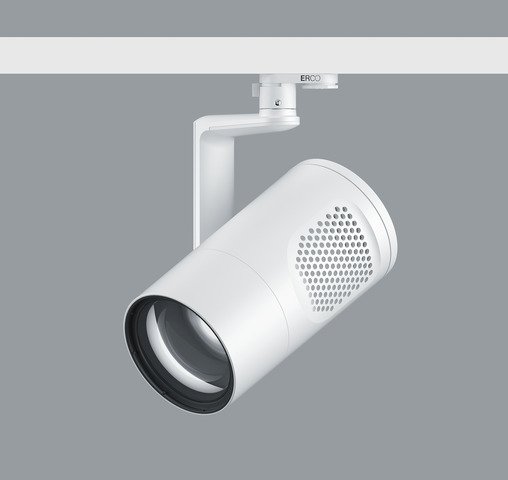

Zoom spotlights

The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.

Eclipse offers high-end technology, maximum visual comfort and a system scope for all applications – for example in museums and galleries but also for exclusive retail projects. Interchangeable lens units define the light distributions—also with zoom spotlights and contour spotlights. With only one light point and an almost invisible beam path, the new Darklight lenses create a magical appearance. Refine with accessories: conversion filters create additional spectra and tunable white and RGBW are available for dynamic scenes. With four sizes, Eclipse fits ideally into existing installations. Modern connectivity such as Casambi Bluetooth, Zigbee or 0-10V via a bridge round off Eclipse.

Eclipse 120V in the application

Museo Musac, León. Architecture: Studio Mansilla + Tuñón Arquitectos, Madrid. Photography: Rafael Vargas.

Liljevalchs Konsthall. Architecture: Wingårdhs, Stockholm. Lighting design: Thespis Light, Tommarp. Electrical engineering: WSP, Stockholm; Tyréns, Stockholm; UMIA, Hägersten. Photography: Tomasz Majewski, Oslo

Virág Judit Gallery, Budapest. Interior/ exhibition design: Virág Judit Gallery. Photography: David Schreyer.

MADIZIN X SILVERJAM Studios, Hamburg. Interior design: aiinu design, Hamburg. Photography: Frieder Blickle, Hamburg.

Livrustkammaren, Armoury of the Royal Castle, Stockholm. Exhibition design: Annika Thore, Form och Funktion. Lighting design: Pernilla Tenje, Statens Historiska Museer, Stockholm. Photography: Johan Elm, Stockholm.

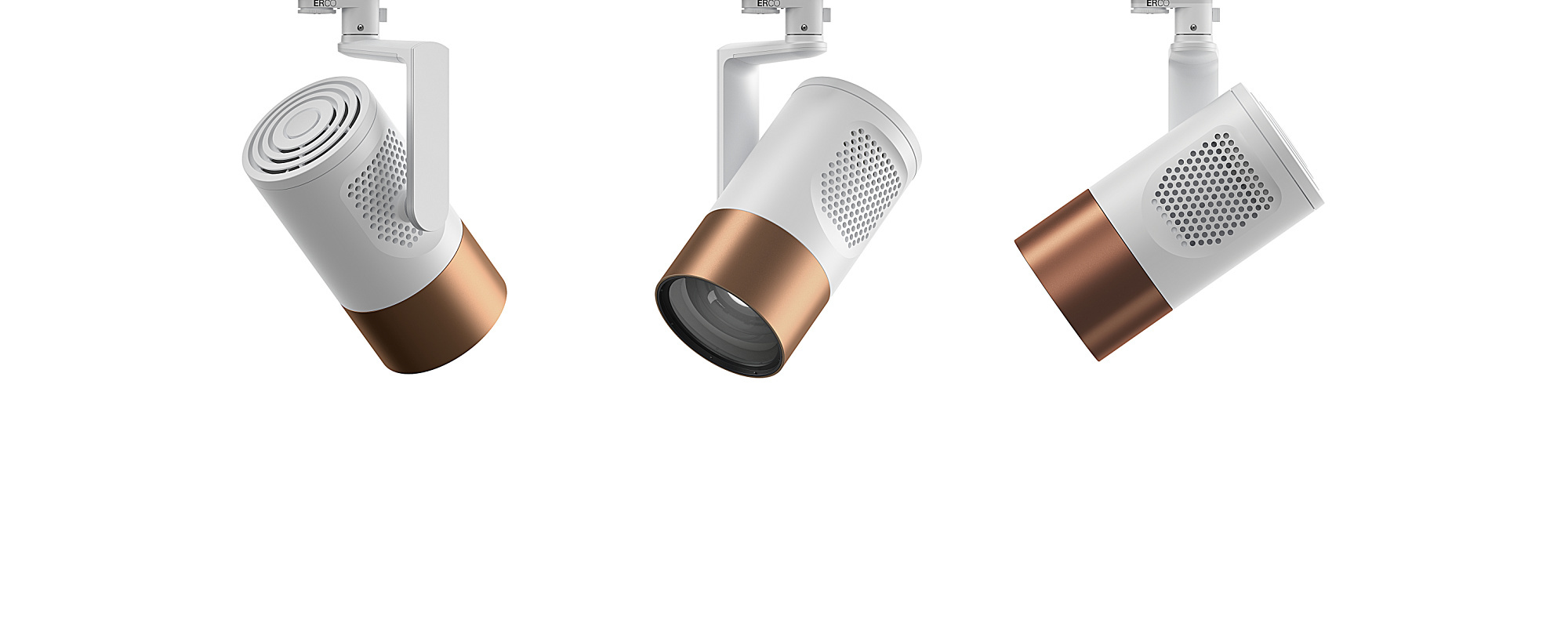

Individualize Eclipse 120V for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Eclipse 120V even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Housing: 10,000 further colors
Further control methods

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

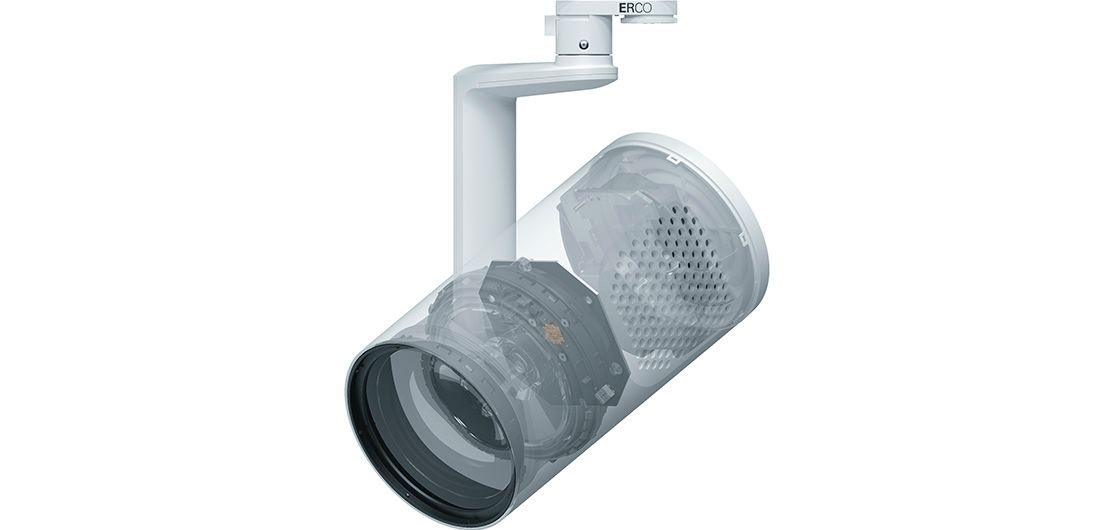

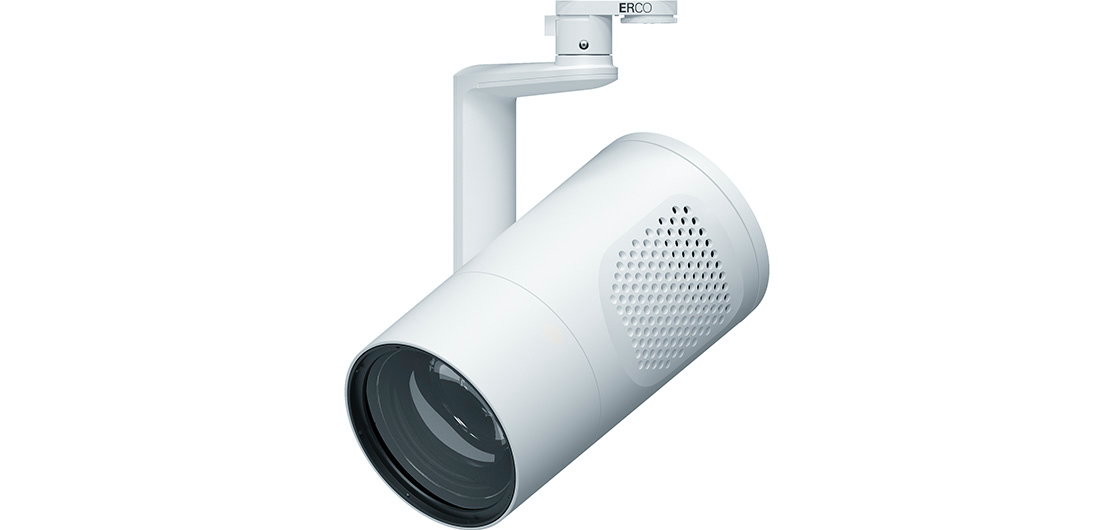

Product features in detail

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

4 Housing and bracket

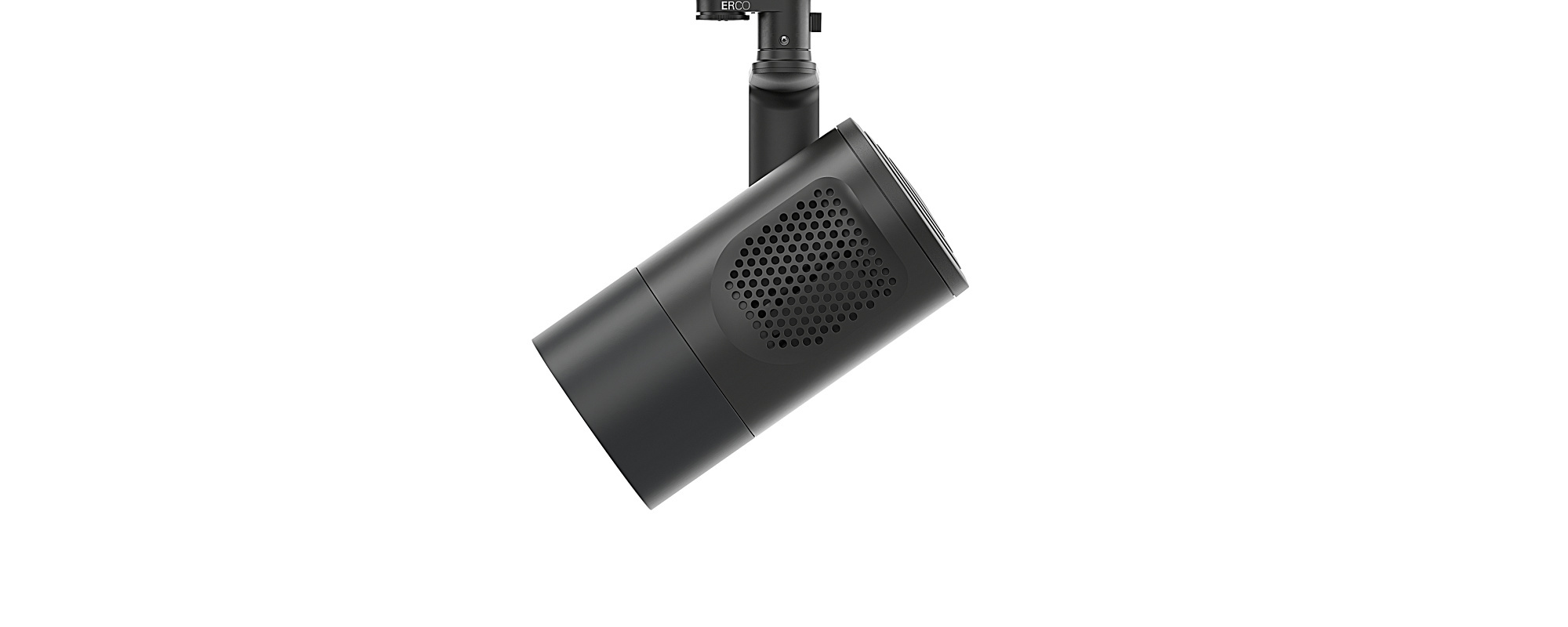

White (RAL9002), black or silver
Die cast zinc or cast aluminum, powder-coated
Pivotable 0°–270°
Bracket: cast aluminum/polymer; rotatable through 360° on adapter

5 Control gear

On-board Dim, Casambi Bluetooth or Zigbee
On-board Dim version: rotary control for control of brightness on the luminaire

6 ERCO turning transadapter or ERCO turning adapter for 2-circuit track

1 ERCO lenses

Made of optical polymer
Darklight lenses: narrow spot, spot, flood, wide flood or extra wide flood
Spherolit lenses: oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

4 Housing and bracket

White (RAL9002), black or silver
Die cast zinc or cast aluminum, powder-coated
Pivotable 0°–270°
Bracket: cast aluminum/polymer; rotatable through 360° on adapter

5 Control gear

On-board Dim, Casambi Bluetooth or Zigbee
On-board Dim version: rotary control for control of brightness on the luminaire

6 ERCO turning transadapter or ERCO turning adapter for 2-circuit track

Eclipse 120V: Light effect and planning aid

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 30.5W
192lm - 3882lm
Spotlights

Spotlights

Works of art, merchandise and architectural details are effectively accentuated with Eclipse. The ideal angle of tilt (α) for this is around 30°. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Zoom spotlights

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
2W - 30.5W
192lm - 3882lm
Zoom spotlights

Zoom spotlights

Zoom spotlights feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller works of art can be accentuated effectively at an inclination angle (α) of approximately 30°. The oval zoom is suitable for linear works of art. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Projection of contours.

Lighting technology
Luminaire arrangement

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Light source
5.8W - 30.5W
695lm - 3882lm
Contour spotlights

Contour spotlights

Contour spotlights generate freely adjustable, crisp-edged light beams. As a result fascinating effects can be created where pictures appear to illuminate from within. Select narrow framing to accurately illuminate small exhibits from a long distance and wide framing to accurately illuminate large exhibits from a short distance.

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
2W - 30.5W
192lm - 3882lm
Floodlights

Floodlights

The ideal angle of tilt (α) for floodlighting objects with a long, square shape, e.g. pictures, sculptures or merchandise displays, is around 30°.

Arrangement: α = 30°

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

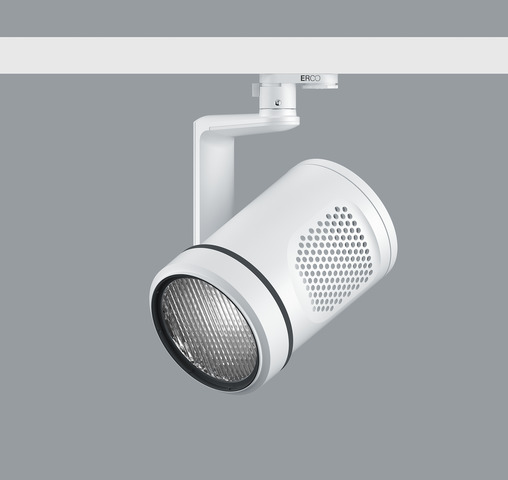

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
2W - 30.5W
192lm - 3882lm
Lens wallwashers

Lens wallwashers

For uniform vertical lighting, the distance to the wall (a) of Eclipse lens wallwashers should be around one third of the room height (h). This results in an angle of tilt (α) of around 35°.

Arrangement: a = 1/3 x h or α = 35°

For good longitudinal uniformity, the spacing (d) of Eclipse lens wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.

Lighting tool

Light distribution

Eclipse planning aids

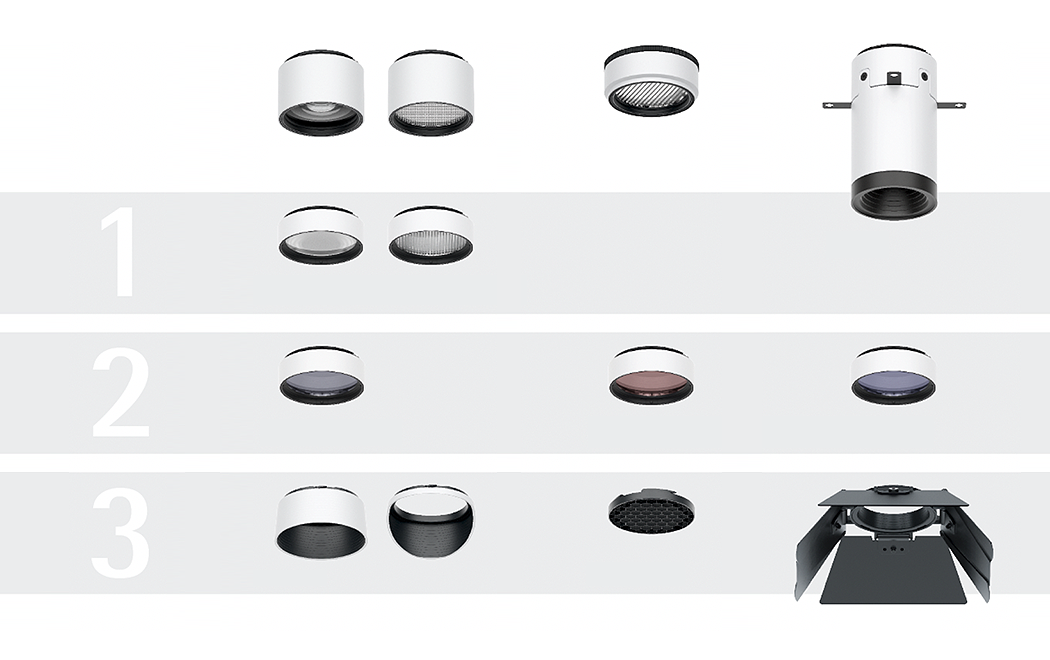

Accessories for Eclipse

You can combine accessory elements with each other. Supplement your lens unit with up to three additional components.

Select from a total of 11 light distributions

1.	Modulate the light distribution with lenses
2.	Modify the light spectrum with filters
3.	Achieve even more visual comfort with anti-glare elements

Please note that, depending on the size of the spotlight and mounting of the track, there may be restrictions on the permissible number of accessory components; for example, vertical wall installation. Please refer to the respective instructions for use.

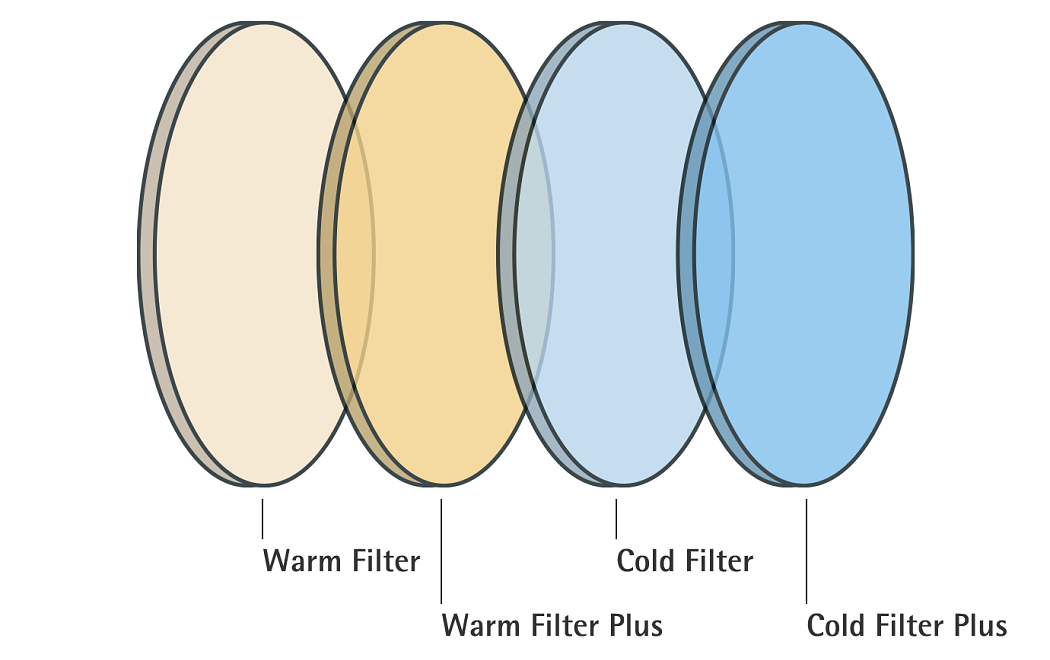

Conversion filters

Eclipse offers six spectra as standard from 2700K to 4000K and up to CRI 97. The conversion filters available as accessories make 24 additional spectra available. As an example, these would be suitable for temporary exhibitions requiring a modified lighting concept. To what extent spectra are changed depends on the filter selected: a Cold Filter and Warm Filter with lower intensity and a Cold Filter Plus and Warm Filter Plus with higher intensity are available.

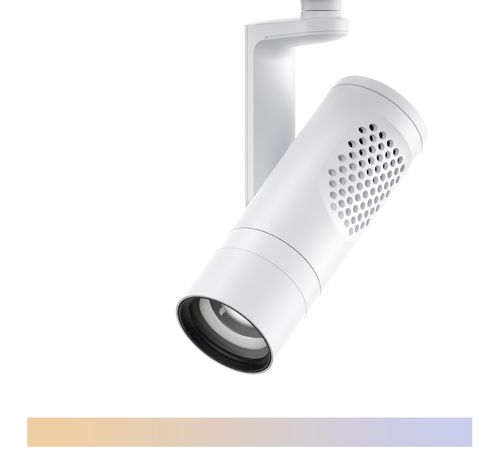

For flexible adjustment of the spectrum Eclipse is also available as a tunable white version, enabling spectra from 2700K to 7500K with consistent color rendering of >92.
