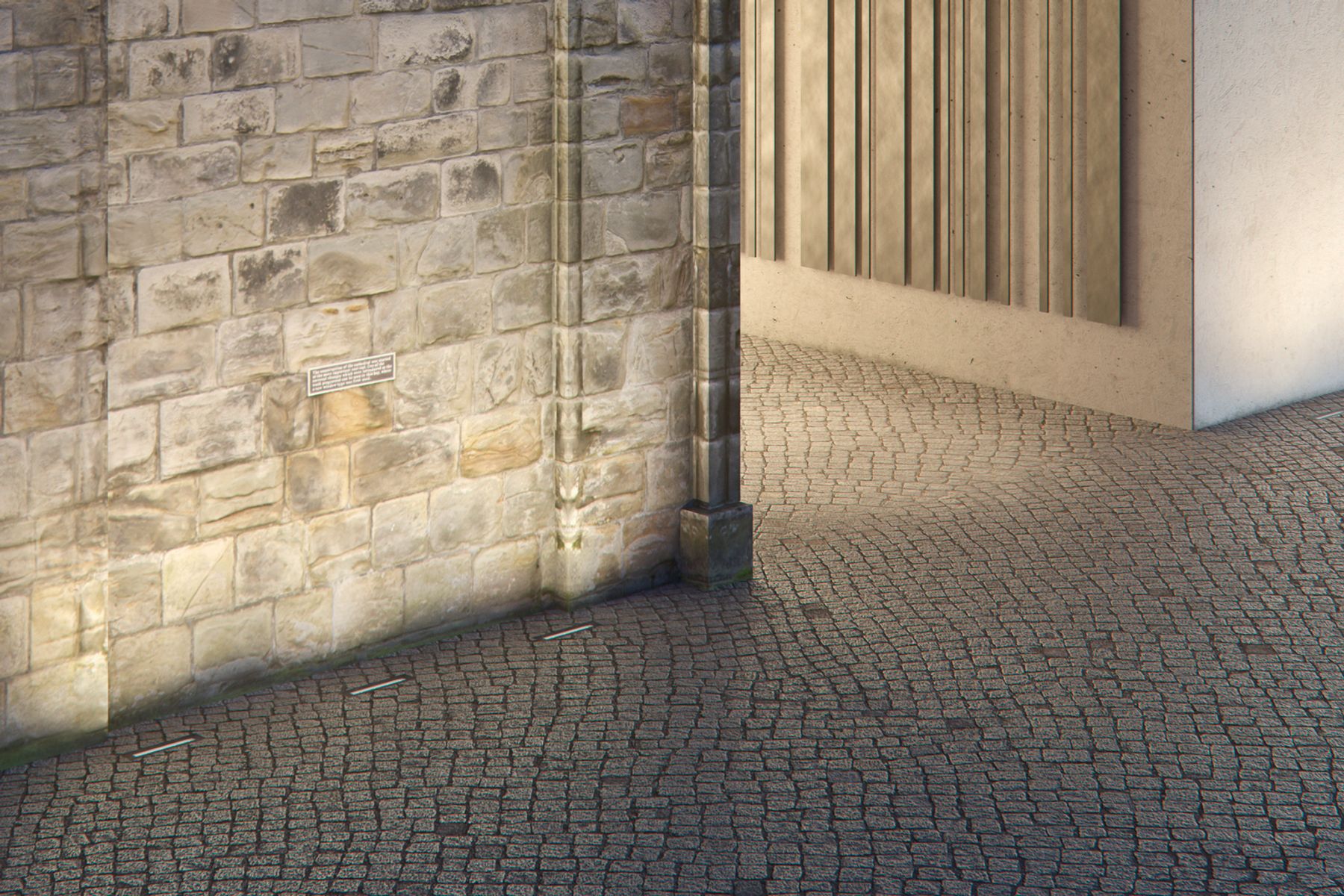

Site. Emphasising wall structures for a three-dimensional effect

Grazing light wallwashers accentuate surface texture on walls and façades

Show products

Special features of Site
View product description

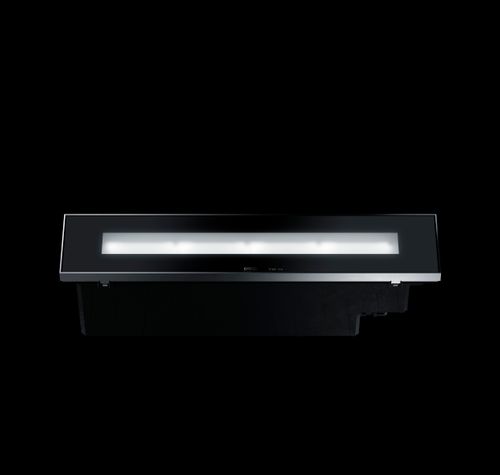

Very high visual comfort

ERCO has developed luminaires with special housing designs and highquality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

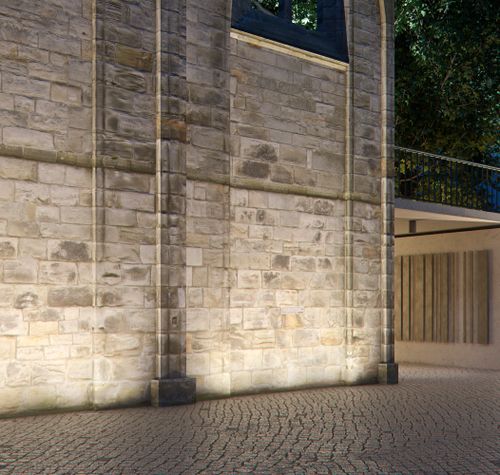

Grazing light wallwashing

Grazing light wallwashers need to be positioned close to the wall for ideal effects.

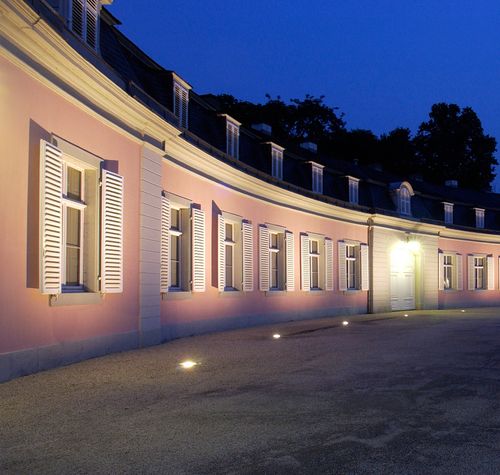

Large luminaire spacing

ERCO’s efficient photometrics enable selected luminaires to be spaced particularly far apart, thereby minimising the number of luminaires required.

Site emphasises the tactile qualities of architectural materials – the grazing light wallwasher makes even the finest structures of wood, concrete and brick and rough surfaces such as natural stone clearly visible. Site creates high-contrast, structurally appealing effects with light and shadow. The light can be comfortably tilted in both directions up to an inclination angle of 10 degrees. Thanks to its asymmetric distribution, the grazing light wallwasher generates an extremely uniform beam even when the luminaire is positioned up to 30cm in front of the wall. Site creates both atmospheric light displays and efficient outdoor lighting.

Site in the application

Sollentuna sports hall, Sollentuna. Architecture: Bleck arkitekter AB. Lighting design: Sweco. Photography: Johan Elm, Stockholm.

Gyeongbokgung Palace, Seoul. Lighting design: bitzro & partners, Seoul. Photography: Jackie Chan, Sydney.

Missouri Botanical Garden Visitors Centre. Missouri. Architecture: Ayers Saint Gross and Tao + Lee, Missouri. Lighting design: Reed Burkett Lighting Design, Missouri. Photography: RLI Photography.

St Andrew’s by the Sea Uniting Church, Glenelg. Sales partner: Buckford Illumination Group. Photography: Peter Barnes.

The Bund waterfront, Shanghai. Lighting design: Huangpu District Lighting Landscape Management Office. Photography: Jackie Chan, Sydney.

Villa K. architecture: skyline architekten, Wien. Photography: Gustavo Allid Bernasconi.

Tobias Mayer Museum, Marbach. Architecture: Webler + Geissler Architects, Stuttgart. Exhibition: Vista Rasch, Leinfelden-Echterdingen. Lighting design: pbe-Beljuli, Pulheim. Photography: Sebastian Mayer, Berlin.

Wijnhuistoren, Zutphen. Lighting design: Studio DL, Hildesheim. Photography: Thomas Mayer, Neuss.

Individualise Site for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Site even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Frame: V4A stainless steel
Anti-slip safety glass

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

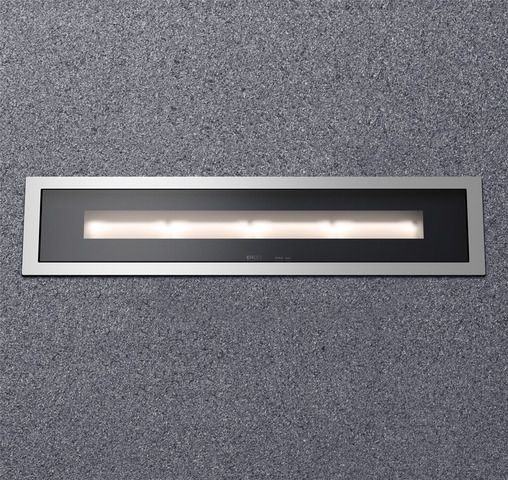

Product features in detail

1 Softec lens

2 ERCO LED-module

High-power LED: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer
±10° tilt

3 Frame

Covered or flush mounting detail
Stainless steel
Safety glass: 10mm, transparent

4 Housing

Polymer, black
Connection cable 3x1.5mm² or 5x1.5mm²
Installation with separate connection sleeve
Installation in mounting enclosure: driveable, can be driven over by vehicles with air-filled tyres. Load 20kN
Hollow floor installation only with overlapping installation detail: Fixing set to be ordered separately

5 Control gear

Switchable, phase dimmable or DALI dimmable
Phase dimmable version: Dimming with external dimmers possible (trailing edge)

1 Softec lens

2 ERCO LED-module

High-power LED: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer
±10° tilt

3 Frame

Covered or flush mounting detail
Stainless steel
Safety glass: 10mm, transparent

4 Housing

Polymer, black
Connection cable 3x1.5mm² or 5x1.5mm²
Installation with separate connection sleeve
Installation in mounting enclosure: driveable, can be driven over by vehicles with air-filled tyres. Load 20kN
Hollow floor installation only with overlapping installation detail: Fixing set to be ordered separately

5 Control gear

Switchable, phase dimmable or DALI dimmable
Phase dimmable version: Dimming with external dimmers possible (trailing edge)

Site: Light effect and planning aid

Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.

Lighting technology
Luminaire arrangement

Grazing light wallwashers

Asymmetrical light distribution for accentuated façade lighting.

Light source
24.2W - 24.3W
2869lm - 3144lm
Grazing light wallwashers

Grazing light wallwashers

To allow surface textures to come to the foreground of attention, the distance (a) of Site grazing light wallwashers from the wall should be approx. 30cm.

Arrangement: a = 30cm

Application: surfaces with a three-dimensional texture, e.g. natural stone walls.

For good longitudinal uniformity, the spacing (d) of two Site grazing light wallwashers may be up to 1m.

Arrangement: d ≤ 1m

The optimal wall offset and luminaire spacing for each product are indicated in the wallwasher tables in the catalogue and the product data sheets.

Lighting tool

Light distribution

Downloads

Product brochure

Download brochure

Product images

Download product images

Request now: Site for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Configure Site
