Iku Work. Efficient, economical and standard compliant

Downlights for office workplace lighting

Show products

Iku & Iku Work – ERCO Human Centric Lighting with Iku

Special features of Iku Work
View product description

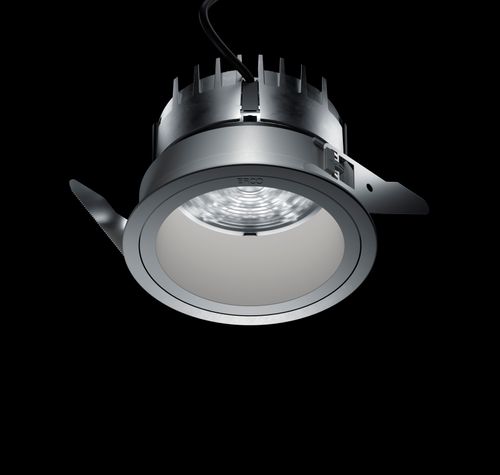

Elegant light emission

The special geometry of the lens ensures a uniformly illuminated light opening with high visual comfort.

Suitable for office workstations

ERCO develops luminaires with the specifications of good glare control and high visual comfort. UGR values are used as support for purely norm-referenced lighting. With downlights though this should not be carried out using 'blanket' values, but should be implemented according to the individual arrangement of luminaires in the room.

Covered or flush mounting detail

As standard, all recessed luminaires have overlapping installation details. Flush mounting rings are available as accessories.

Iku Work is the ideal downlight for standard-compliant, zonal lighting of office workstations. Iku Work also features oval wide flood light distribution with UGR<19 especially for rows of workstations. The wide flood distribution uniformly illuminates individual desks. Simple installation, high luminous efficacy and the long service life of the recessed downlights are winning factors in terms of cost efficiency. For office concepts in the sense of Human Centric Lighting, the combination of Iku Work standard-compliant downlights with wallwashers from the Iku product range is ideal. In this way, highly attractive atmospheres in offices are created through vertical lighting.

Iku Work in the application

Individualise Iku Work for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Iku Work even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Anti-glare cone: gold matt, silver matt, champagne matt or copper matt-coated and other colours
Connection: 5-pole plug with connection cable (Wago or Wieland)
Mounting ring: 10,000 further colours

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO Fresnel lens

Made of optical polymer
Light distributions: Wide flood or Oval wide flood
Oval wide flood rotatable through 360°

2 ERCO LED-module

Mid-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

3 Anti-glare cone

Silver-coated or white (RAL9002)

4 Mounting ring

Covered mounting detail
Fixing for ceiling thicknesses of 1-25mm (size 4) or 1-30mm (size 5-7)
Polymer, white
For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing

Cast aluminium, designed as heat sink
Rotatable through 360°

6 Control gear

DALI dimmable

1 ERCO Fresnel lens

Made of optical polymer
Light distributions: Wide flood or Oval wide flood
Oval wide flood rotatable through 360°

2 ERCO LED-module

Mid-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

3 Anti-glare cone

Silver-coated or white (RAL9002)

4 Mounting ring

Covered mounting detail
Fixing for ceiling thicknesses of 1-25mm (size 4) or 1-30mm (size 5-7)
Polymer, white
For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing

Cast aluminium, designed as heat sink
Rotatable through 360°

6 Control gear

DALI dimmable

Iku Work: Light effect and planning aid

Ambient lighting produced by wide beam light distribution.

Lighting technology
Luminaire arrangement

Downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

Light source
10.1W - 22.1W
1469lm - 4086lm
Downlights

Downlights

For the uniform illumination of office workstations, the luminaire spacing (d) between two Iku Work downlights may be up to 1.5 times the height (h) of the luminaire above the working plane (rough guide).

Arrangement: d ≤ 1.5 x h

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2

Ambient lighting produced by wide beam light distribution.

Lighting technology
Luminaire arrangement

Downlights oval wide flood

Wide axially symmetrical light distribution for general lighting.

Light source
9.7W - 23.8W
1292lm - 4188lm
Downlights oval wide flood

Downlights oval wide flood

To achieve high uniformity and good facial recognition when illuminating office workstations, the luminaire spacing of Iku Work downlights with oval wide flood light distribution (d) can be up to 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

Lighting tool

Light distribution

Downloads

Product brochure

Download brochure

Product images

Download product images

Request now: Iku Work for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.
