At the center of time―ERCO illuminates Swatch headquarters and Cité du Temps, Biel / Switzerland

The Japanese architect Shigeru Ban has made a name for himself on a global scale with pioneering designs using cardboard and timber. At the Swatch and Omega campus in Biel, the Pritzker Prize winner with offices in Tokyo, New York and Paris has now realized his largest wood-based building complex to date: a total of 4,600 cubic meters of renewable raw materials were used to create the Omega Factory, the new Swatch headquarters and the neighbouring building with a conference hall and exhibition areas―the so-called "Cité du Temps". The highly impressive shell of the new Swatch headquarters with its organic shape and scale-like structure that is reminiscent of the body of a snake, consists of 7,700 timber elements. Each one was prefabricated to precise dimensions to enable quick and problem-free assembly on location. The wooden grid construction is filled with different honeycomb forms―the "scales" act partly as window elements, partly as solar panels or acoustic elements and also function as air-filled honeycombs for cooling and heating purposes. They support the sustainability of the architecture, ensure low energy consumption of the building and contribute to a pleasant working atmosphere. The open plan structure of the three office floors below the organically shaped shell is also designed to promote good communication between the employees.

Glare-free general lighting discreetly integrated into the architecture:
cardanically adjustable Gimbal recessed floodlights from ERCO

"The snake-like Swatch building is illuminated both functionally in line with its various uses, and also with architectural accents," explains lighting designer Roland Block, the project manager at Reflexion AG. "The lighting concept is integrated into the architecture as discreetly and unobtrusively as possible in order to enhance it to its best advantage." Glare-free general lighting with a warm white 3000K color was particularly important to the lighting designers.

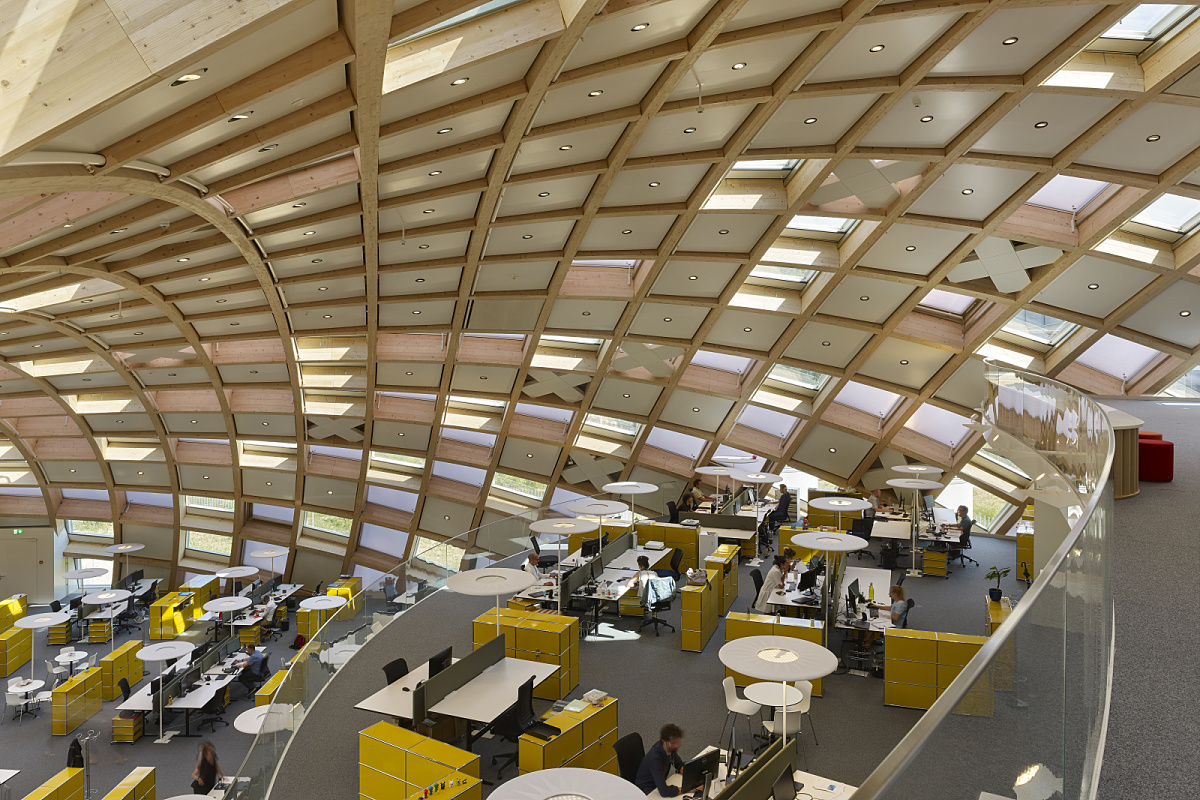

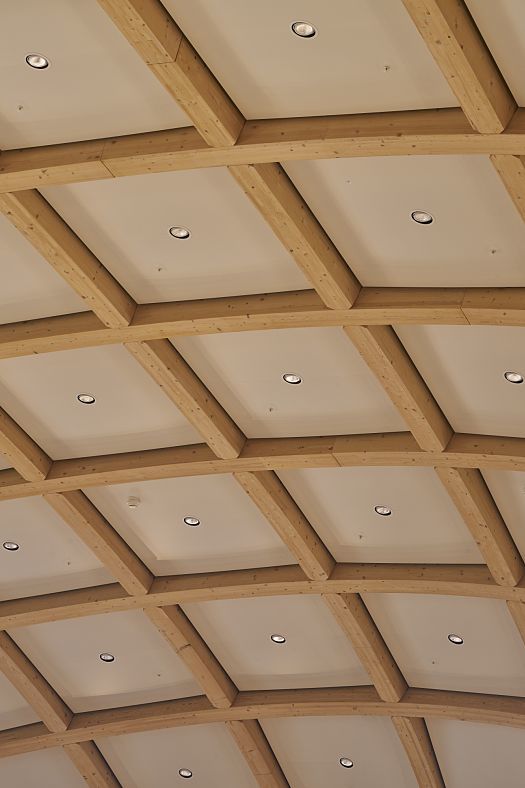

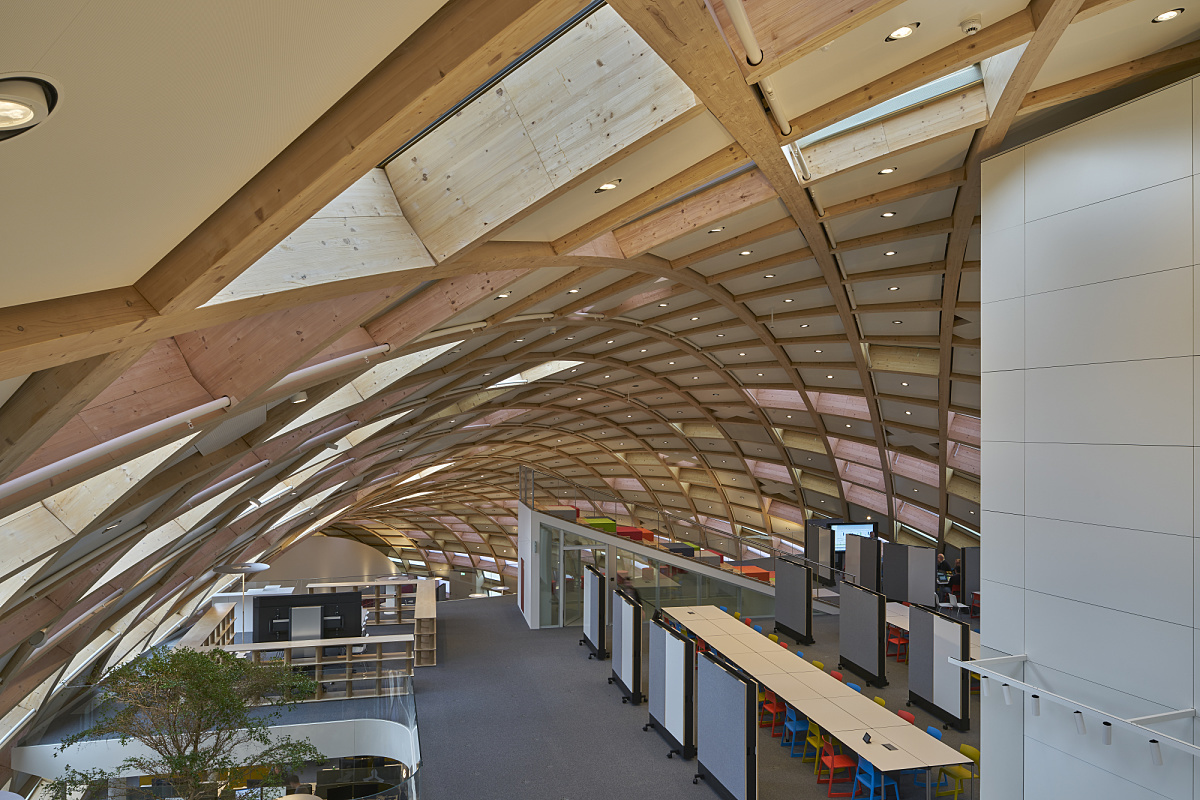

For this purpose recessed floodlights were installed, akin to light points, in the center of the wooden grid construction's honeycomb units. The housing color of the recessed Gimbal floodlights was matched to the color of the ceiling honeycombs as part of the „ERCO individual" service. In addition, all luminaires were fitted with a special plug connection that could be quickly and simply plugged into the flat ribbon cables laid in the ceiling structure.

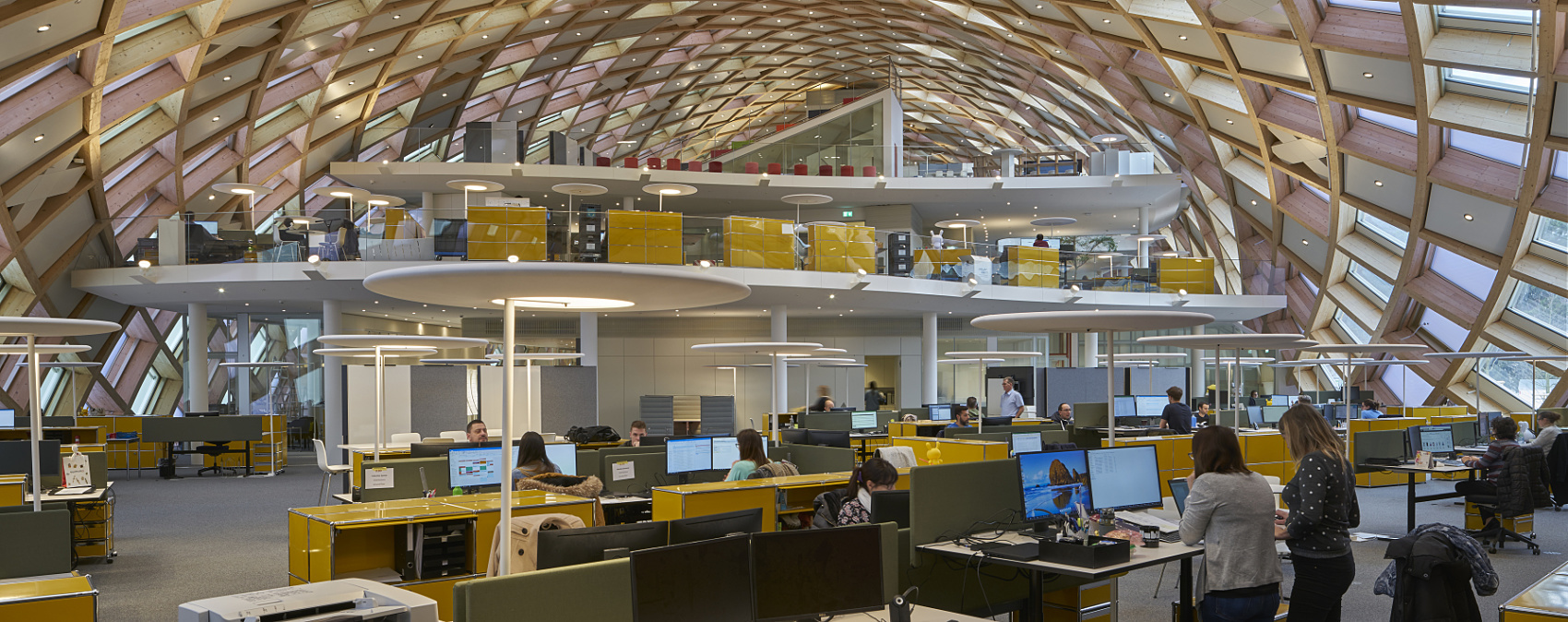

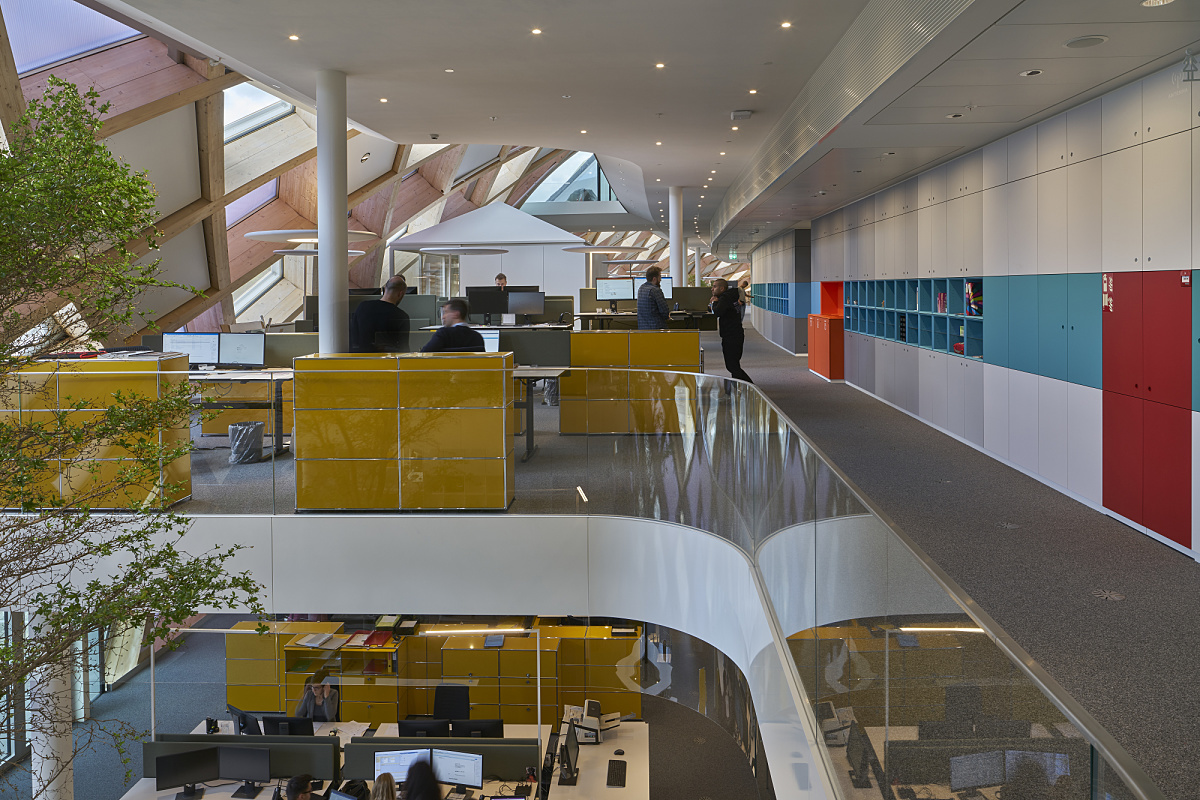

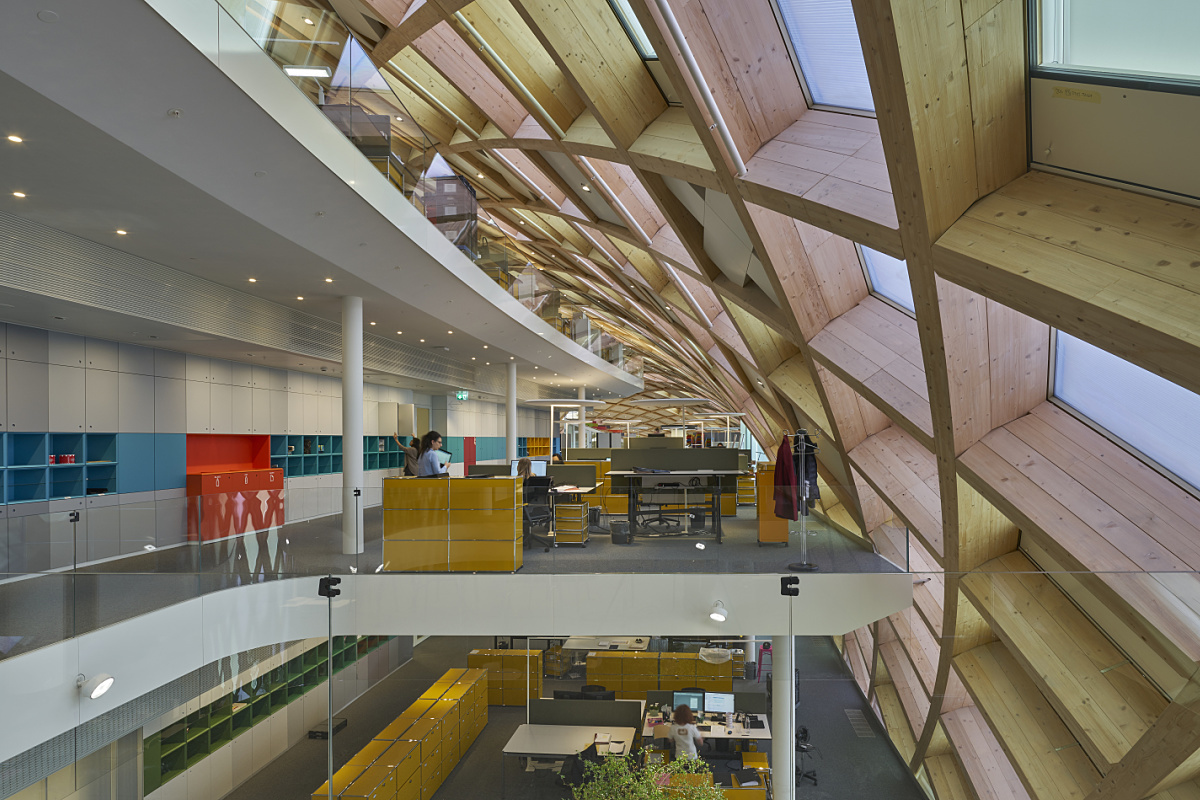

Gimbal's cardanic swivel mechanism enables its light beams to be precisely aligned to the curved shell of the building. The glare-free general lighting of the office floors, adapted via DALI to the specific daylight situation, is supplemented by indirect illumination of the building shell with Parscan spotlights and wide flood distribution (approx. 50°).

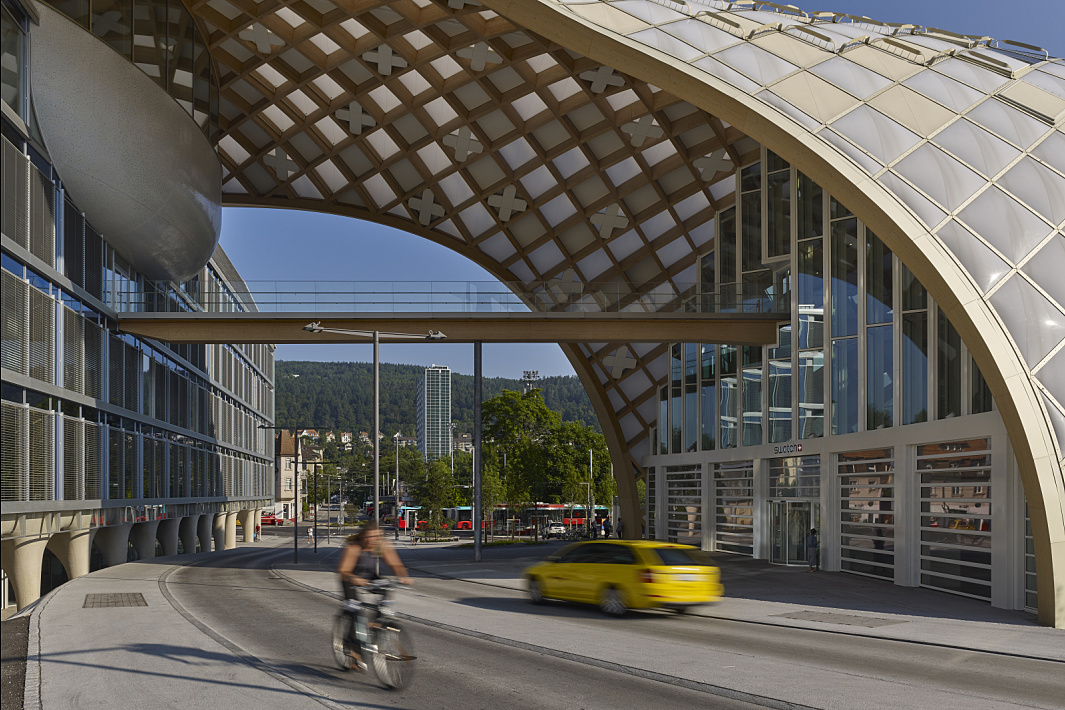

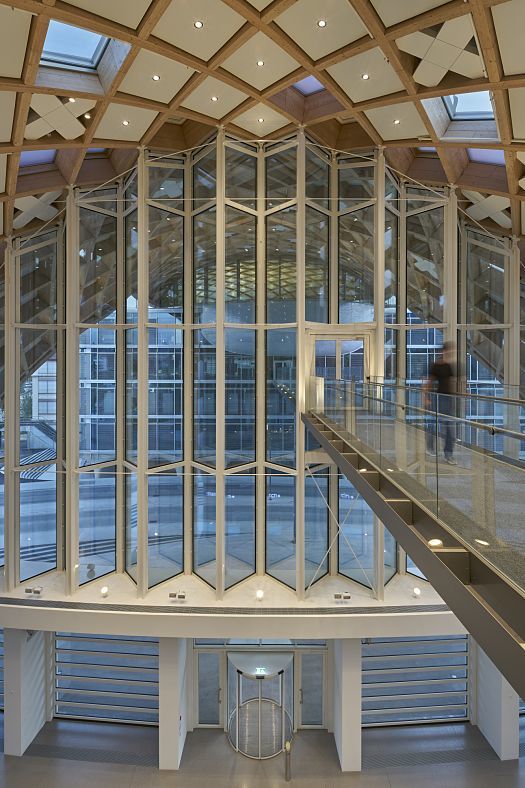

A pedestrian bridge connects the two buildings at the point where the organically shaped shell of the Swatch headquarters docks onto the cuboid Cité du Temps construction. Parscan spotlights in the interior and Kona projectors in the exterior zones create spectacular effect lighting for the architecture.

Accentuated lighting of the exhibits in the Swatch and Omega Museum of the Cité du Temps: ERCO Parscan spotlights

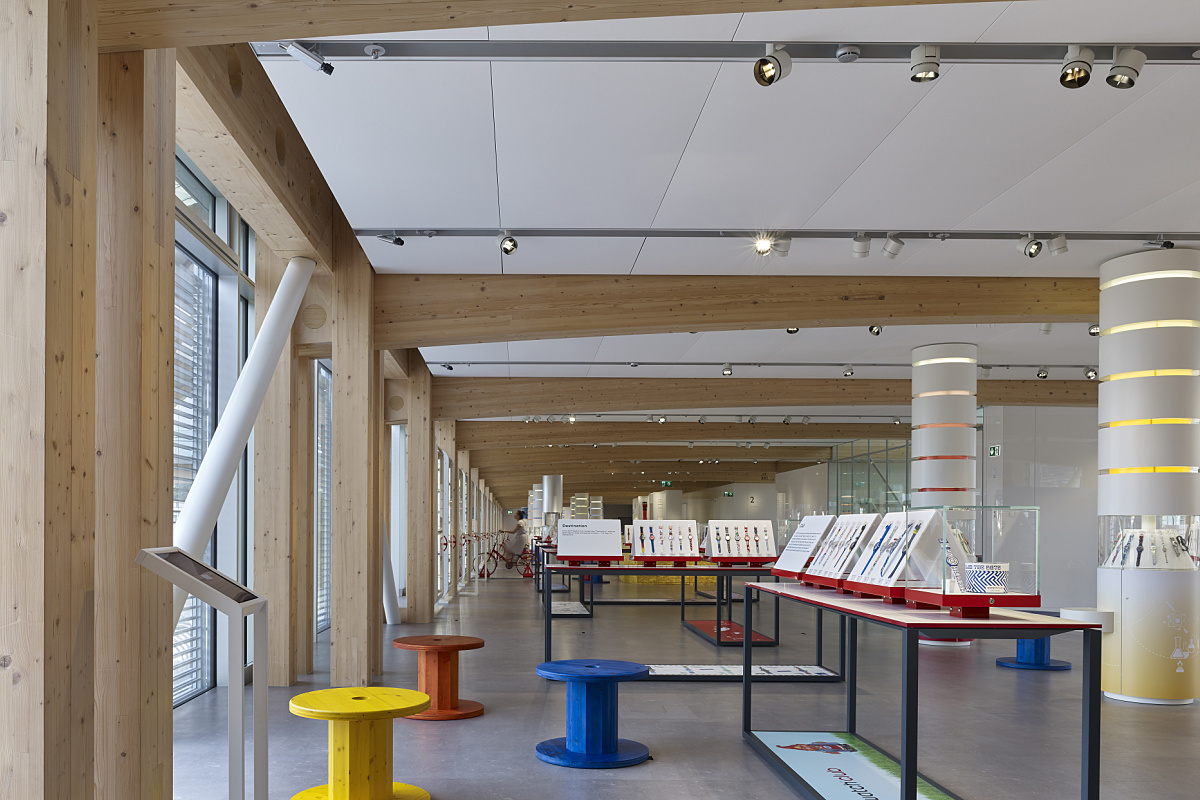

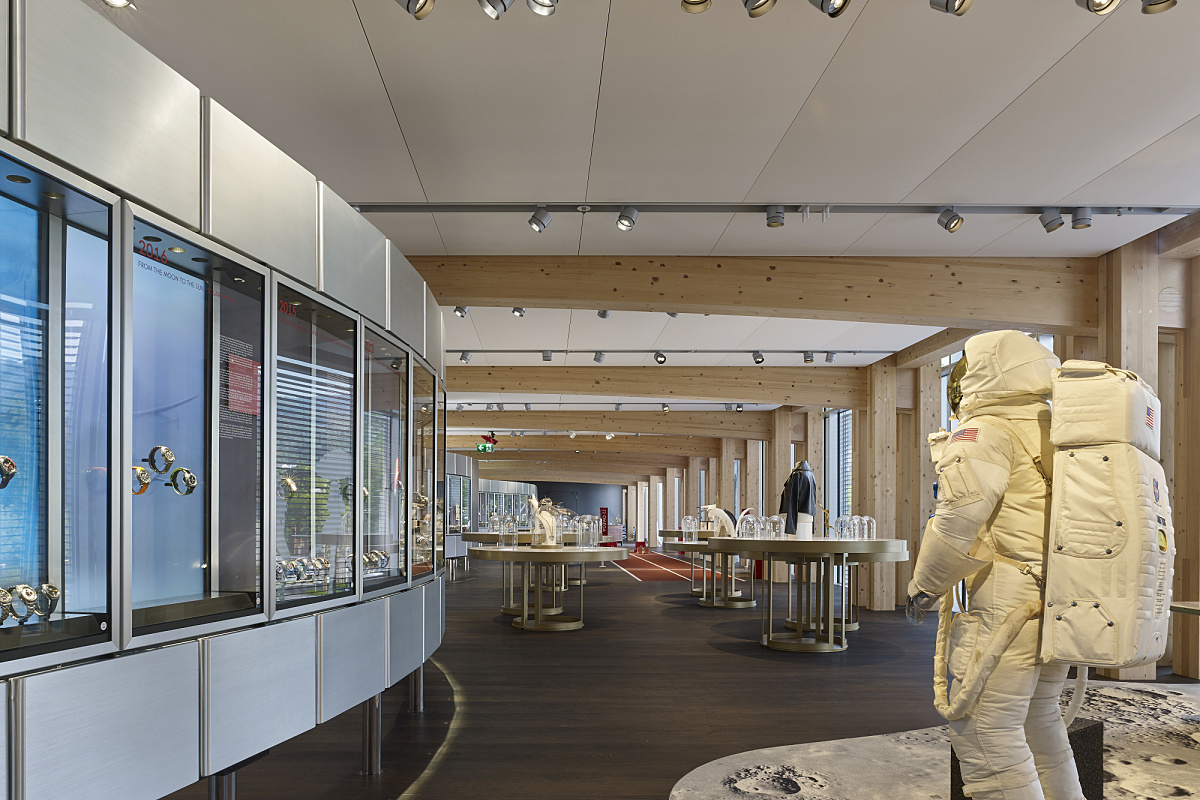

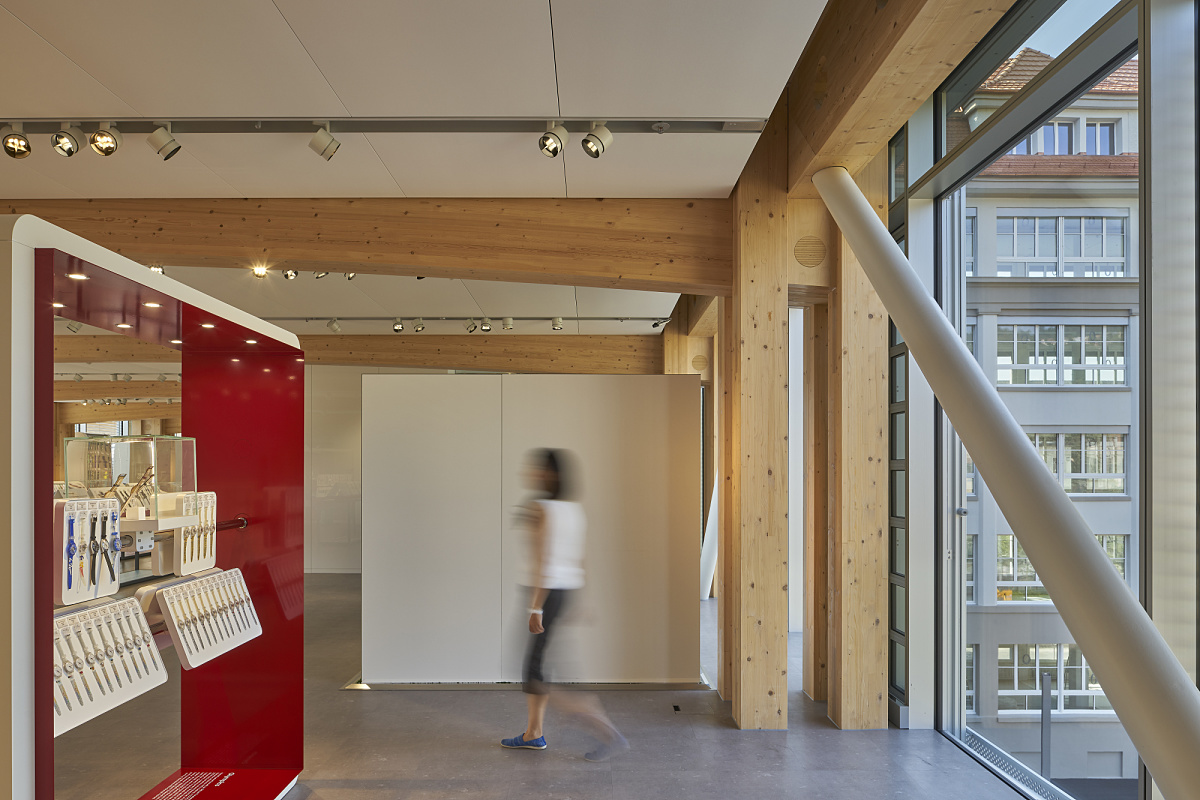

The lighting designers opted for exhibition lighting using a track infrastructure in the Swatch Museum and Omega Museum, each occupying one floor of the Cité du Temps building. Parscan spotlights with 12W LED modules illuminate the exhibits. According to the situation, the luminaires are equipped with interchangeable spot (approx. 15°) and flood (approx. 30°) Spherolit lenses. Specific timepiece models and details are highlighted with narrow spot distribution (approx. 6°). "For the lighting in the exhibition areas we specified a warm white 3000K color as the primary light source in order to optimally render the colors of the exhibits, but also the timber structure of the architecture," says lighting designer Roland Block. "The exhibition planners from tokyoblue GmbH also partially use accents in a 4000K neutral white light color." This allows the various materials of the valuable watches, such as different shades of gold, to be ideally accentuated.
