Tailor-made ERCO lighting solutions for an iconic building:

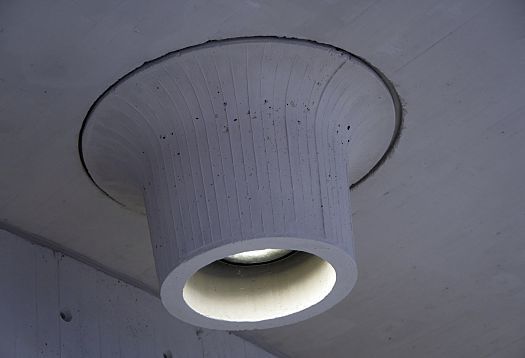

Fluorescent lamps in distinctive conical concrete bodies on the undersides of the ceilings were originally used to illuminate the outdoor space between the small theatre and large theatre. These 'concrete volcanoes' were preserved during refurbishment of the Schauspielhaus as a listed building, but were equipped with state of the art lighting technology: based on Kona projectors for outdoor applications, customized lighting solutions (DALI control, 55W LED) were developed as part of the 'ERCO individual' service, with spot distribution directing light onto the floor and creating grazing light to illuminate the walls of the sculptural concrete structures.

ERCO individual: innovative lighting solutions within a listed building

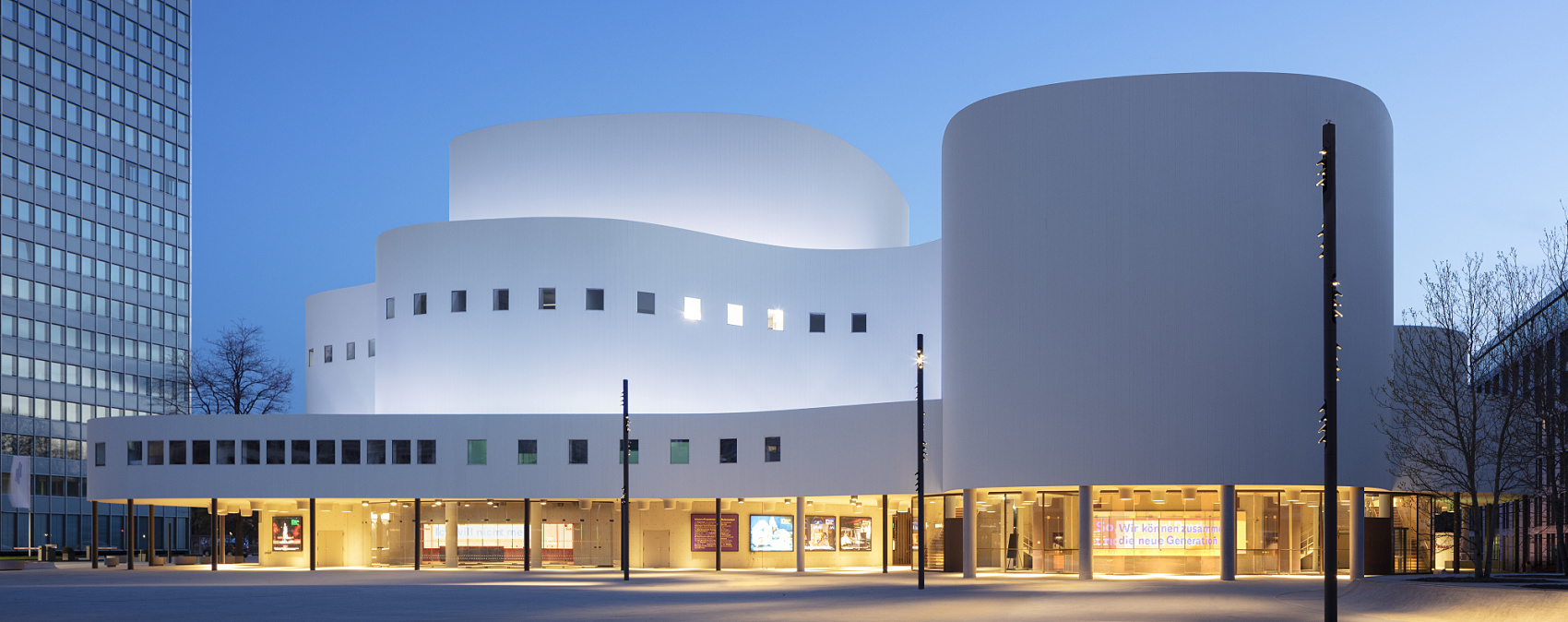

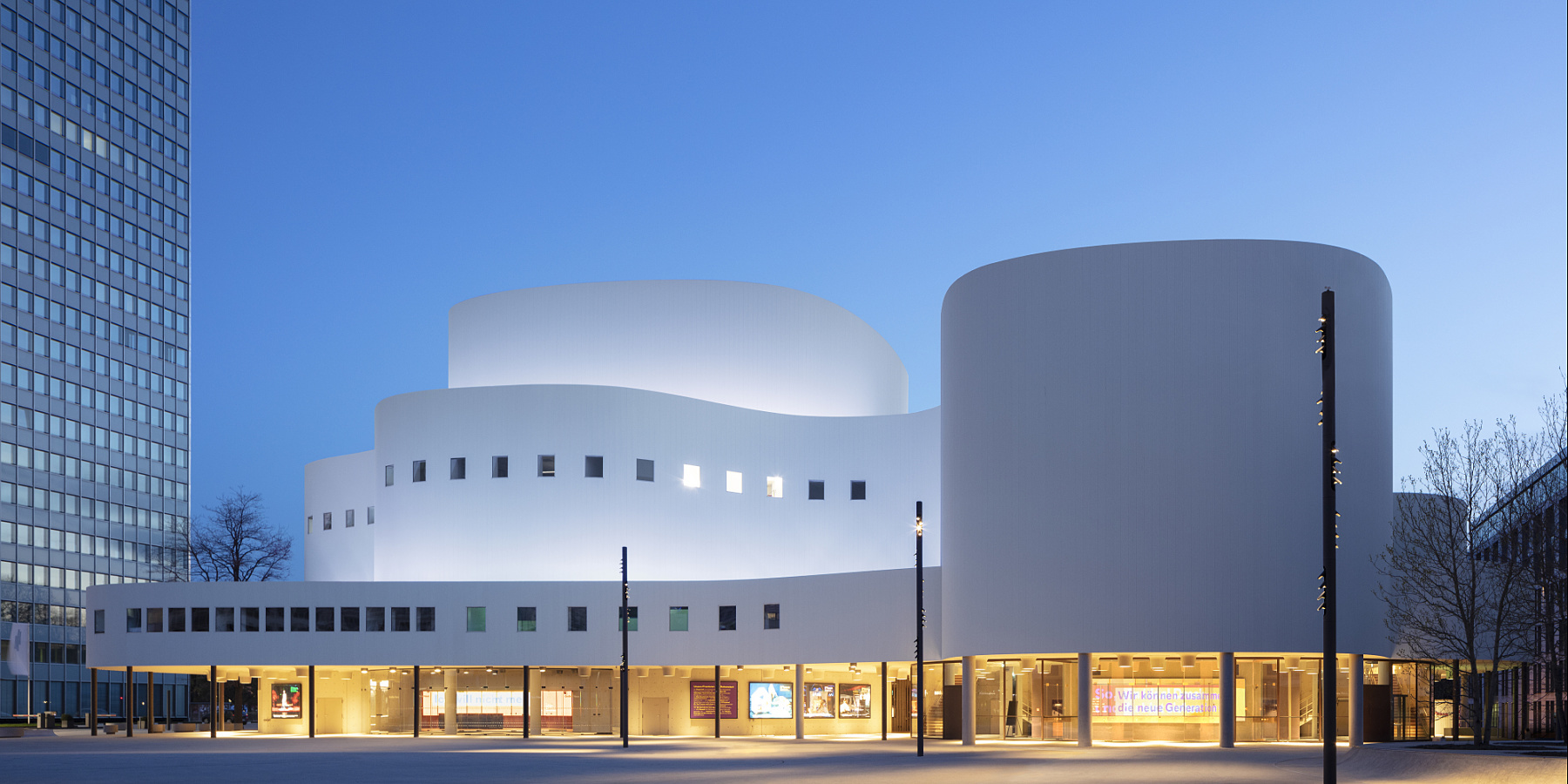

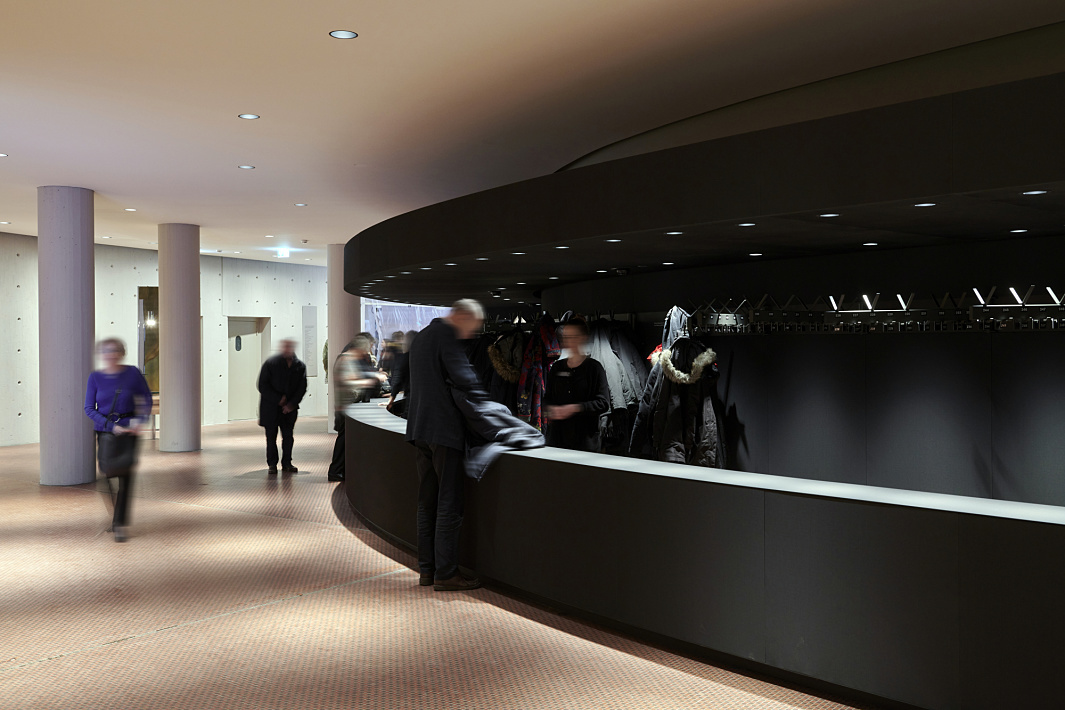

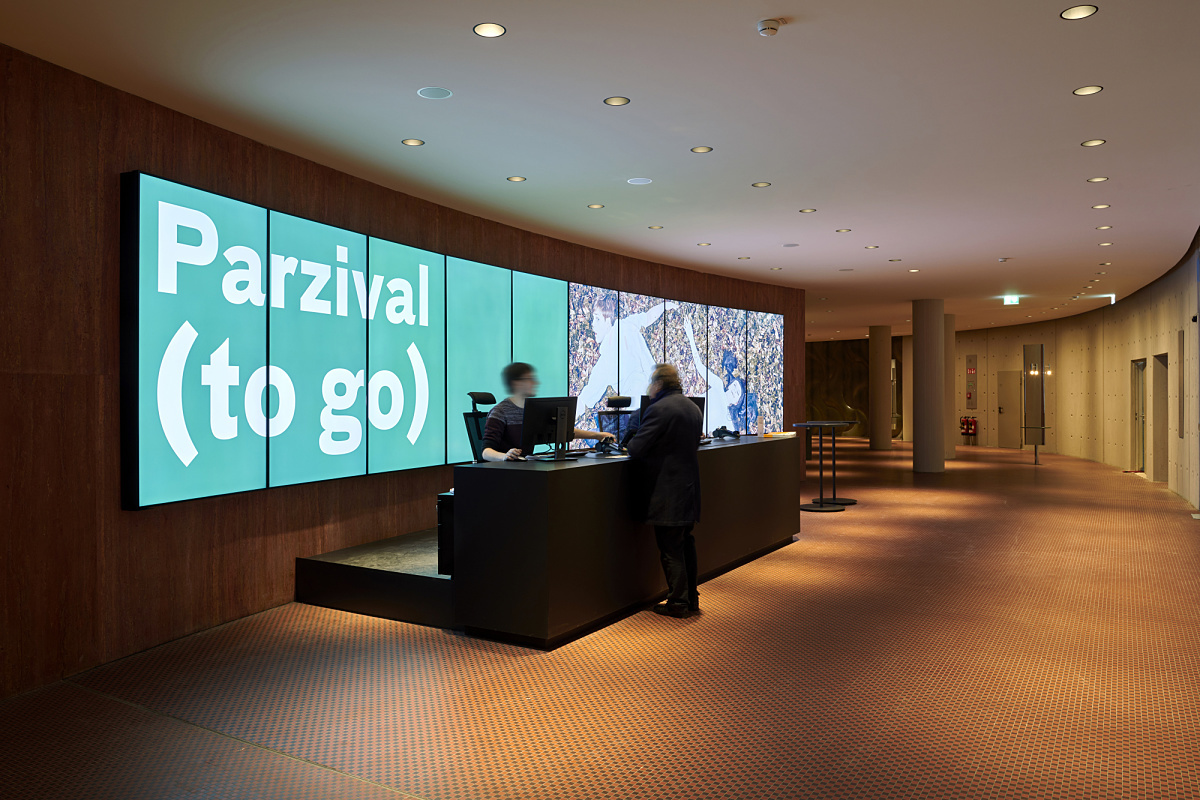

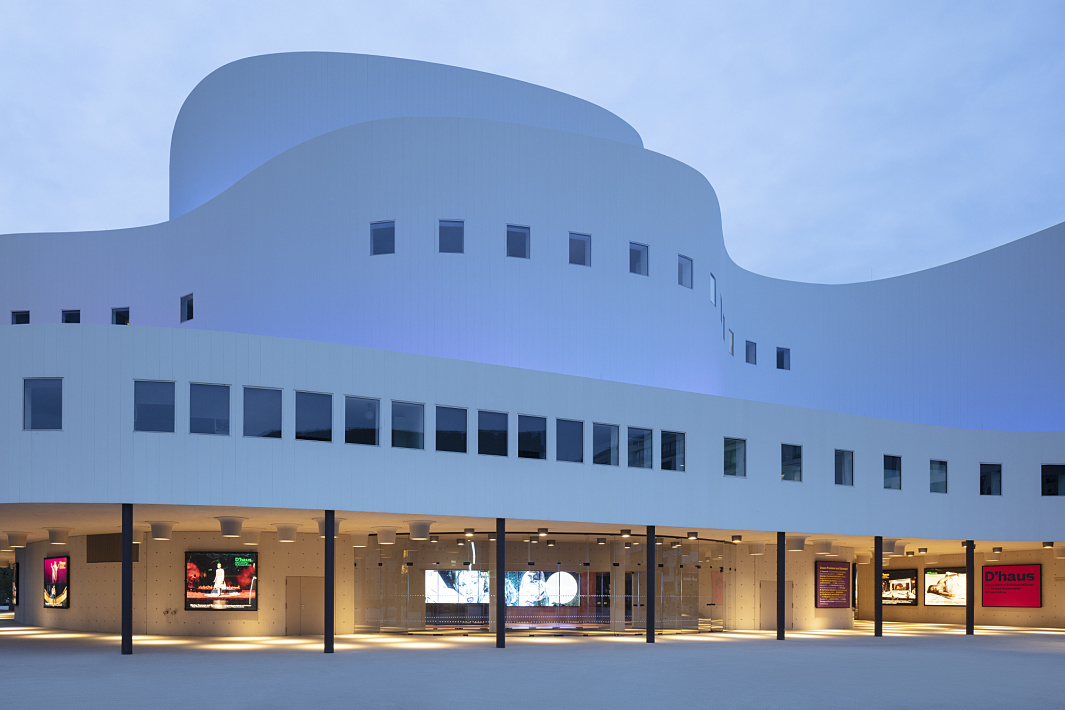

An essential aspect for the architectural concept of the reconstruction was the (re)establishment of visual references between the urban space and the Schauspielhaus. In consultation with the monument protection authorities the entrance to the large theatre was designed much more openly and transparently. The tinted panes of the facade were replaced by clear glass. The lighting ambience of the new entrance area is now inviting and at the same time festive: in the evening hours the new lighting creates a radiant warm light that is visible from the outside.

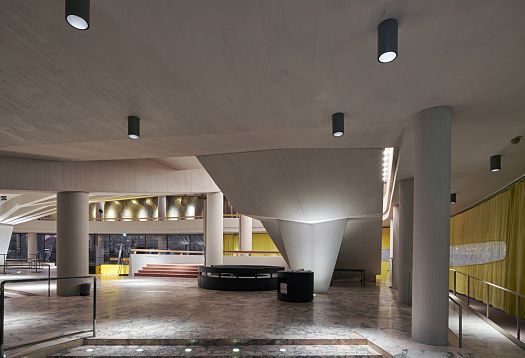

All relighting implemented LED lighting tools with a warm white light color of 3000K. In addition, no reflections on the fenestration interfere with the view from inside to outside into the urban space or the garden to the rear of the building. For this purpose, cylindrical LED surface-mounted luminaires (24W LED with DALI control) were installed along the inside glass facade of the foyer featuring a black anti-glare cone and especially narrow beam angles, made possible via the 'ERCO individual' service.

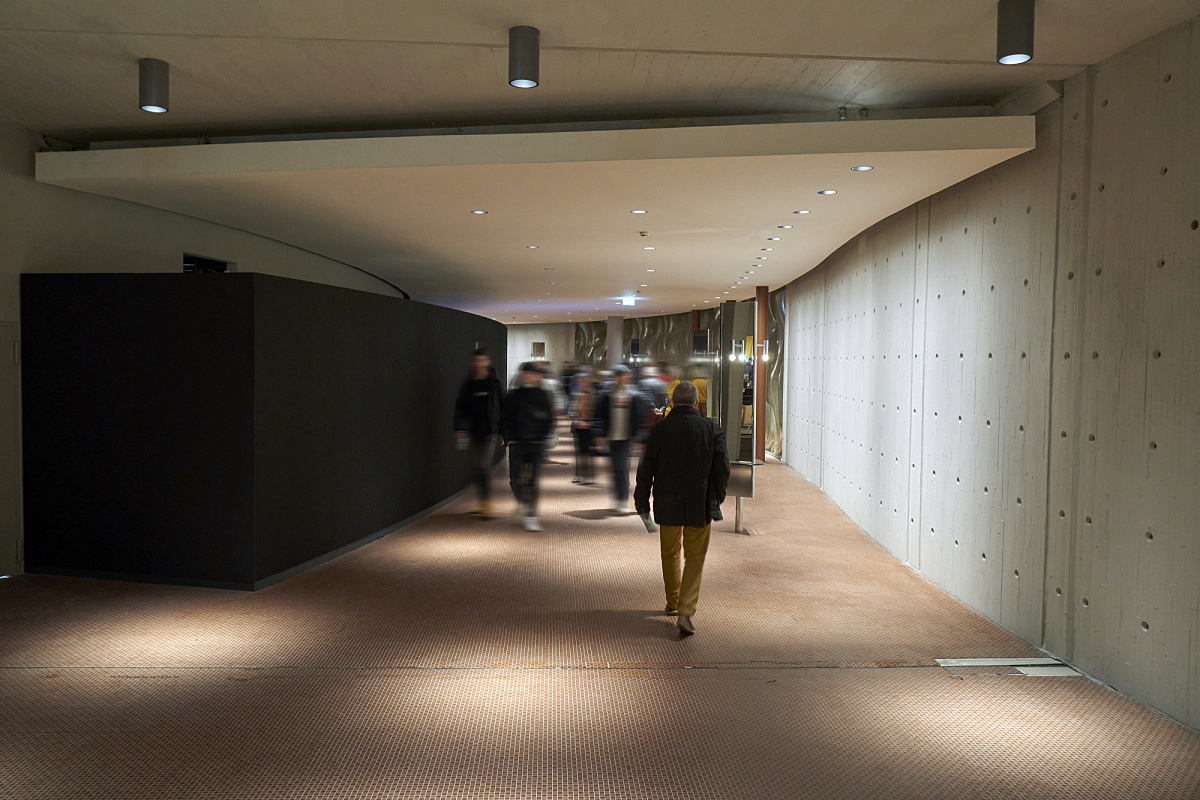

In the walkway connecting the new entrance area with the large and prestigious foyer, the existing lighting concept was optimized with LED recessed luminaires (24W LED, DALI control): "We left the position of the downlights more or less as specified in the original concept from 1970," says lighting designer Clemens Tropp.

"Using the new luminaires with spot distribution developed together with the 'ERCO individual' team, we deliberately created islands of light that set highlights on the floor and also bring out the materiality of the tile mosaics more emphatically."

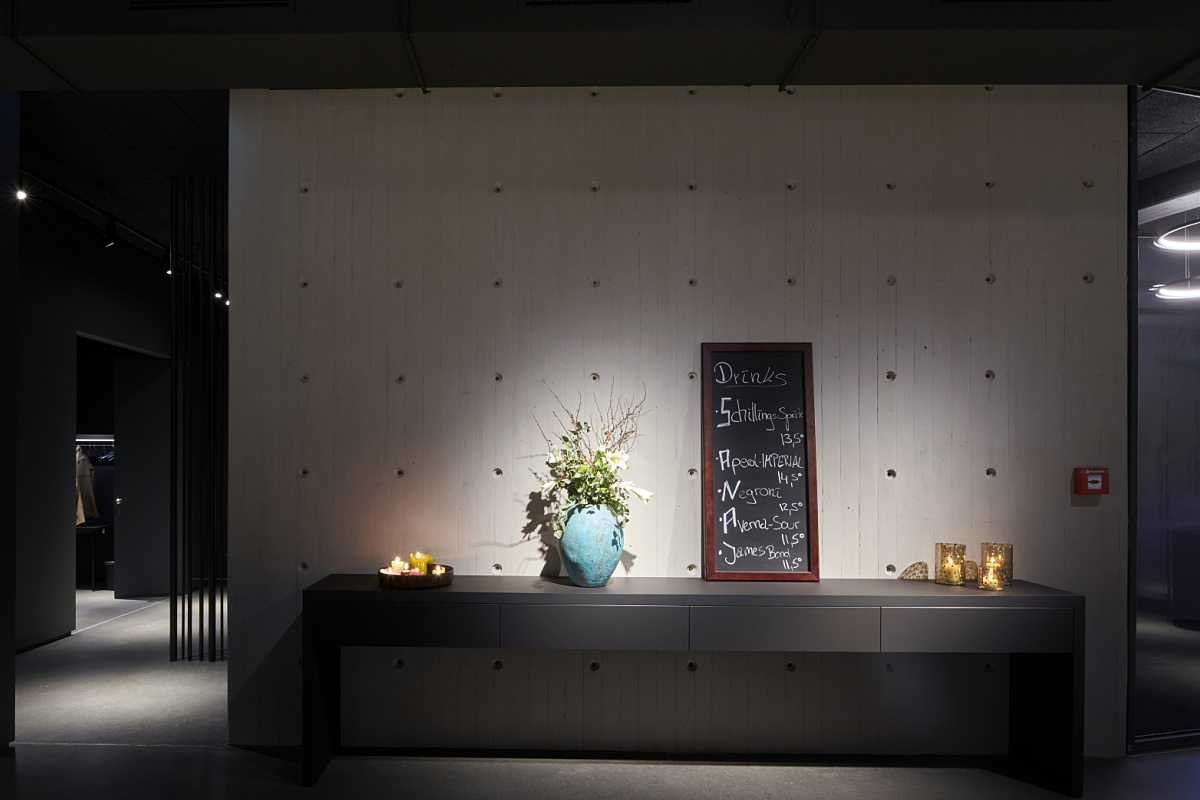

New wallwashers with adjustable light emission optimally display the elaborately restored exposed concrete walls of the walkway. All the lighting in the foyer upgraded to energy-saving, long-life and maintenance-free LED lighting tools is flexibly controlled via DALI. "Various lighting scenes for the different uses of the foyer, for example reception, intermission and reading, have been pre-programmed and can be called up as required," explains lighting designer Clemens Tropp.

Displayed as a highlight of the architecture: the central support of the large foyer

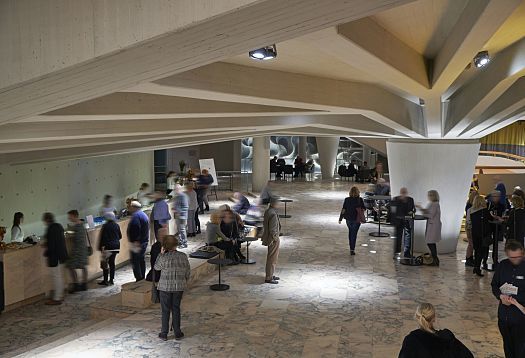

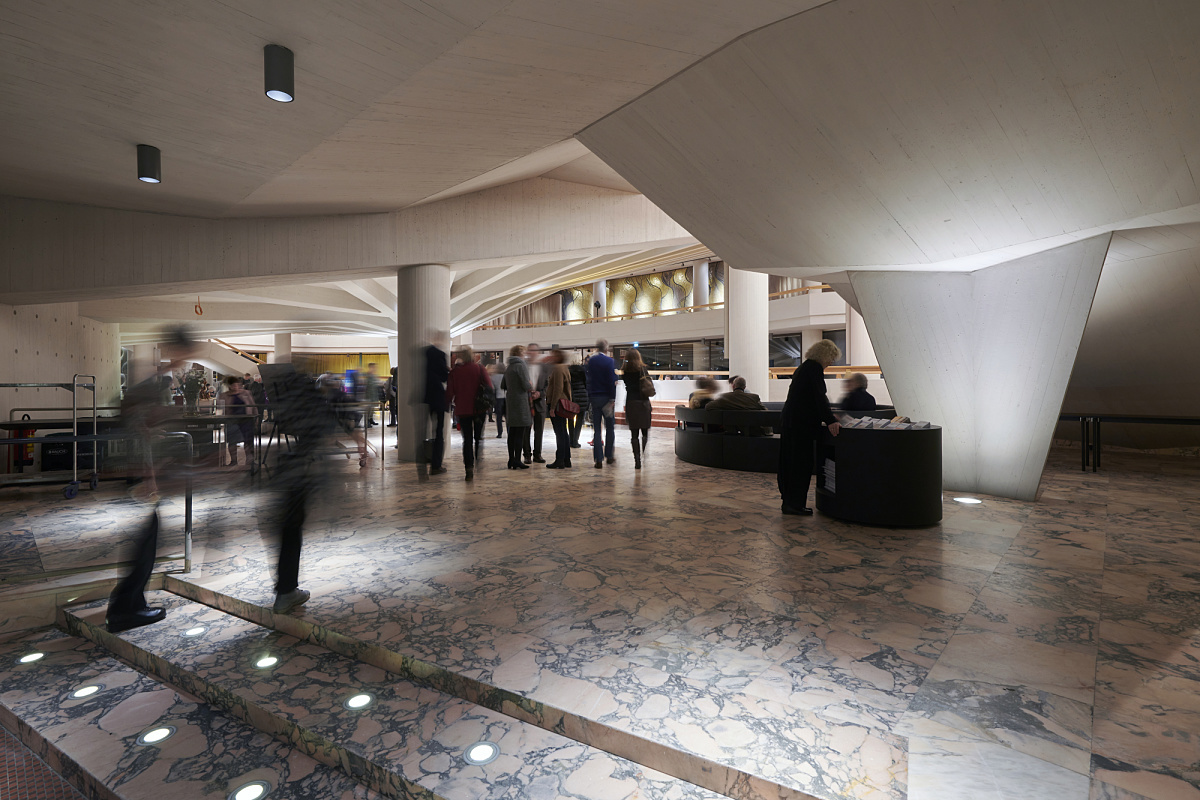

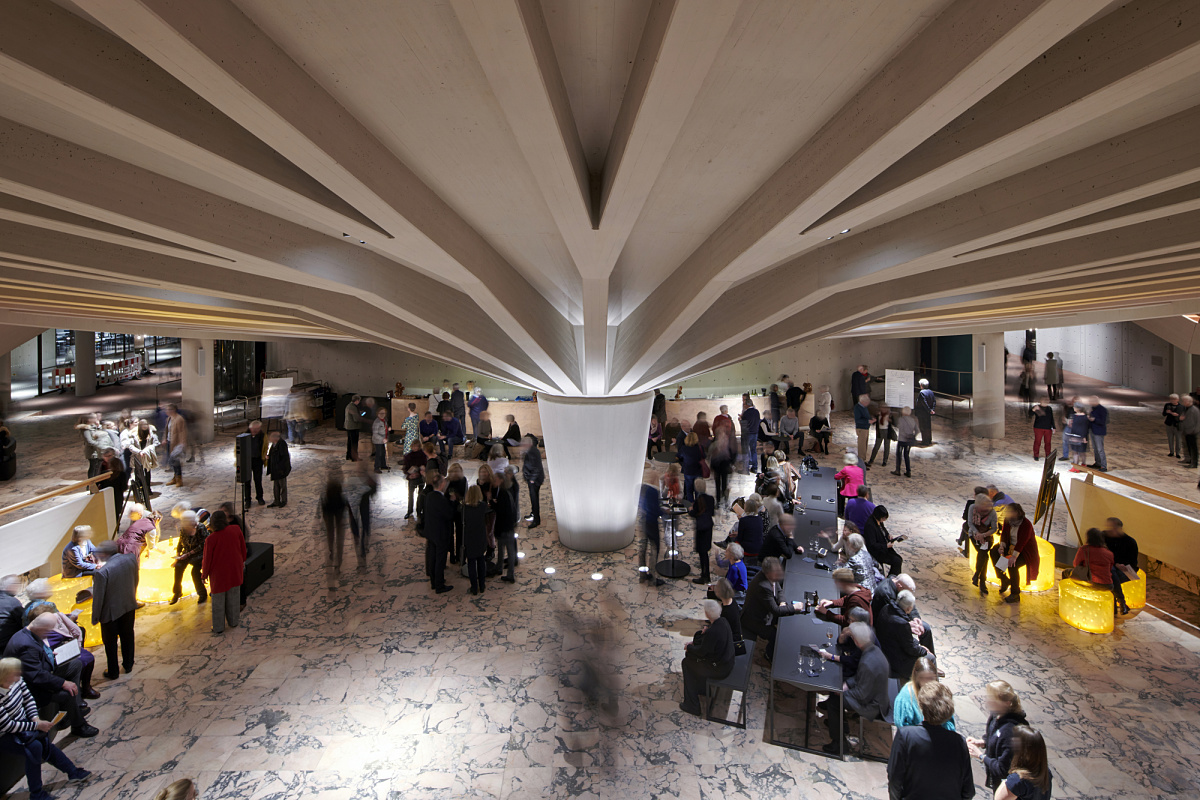

Bernhard Pfau designed the large foyer around a massive, downwardly tapering column that supports a total of 23 radially running reinforced concrete beams up to 15 meters long. As part of the refurbishment project this essential architectural element was illuminated in a particularly spectacular way. Tesis ground-recessed luminaires were modified so that they could be installed in the existing positions around the support. They illuminate the sculptural support and the ribbed structure of the ceiling soffit with a precisely defined progression from bottom to top and from center to the outside.

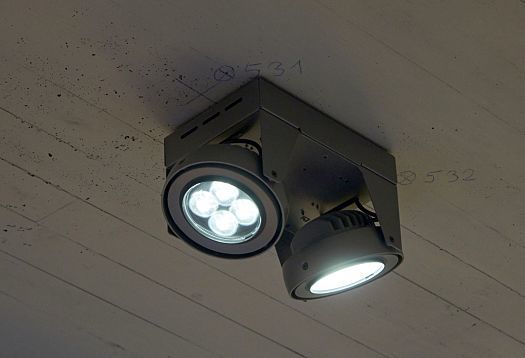

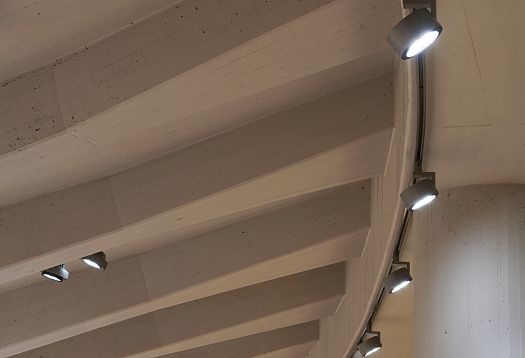

Gimbal surface-mounted luminaires (DALI control, 2x38W LED), also modified as part of the 'ERCO individual' service, were installed in pairs between the beams of the ribbed concrete ceiling; the luminaires have cardanic mechanisms for precise alignment of the light beams.

"This sophisticated custom lighting developed in close cooperation between us, the architects and ERCO lighting specialists creates a fantastic lighting effect," says an enthusiastic Clemens Tropp.

"The concrete beams of the ceiling actually appear to organically grow out of the central support, which now gives the space the grand gesture that Bernhard Pfau intended. This form of lighting also minimizes the innate heaviness of the massive structure."
