Tailored LED lighting for Changi Airport’s ambitious expansion

Customized to cut waste

Together with the many requirements of such a complex public environment, sustainability was therefore a key factor for the lighting system. Lighting designer Philippe Almon of PhA Concepteurs lumiere was keen to eliminate any unnecessary usage of material. The low energy lighting solution therefore comprised highly efficient LED Compar downlights specially modified for the project. Normally recessed, the Compar linear fitting comes with a mounting trim and a clip for easy installation. PhA wanted to reduce material use by removing the trim, which meant devising a new way of attaching it to the ceiling.

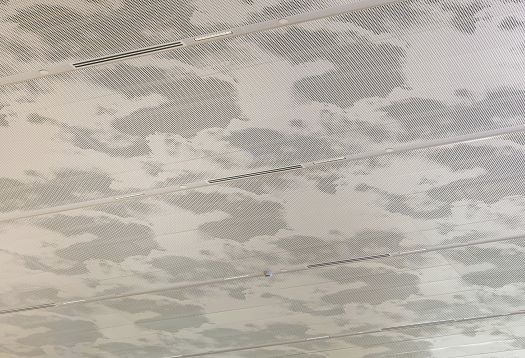

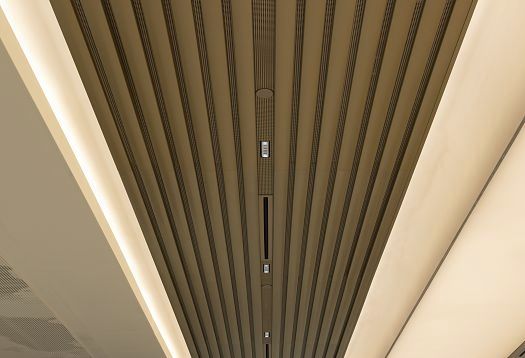

Inspired by Lighting Designer Philippe Almon’s idea, ERCO’s designers drilled a hole in the heat sink to accommodate the hanging system, creating a hook to accommodate the suspended structure. This was done in such a way that it didn’t adversely affect the heat management of the fitting, retained the integrity of the manufacturing guarantee and still met the requirement for easy and fast installation. The suspended ceiling element features carefully positioned linear slots that allow the fitting to sit flush with the surface, seamlessly integrated.

Small but powerful

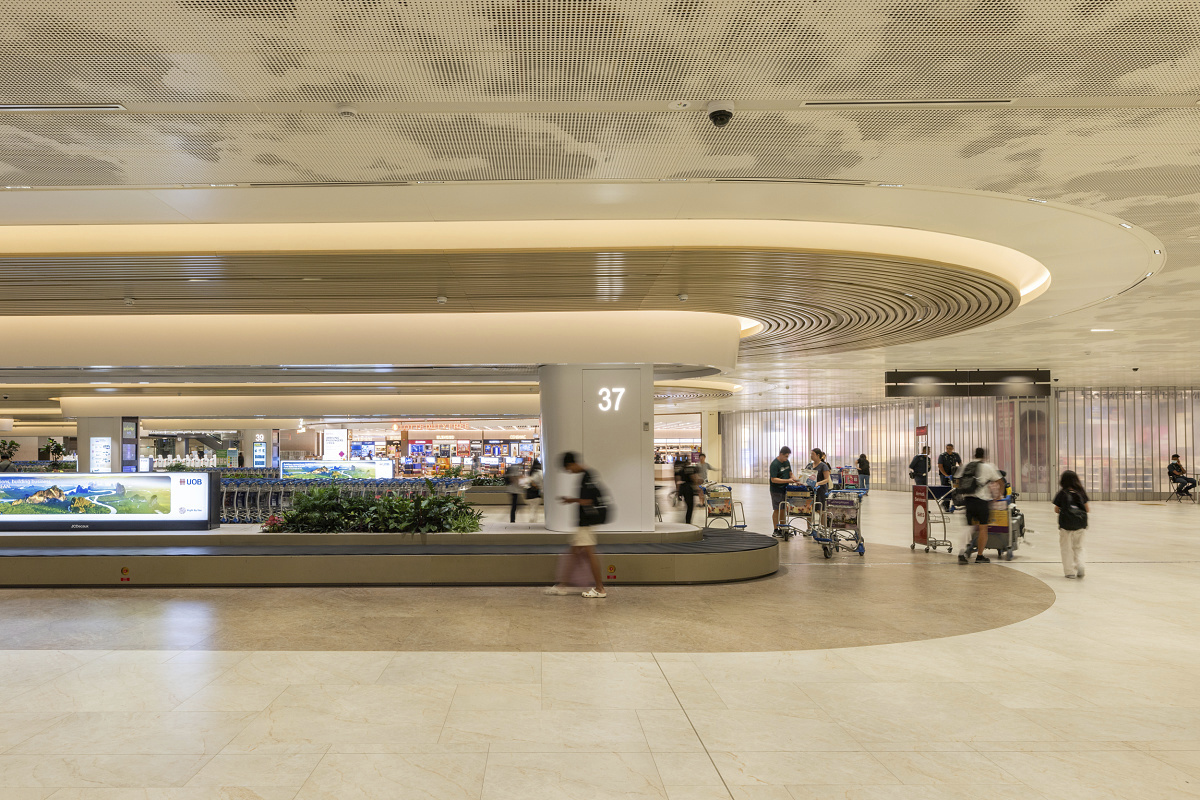

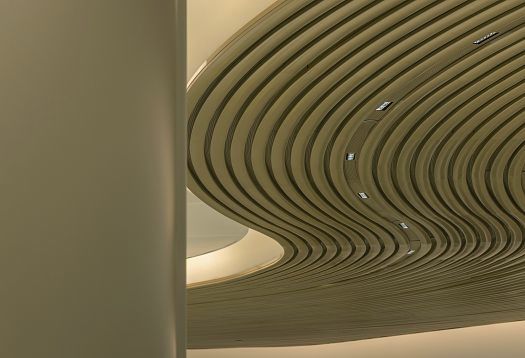

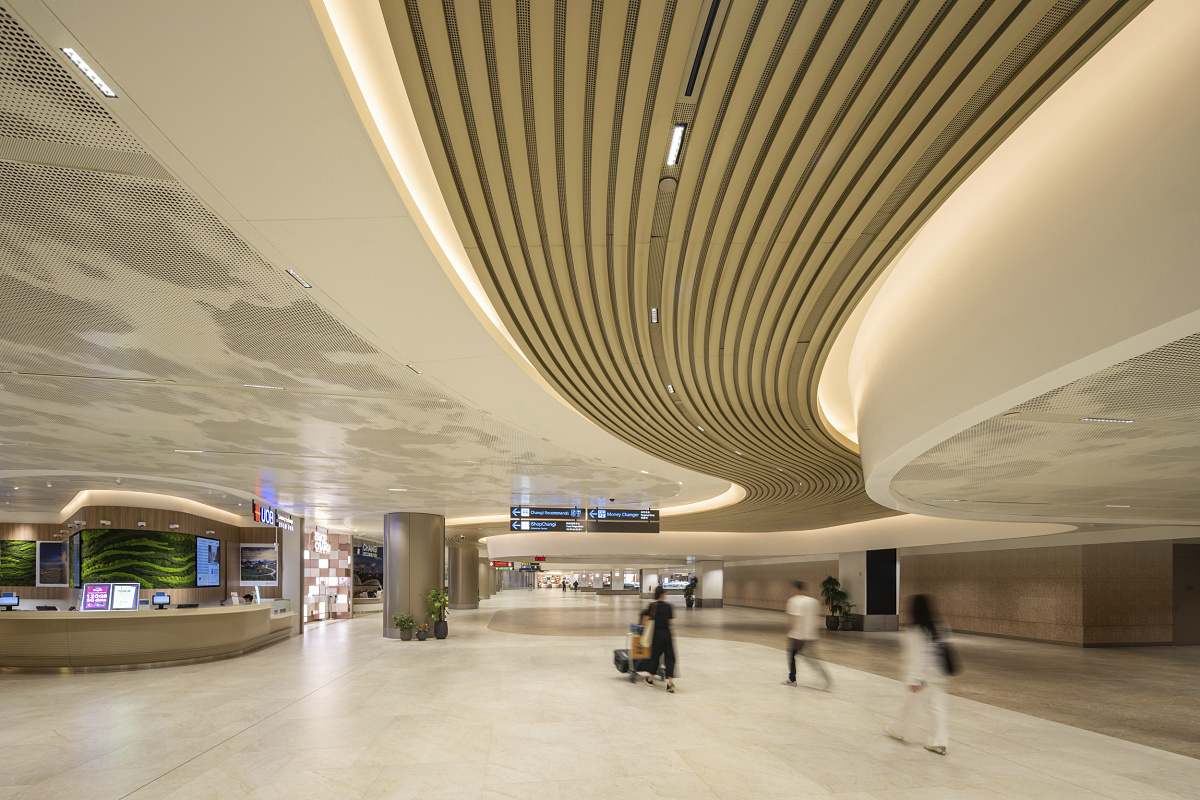

The airport environment involves large spaces and soaring ceilings which require high light levels and even illumination. Balanced with this is the need for both visual and psychological comfort – a glare-free, high quality and calming light. The advantage of the Compar downlight is that while it is a powerful source for high-volume spaces, it is small and discreet, perfectly merging with the architecture. Featuring an anti-dazzle louvre which can be coated in a variety of finishes, it remains an almost invisible light source from most angles. Not only did the luminaires provide double the target light levels on the floor surface but it was achieved with fewer fittings and less wattage than comparable solutions.

Future maintenance and durability of luminaires is a crucial consideration in an airport environment, with 24/7 operation, heavily trafficked spaces and difficult-to-access ceilings. Compar downlights, like ERCO luminaires generally, are technically of a very high standard, designed and manufactured to last for decades. This dramatically reduces the need for maintenance, saving operating costs. ERCO's focus is on long-life luminaires that offer sustainable lighting solutions. With in-house designed and manufactured optics, electronics and heat management, a timeless design and application-oriented light distributions, the Compar downlight incorporates all aspects of the company's ethos of 'lighting durability'.

Special support for individual product solutions

Compar comes with a choice of distributions (from 15° spot to 60° x 80° oval wide flood and wallwash) and extensive options for the individualization of series products. With 'ERCO individual', the company also supports the development of sophisticated special luminaires, according to customers' needs.

The world’s most awarded airport, Changi links Singapore to some 140 cities globally, with over 100 airlines operating more than 6000 weekly flights. The expansion scheme, which took more than three years, also supported additional infrastructure, provided new systems and increased retail and F&B offerings. 'We hope T2 will set a new benchmark for customer service and delight among airports,' said Tan Lye Teck, CAG’s programmer director for the Terminal 2 Expansion Project.
