Beamer

Maximum visual comfort for the highest demands

Beamer projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. The circumstances change? Interchangeable optics including zoom, framing and wallwash adapt to new requirements, and filter and lens accessories serve for fine tuning. Options such as 0-10V, wireless dimming via Casambi Bluetooth, Tunable White and RGBW colors transform smart lighting scenarios into reality.

Special features

  • Tunable white
  • Casambi Bluetooth
  • RGBW

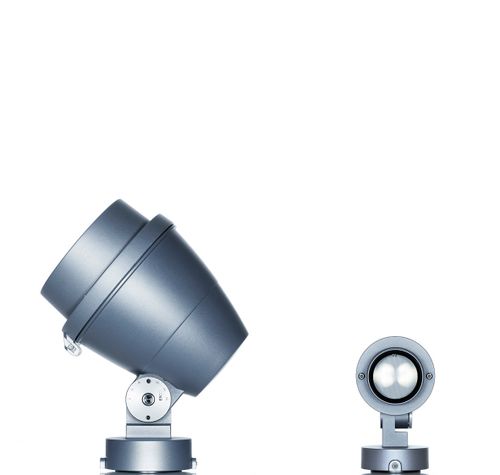

Sizes

S

  • 4"
  • 194 - 1088 lm

M

  • 5"
  • 198 - 1655 lm

L

  • 7"
  • 261 - 2614 lm

Downloads

Highlights of Beamer

Beamer

Because light needs darkness

Beamer

Projectors with darklight lenses

Light only where it is needed. Darklight lenses project crisply defined beams of light with high precision onto the target surface. So darkness remains dark.

  • Dark Sky: Precise light beams without spill light
  • Optical cut-off achieves maximum visual comfort
  • Darklight lens with a magical impression
Beamer

Framing

Facades, lettering or outdoor art? Illuminate with straight edges so that light is only where it should be.

Beamer

Zoom projector

Flexible until the last minute. Zoom optics allow for infinitely adjustable light distributions.

Beamer

Future-proof

Interchangeable lenses allow for new lighting options over and over again.

Beamer

For a world of color

Choose from two light spectra and create 8 more with filters. Or do you opt directly for tunable white and RGBW?

Beamer

Adaptive light

Control your light with the setting of the sun or program various light scenes.

Beamer

Flexible mounting

Whether on the ground, on facades or on high masts: Beamer offers the right mounting options.

Beamer in use

Galleria Giorgio Franchetti alla Ca' d'Oro, Venice. Architecture: Veneto Regional Museums. Lighting design: Studio Pasetti, Treviso. Photography: Marcela Schneider Ferreira.

Galleria Giorgio Franchetti alla Ca' d'Oro, Venice. Architecture: Veneto Regional Museums. Lighting design: Studio Pasetti, Treviso. Photography: Marcela Schneider Ferreira.

Parliament, Stockholm. Photography: Johan Elm.

Parliament, Stockholm. Photography: Johan Elm.

Holmegaard glass vaerk & museum, Copenhagen. Lighting design: Iben Winther Orton, Lightscapes ApS, Fredensborg, Denmark / Carl-Henrik Hansen, Museum Sydøstdanmark. Photography: Tomasz Majewski.

Holmegaard glass vaerk & museum, Copenhagen. Lighting design: Iben Winther Orton, Lightscapes ApS, Fredensborg, Denmark / Carl-Henrik Hansen, Museum Sydøstdanmark. Photography: Tomasz Majewski.

Allow us to tackle your next project together

Select a service:

Request a sample now

Without obligation and free of charge on site!

Would you like a callback?

Our lighting advisors are available to help you at any time!

Lighting effect of Beamer

Floodlights
Contour spotlights
Projectors
Lens wallwashers
Zoom projectors

Do you need help selecting the light distribution?

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Zoom projectors

Manually adjustable round or oval light distribution for accenting to floodlighting.

Floodlights

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Contour spotlights

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Projectors

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Lens wallwashers

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Zoom projectors

Zoom projectors

Manually adjustable round or oval light distribution for accenting to floodlighting.

Floodlights

Lighting technology

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Extra wide flood

Extra wide flood

Oval wide flood

Oval wide flood

Oval flood

Oval flood

Wide flood

Wide flood

Luminaire arrangement

Beamer projectors ensure uniform floodlighting of wall surfaces or trees. The ideal angle of tilt (α) for this is approximately 30°.

Arrangement: α = 30°

Contour spotlights

Lighting technology

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Light source
19.9 W - 36.5 W
2503 lm - 3882 lm

Light distributions

Wide framing

Wide framing

Narrow framing

Narrow framing

Luminaire arrangement

Contour spotlights allow for freely adjustable light beams to illuminate facades, logos or paintings in outdoor areas with sharp contours and without color gradients. Select narrow framing to accurately illuminate small areas from a long distance and wide framing to accurately illuminate large areas from a short distance.

Projectors

Lighting technology

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2 W - 36.5 W
239 lm - 3882 lm

Light distributions

Narrow spot

Narrow spot

Spot

Spot

Flood

Flood

Luminaire arrangement

An angle of inclination (α) of approx. 30° is suitable for accent lighting with Beamer projectors. This emphasizes the three-dimensionality of architectural details, sculptures and trees without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°

Lens wallwashers

Lighting technology

Asymmetrical light distribution for highly uniform wallwashing.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Wallwash

Wallwash

Luminaire arrangement

Outdoors, uniform vertical lighting defines spatial borders. The distance to the wall (a) of Beamer wallwashers should be around one third of the wall height (h) for this purpose. This results in an angle of tilt (γ) of around 55°.

Arrangement: a = 1/3 x h or γ = 55°

For good longitudinal uniformity, the luminaire spacing (d) of Beamer wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.

Zoom projectors

Lighting technology

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Zoom oval

Zoom oval

Zoom spot

Zoom spot

Luminaire arrangement

Zoom projectors feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller objects can be accentuated effectively at an inclination angle (α) of approximately 30°. Oval zoom is suitable for elongated objects. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Configuration of Beamer

Get an overview of the product features of Beamer here

Diameter

Connected load

Luminous flux of the luminaire

Light distributions

Tunable white

RGBW

Diameter S / 4"

Connected load 4.1 W - 16.9 W

Luminous flux of the luminaire 194 lm - 1088 lm

Light distributions 10

Tunable white -

RGBW -

Diameter M / 5"

Connected load 4.1 W - 26 W

Luminous flux of the luminaire 198 lm - 1655 lm

Light distributions 10

Tunable white

RGBW

Diameter L / 7"

Connected load 11 W - 36.5 W

Luminous flux of the luminaire 261 lm - 2614 lm

Light distributions 12

Tunable white

RGBW

Inquire now: Beamer for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Inquire now: Beamer for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Projector with darklight lenses

Because light needs darkness


The darklight lens not only creates a magical impression with just one light point. As precisely as a camera lens captures light, so too does Beamer project light with the darklight lens. ERCO thus sets standards in outdoor lighting. The interchangeable darklight lens offers lighting designers maximum flexibility and protects the environment from light pollution.

Beamer

The contour projector for magical outdoor lighting effects

Framing par excellence

Do you want to illuminate rectangular facades, logos, or paintings in outdoor areas with straight edges and without color gradients? Beamer contour projectors produce fantastic edge-to-edge sharpness and are infinitely adjustable.

For short and long lighting distances

For short and long lighting distances

The narrow framing distribution is ideally suited for small areas and long lighting distances. Wide framing is suitable for large areas from short lighting distances.

Framing even in tunable white and RGBW

Framing even in tunable white and RGBW

Adjust the light spectrum ideally to the target area with tunable white. Create colorful scenographic lighting concepts with RGBW. With Casambi Bluetooth, control all of this simply by swiping on your smartphone.

Lightproof housing

Lightproof housing

Framing only has a magical effect when the light source remains almost invisible and the target area has the appearance of radiating from within. Beamer projectors have a closed, lightproof housing. This avoids distracting light reflections and the luminaires themselves remain concealed.

Zoom projector

One profile, many possibilities

Is the mounting location of your luminaires not ideal for your lighting task? Zoom projectors solve this challenge because the optics allow an infinitely adjustable beam angle. This means that you always illuminate precisely, regardless of the location of the luminaire.
Rotationally symmetric light distribution is available by zooming from spot to wide flood (15° - 65°). For small to large accents in outdoor spaces. An axially symmetrical variant (approx. 20° x 70° - 75° x 60°) allows for adjustment of the oval light distribution. This means that different lighting tasks can be fulfilled with just one luminaire and the light never misses its target area.

Beamer

Light distributions for outdoor areas

Future-proof with interchangeable lenses

Whether uniformly illuminating facades or accentuating sculptures with rich contrast: Beamer offers 12 different light distributions, many of which can be changed at a later date to suit any project.

  • Light distributions from narrow spot to wallwash
  • Adjustable zoom and contour projectors available
  • Easy to change light distribution

For a world of color

Suitable light spectra for your outdoor project


Beamer offers two different light spectra with 3000K or 4000K as well as color rendering up to CRI 92. Using conversion filters, you can create an additional 8 spectra from 3000K and 4000K for each application.


Perfect for seasonal festivities or corporate lighting: RGBW projectors allow for colored lighting concepts with millions of colors. Thanks to white LEDs in the luminaire, lighting concepts with white light colors are also possible.


Beamer offers two different light spectra with 3000K or 4000K as well as color rendering up to CRI 92. Using conversion filters, you can create an additional 8 spectra from 3000K and 4000K for each application.

Adaptive light

Smart lighting control for outdoor areas


With Casambi Bluetooth, you can integrate Beamer into switchable systems without additional wiring and thus control it wirelessly. In addition, proven control methods such as 0-10V are also available.


Dim light simply by swiping on your smartphone or tablet. Use Casambi Bluetooth to control the brightness of individual luminaires or even several luminaire groups for illuminating architecture at night.


Light scenes allow you to adjust illuminance to the ambient brightness according to the specific time, thus saving valuable resources.

Your advantages with Casambi Bluetooth

Your advantages with Casambi Bluetooth

  • Luminaires with Casambi Bluetooth expand switchable systems with dimming and control functions
  • Program time-dependent light scenes conveniently via app for resource-saving lighting concepts
  • Light scenes are stored in the luminaire and operate autonomously
Beamer

Extensive mounting options for the outdoor area

  • Can be mounted to masts, cantilever arms, the ground, or walls
  • Beamer available with rotatable 1/2” I.P.S nipple for on-site threaded holes
  • Beamer with rotatable mounting plate for mounting on load-bearing accessories such as anchorage units, cantilever arms, and concrete anchors
  • Beamer with rotatable mounting plate for mounting on load-bearing accessories such as anchorage units, cantilever arms, and concrete anchors

Spotlights with a 1/2” I.P.S nipple can be mounted on existing threaded holes - perfect for installation on high masts.

Highlights of Beamer

Beamer

Because light needs darkness

Beamer

Projectors with darklight lenses

Light only where it is needed. Darklight lenses project crisply defined beams of light with high precision onto the target surface. So darkness remains dark.

  • Dark Sky: Precise light beams without spill light
  • Optical cut-off achieves maximum visual comfort
  • Darklight lens with a magical impression
Beamer

Framing

Facades, lettering or outdoor art? Illuminate with straight edges so that light is only where it should be.

Beamer

Zoom projector

Flexible until the last minute. Zoom optics allow for infinitely adjustable light distributions.

Beamer

Future-proof

Interchangeable lenses allow for new lighting options over and over again.

Beamer

For a world of color

Choose from two light spectra and create 8 more with filters. Or do you opt directly for tunable white and RGBW?

Beamer

Adaptive light

Control your light with the setting of the sun or program various light scenes.

Beamer

Flexible mounting

Whether on the ground, on facades or on high masts: Beamer offers the right mounting options.

Beamer in use

Galleria Giorgio Franchetti alla Ca' d'Oro, Venice. Architecture: Veneto Regional Museums. Lighting design: Studio Pasetti, Treviso. Photography: Marcela Schneider Ferreira.

Galleria Giorgio Franchetti alla Ca' d'Oro, Venice. Architecture: Veneto Regional Museums. Lighting design: Studio Pasetti, Treviso. Photography: Marcela Schneider Ferreira.

Parliament, Stockholm. Photography: Johan Elm.

Parliament, Stockholm. Photography: Johan Elm.

Holmegaard glass vaerk & museum, Copenhagen. Lighting design: Iben Winther Orton, Lightscapes ApS, Fredensborg, Denmark / Carl-Henrik Hansen, Museum Sydøstdanmark. Photography: Tomasz Majewski.

Holmegaard glass vaerk & museum, Copenhagen. Lighting design: Iben Winther Orton, Lightscapes ApS, Fredensborg, Denmark / Carl-Henrik Hansen, Museum Sydøstdanmark. Photography: Tomasz Majewski.

Allow us to tackle your next project together

Select a service:

Request a sample now

Without obligation and free of charge on site!

Would you like a callback?

Our lighting advisors are available to help you at any time!

Lighting effect of Beamer

Floodlights
Contour spotlights
Projectors
Lens wallwashers
Zoom projectors

Do you need help selecting the light distribution?

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Zoom projectors

Manually adjustable round or oval light distribution for accenting to floodlighting.

Floodlights

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Contour spotlights

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Projectors

Projectors

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Lens wallwashers

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Zoom projectors

Zoom projectors

Manually adjustable round or oval light distribution for accenting to floodlighting.

Floodlights

Lighting technology

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Extra wide flood

Extra wide flood

Oval wide flood

Oval wide flood

Oval flood

Oval flood

Wide flood

Wide flood

Luminaire arrangement

Beamer projectors ensure uniform floodlighting of wall surfaces or trees. The ideal angle of tilt (α) for this is approximately 30°.

Arrangement: α = 30°

Contour spotlights

Lighting technology

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Light source
19.9 W - 36.5 W
2503 lm - 3882 lm

Light distributions

Wide framing

Wide framing

Narrow framing

Narrow framing

Luminaire arrangement

Contour spotlights allow for freely adjustable light beams to illuminate facades, logos or paintings in outdoor areas with sharp contours and without color gradients. Select narrow framing to accurately illuminate small areas from a long distance and wide framing to accurately illuminate large areas from a short distance.

Projectors

Lighting technology

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2 W - 36.5 W
239 lm - 3882 lm

Light distributions

Narrow spot

Narrow spot

Spot

Spot

Flood

Flood

Luminaire arrangement

An angle of inclination (α) of approx. 30° is suitable for accent lighting with Beamer projectors. This emphasizes the three-dimensionality of architectural details, sculptures and trees without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°

Lens wallwashers

Lighting technology

Asymmetrical light distribution for highly uniform wallwashing.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Wallwash

Wallwash

Luminaire arrangement

Outdoors, uniform vertical lighting defines spatial borders. The distance to the wall (a) of Beamer wallwashers should be around one third of the wall height (h) for this purpose. This results in an angle of tilt (γ) of around 55°.

Arrangement: a = 1/3 x h or γ = 55°

For good longitudinal uniformity, the luminaire spacing (d) of Beamer wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.

Zoom projectors

Lighting technology

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
8.1 W - 36.5 W
956 lm - 3882 lm

Light distributions

Zoom oval

Zoom oval

Zoom spot

Zoom spot

Luminaire arrangement

Zoom projectors feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller objects can be accentuated effectively at an inclination angle (α) of approximately 30°. Oval zoom is suitable for elongated objects. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Configuration of Beamer

Get an overview of the product features of Beamer here

Diameter

Connected load

Luminous flux of the luminaire

Light distributions

Tunable white

RGBW

Diameter S / 4"

Connected load 4.1 W - 16.9 W

Luminous flux of the luminaire 194 lm - 1088 lm

Light distributions 10

Tunable white -

RGBW -

Diameter M / 5"

Connected load 4.1 W - 26 W

Luminous flux of the luminaire 198 lm - 1655 lm

Light distributions 10

Tunable white

RGBW

Diameter L / 7"

Connected load 11 W - 36.5 W

Luminous flux of the luminaire 261 lm - 2614 lm

Light distributions 12

Tunable white

RGBW

Inquire now: Beamer for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Inquire now: Beamer for your next project

We will gladly prepare an offer, provide you with samples and answer your specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.

Projector with darklight lenses

Because light needs darkness


The darklight lens not only creates a magical impression with just one light point. As precisely as a camera lens captures light, so too does Beamer project light with the darklight lens. ERCO thus sets standards in outdoor lighting. The interchangeable darklight lens offers lighting designers maximum flexibility and protects the environment from light pollution.

Beamer

The contour projector for magical outdoor lighting effects

Framing par excellence

Do you want to illuminate rectangular facades, logos, or paintings in outdoor areas with straight edges and without color gradients? Beamer contour projectors produce fantastic edge-to-edge sharpness and are infinitely adjustable.

For short and long lighting distances

For short and long lighting distances

The narrow framing distribution is ideally suited for small areas and long lighting distances. Wide framing is suitable for large areas from short lighting distances.
