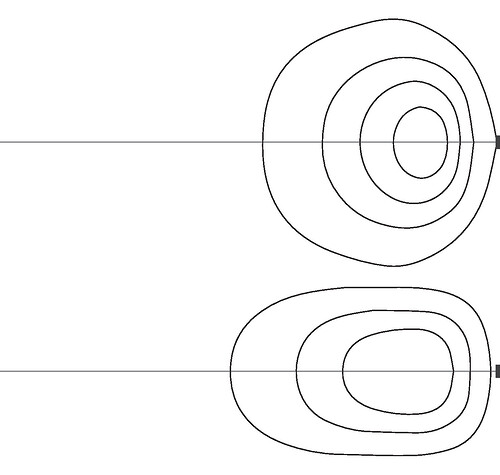

The wide or deep beam distribution Spherolit lenses allow the light distribution to be matched to the lighting task at hand.
The luminaires in the ERCO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.

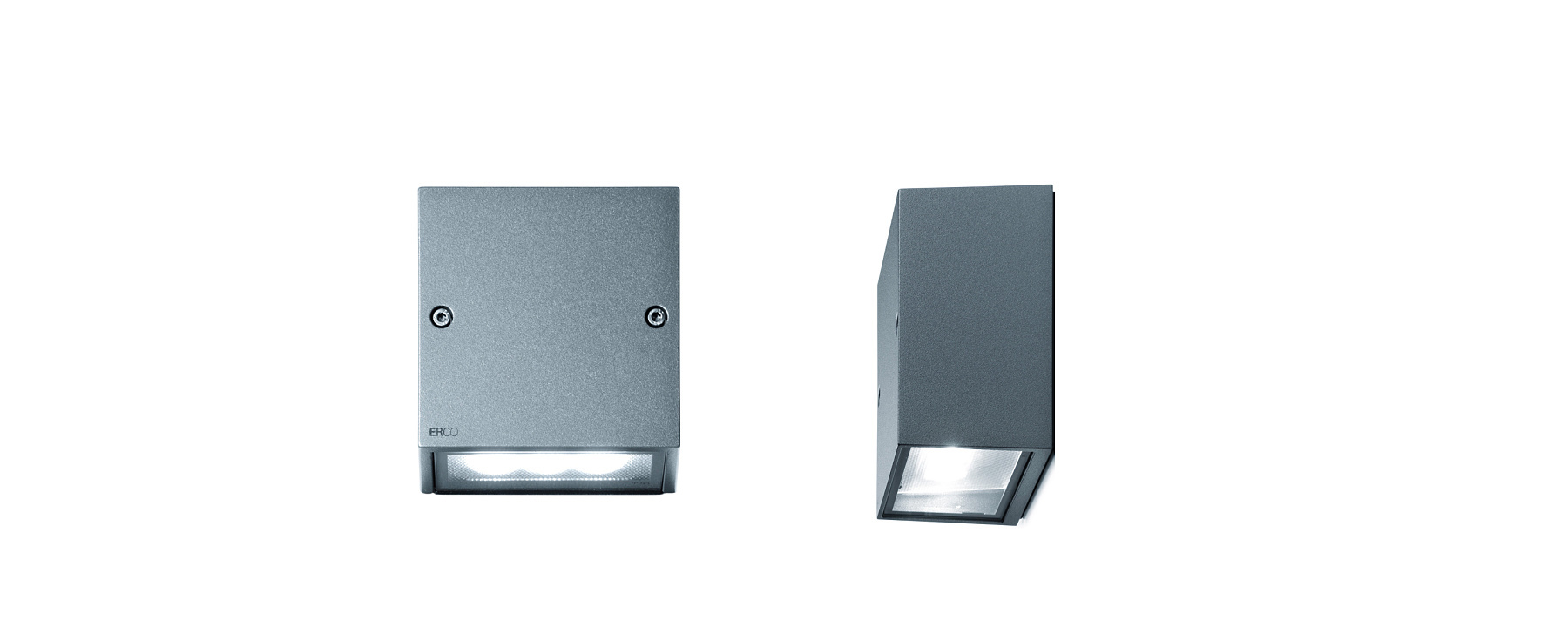

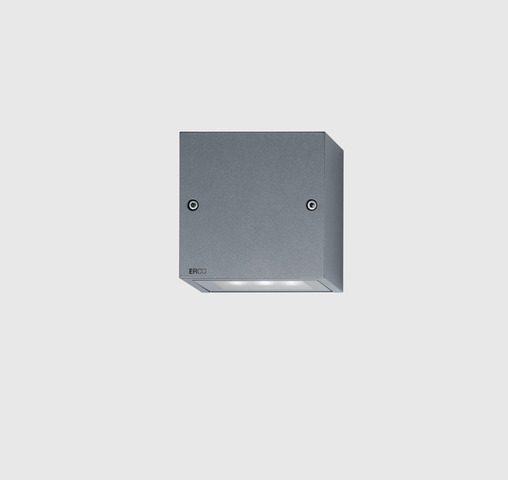

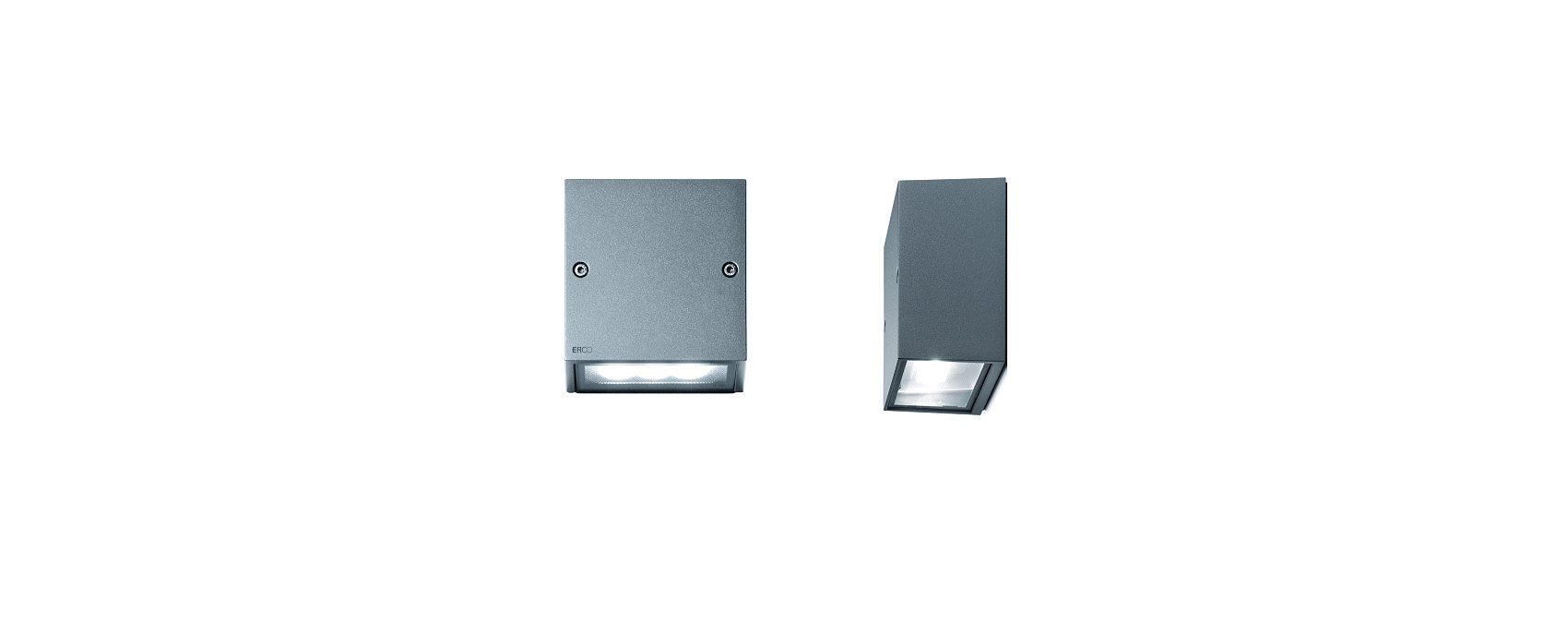

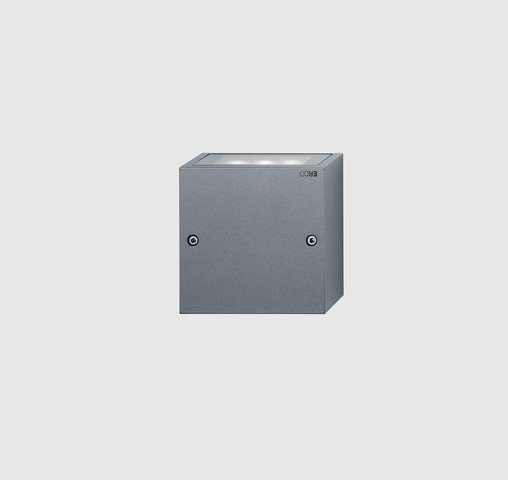

During the day, Kubus is all but an inconspicuous structure on the wall – at night, however, the luminaire excels with exquisite light. Kubus is flexible. Using appropriate accessories, the luminaire can be mounted in or on the wall. Underlined with grazing light, wall surfaces are given a new dimension.
Midgardsormen, Stavanger. Architecture: Asplan Viak Thorir Helgason and Torunn Tunset. Lighting design: Lyse Stavanger. Photography: Johan Elm, Stockholm.
CCK Centro Cultural Kirchner, Buenos Aires. Architecture: B4FS - Federico Bares, Enrique Bares, Nicolás Bares, Daniel Becker, Claudio Ferrari, Florencia Schnack, Buenos Aires. Photography: Edgar Zippel, Berlin.
Midgardsormen footbridge, Stavanger. Architecture: Asplan Viak Thorir Helgason and Torunn Tunset. Lighting design: Lyse, Stavanger. Photography: Johan Elm, Stockholm.
Florentinum Business Centre, Prague. Architecture: Cigler Marani Architects, Prague. Photographer: Dirk Vogel, Dortmund.
ERCO, Shanghai. Photography: Stephen Shen, Shanghai.
Museum im Palais, Graz. Architect: Riegler Riewe Architekten, Graz. Lighting design: Gerald P. Marko, Graz.
Wiesbadener Volksbank Private Banking, Wiesbaden. Lighting design: Arne Fiedler, Wiesbaden.
RDS Radio Dimensione Suono headquarter, Rome. Architect: Nigel Ryan. Lighting design: Baldieri, Rome.
Shanghai EXPO - Moroccan Pavilion, Shanghai. Architect: Mustapha Alaoui, Morocco.
With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Kubus even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:
Do you have further requirements with the product?
Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}}
{{strasse2}}
{{/strasse2}}
{{ort}}
{{staat}}
or
or
Wide-beam illumination of pathways and open areas.
Asymmetrical washlighting with a wide or deep beam for the illumination of pathways or squares.
Kubus floor washlights with a wide beam light distribution provide subtle light for a glare-free and uniform illumination of pathways near façades. The recommended mounting height (h) for floor washlights is 2ft above the ground.
Arrangement: h = 2ft
For uniform washlighting of the ground, the luminaire spacing (d) may be up to 2 times the mounting height (h). The luminaire spacing for visual guidance may be up to 10 times the mounting height.
Arrangement: d ≤ 2 x h
Kubus floor washlights with a deep beam light distribution provide subtle light for a glare-free and uniform illumination of open areas near façades. The recommended mounting height (h) for floor washlights is 2ft above the ground.
Arrangement: h = 2ft
For uniform washlighting of the ground, the luminaire spacing (d) may be up to 2 times the mounting height (h). The luminaire spacing for visual guidance may be up to 10 times the mounting height.
Arrangement: d ≤ 2 x h
Lighting tool
Light distribution

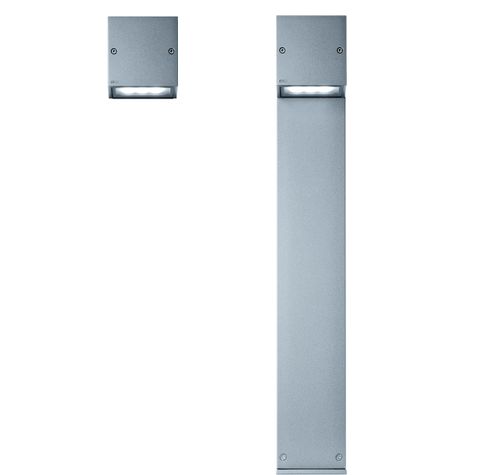

More luminaires from the Kubus family
