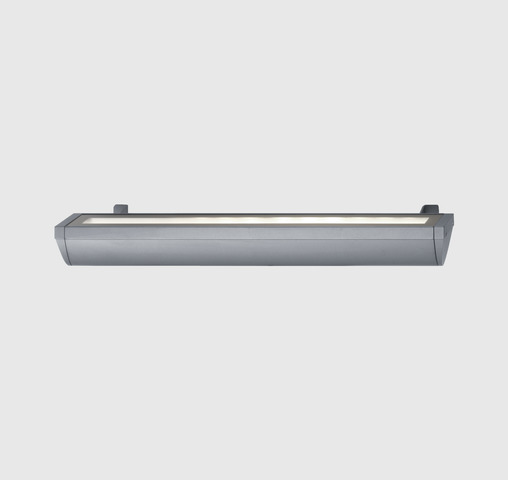

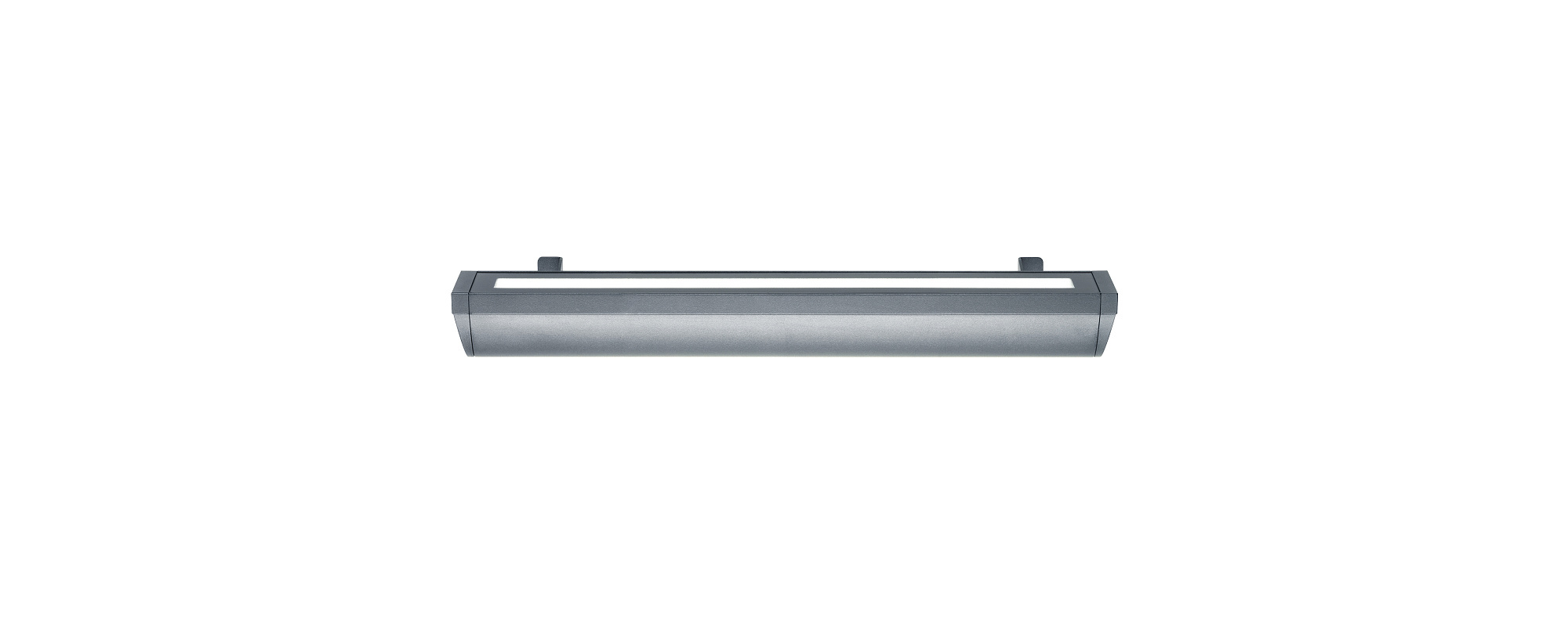

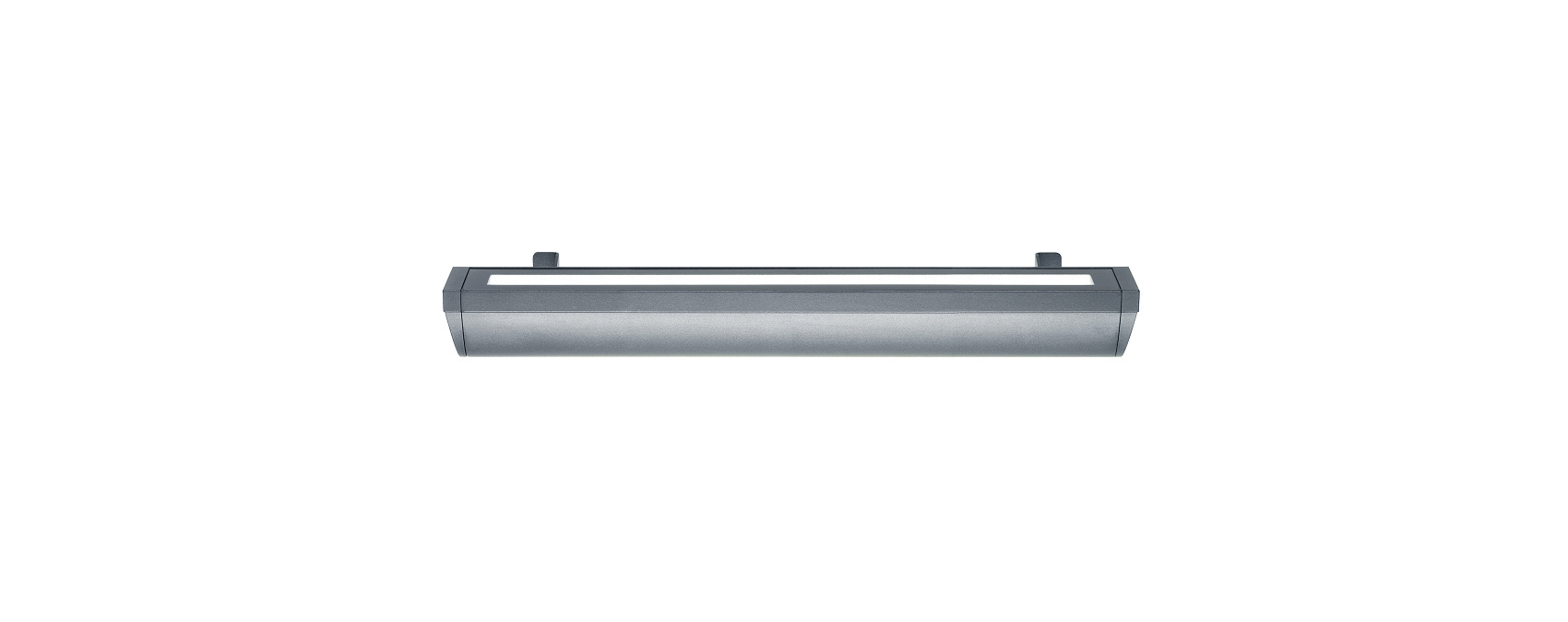

Focalflood. Grazing light to perfection

Emphasizing façade surfaces with white light

Show products

Special features of Focalflood
View product description

Highly efficient lighting technology

ERCO has developed luminaires with special housing designs and highquality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Grazing light

The wide light distribution along facades and soft gradient ensure very good uniformity when mounted in a row. The luminaire can be tilted individually and has a very narrow beam angle towards the wall to prevent spill light and enable sustainable lighting solutions meeting dark sky requirements.

Grazing light delivers incredibly effective illumination of building surfaces and emphasizes details through high-contrast shadows – such superb results are achieved with Focalflood façade luminaires. Optimized for grazing light, their lens system enables wide luminaire spacing, still producing excellent uniformity on the façade. The luminaire is easily oriented and smoothly adjusted to further optimize its grazing light. The Focalflood façade luminaire offers a highly precise, narrow light distribution over the whole wall to minimize spill light. Focalflood façade luminaires thus provide a creative basis for transforming façades into an eye-catching feature, washlit with magic grazing light.

Focalflood in the application

Oriocenter, Bergamo. Architecture: De8 Architetti. Lighting design: Studio Scandella. Photography: Edgar Zippel, Berlin.

Engelbrektsväg Tunnel, Stockholm. Photography: Johan Elm, Stockholm.

Norrköpings Konstmuseum, Norrköping. Lighting design: InWhite Ljusmiljö AB, Norrköping. Photography: Johan Elm, Stockholm.

Hotel Principe di Savoia, Milan. Architecture: Cesare Tenca. Lighting design: Marco Nereo Rotelli, Milan. Photography: Dirk Vogel, Altena.

Kiton, Milan. Architect: Franco Raggi, Milan. Lighting designer: Gruppo C14, Milan. Photographer: Dirk Vogel, Dortmund.

Façade lighting for Lange Hezelstraat, Nijmegen. Lighting design: LICHTvormgevers B.V., Dongen.

Banca Farnese, Piacenza. Architect: Studio Scagnelli, Piacenza.

Museum Vitenfabrikken (Science Factory), Sandnes. Architect: Askim & Lantto AS, Oslo. Electrical engineering: Cowi AS, Stavanger.

Salt Mine Museum, Wieliczka near Krakow. Architect: Akademia Sztuk Pieknych Krakow, Prof. Maciej Radnicki. Photography: Thomas Pflaum, Castrop-Rauxel.

Individualize Focalflood for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Focalflood even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO LED-module

High-power LEDs: warm white (3000K) or neutral white (4000K)

2 ERCO reflector

Asymmetrical reflector lens system: aluminum, silver anodized
No direct light components due to optimized LED shielding

3 Front unit

Graphit m
Corrosion-resistant aluminum, No-Rinse surface treatment
Double powder-coated
Softec lens

4 Housing

Graphit m
Corrosion-resistant aluminum profile, No-Rinse surface treatment
Double powder-coated
Optimized surface for reduced accumulation of dirt
Screw-fastened end plates: corrosion-resistant cast aluminum
2 freely positionable mounting brackets: corrosion-resistant aluminum
135° tilt
Connection cable 3xAWG18 / 3x1mm², L 59" / 1.5m

5 Control gear

Switchable

1 ERCO LED-module

High-power LEDs: warm white (3000K) or neutral white (4000K)

2 ERCO reflector

Asymmetrical reflector lens system: aluminum, silver anodized
No direct light components due to optimized LED shielding

3 Front unit

Graphit m
Corrosion-resistant aluminum, No-Rinse surface treatment
Double powder-coated
Softec lens

4 Housing

Graphit m
Corrosion-resistant aluminum profile, No-Rinse surface treatment
Double powder-coated
Optimized surface for reduced accumulation of dirt
Screw-fastened end plates: corrosion-resistant cast aluminum
2 freely positionable mounting brackets: corrosion-resistant aluminum
135° tilt
Connection cable 3xAWG18 / 3x1mm², L 59" / 1.5m

5 Control gear

Switchable

Focalflood: Light effect and planning aid

Emphasis of the façade produced by a narrow light beam.

Lighting technology
Luminaire arrangement

Façade luminaires

Asymmetrical light distribution for accentuated façade lighting.

Light source
20.2W
2391lm - 2620lm
Façade luminaires

Façade luminaires

Focalflood façade luminaires allow surface textures to come to the foreground of attention. The luminaire should be mounted at a height that restricts the view into the luminaire from above.

Application area: Surfaces with a three-dimensional texture, e.g. natural stone walls.

For good longitudinal uniformity, the spacing (d) of two Focalflood façade luminaires may be up to 3ft.

Arrangement: d = 3ft
