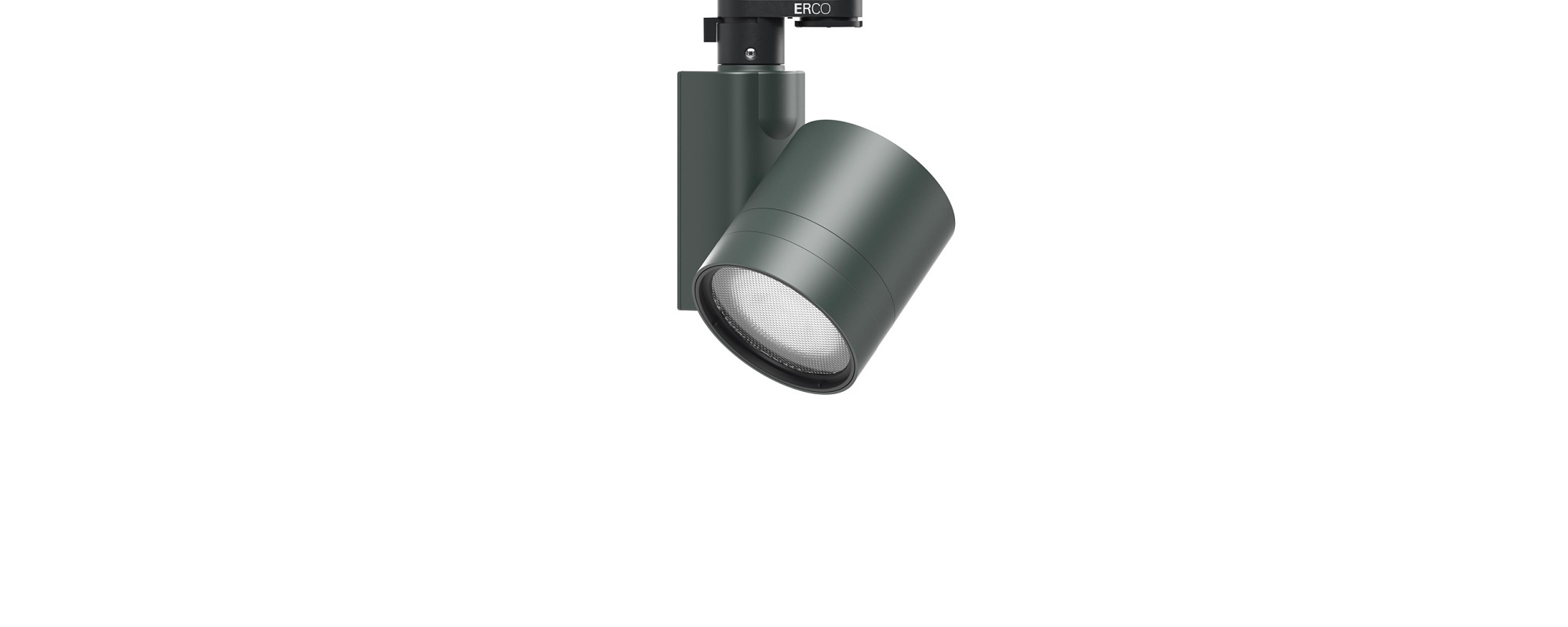

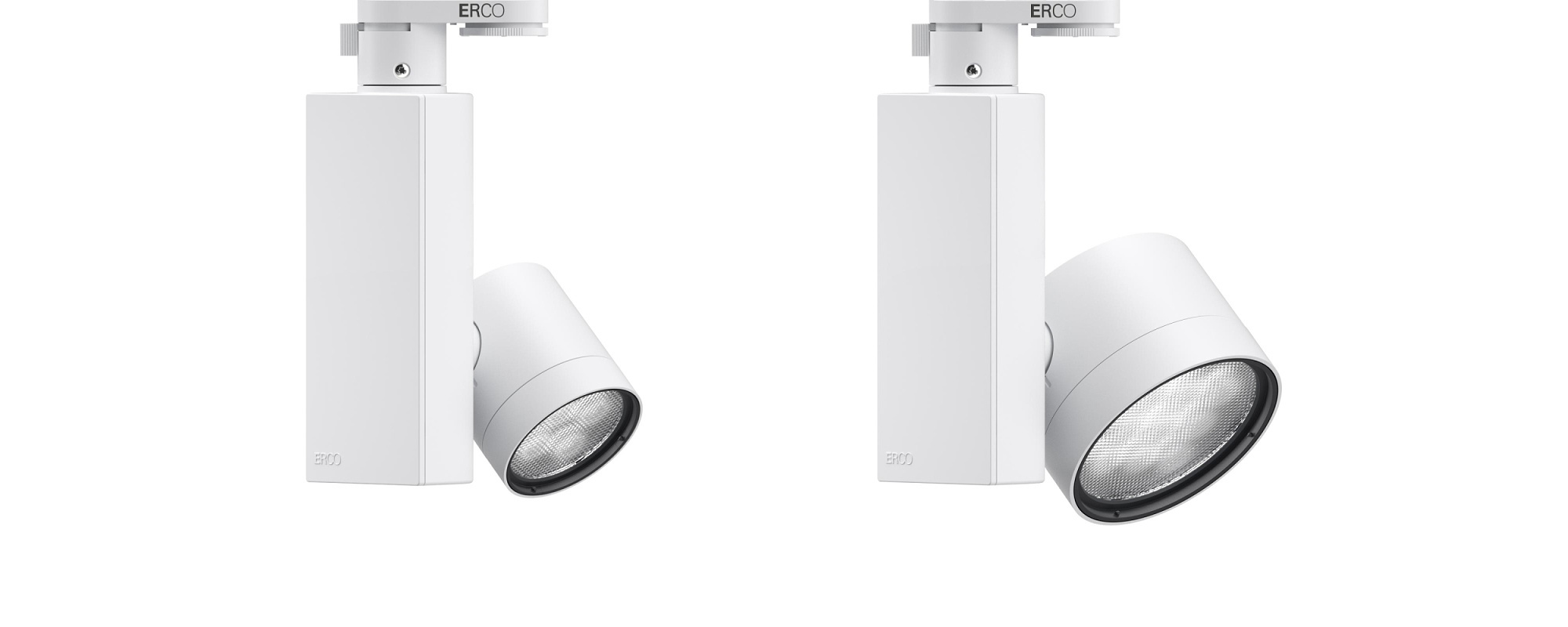

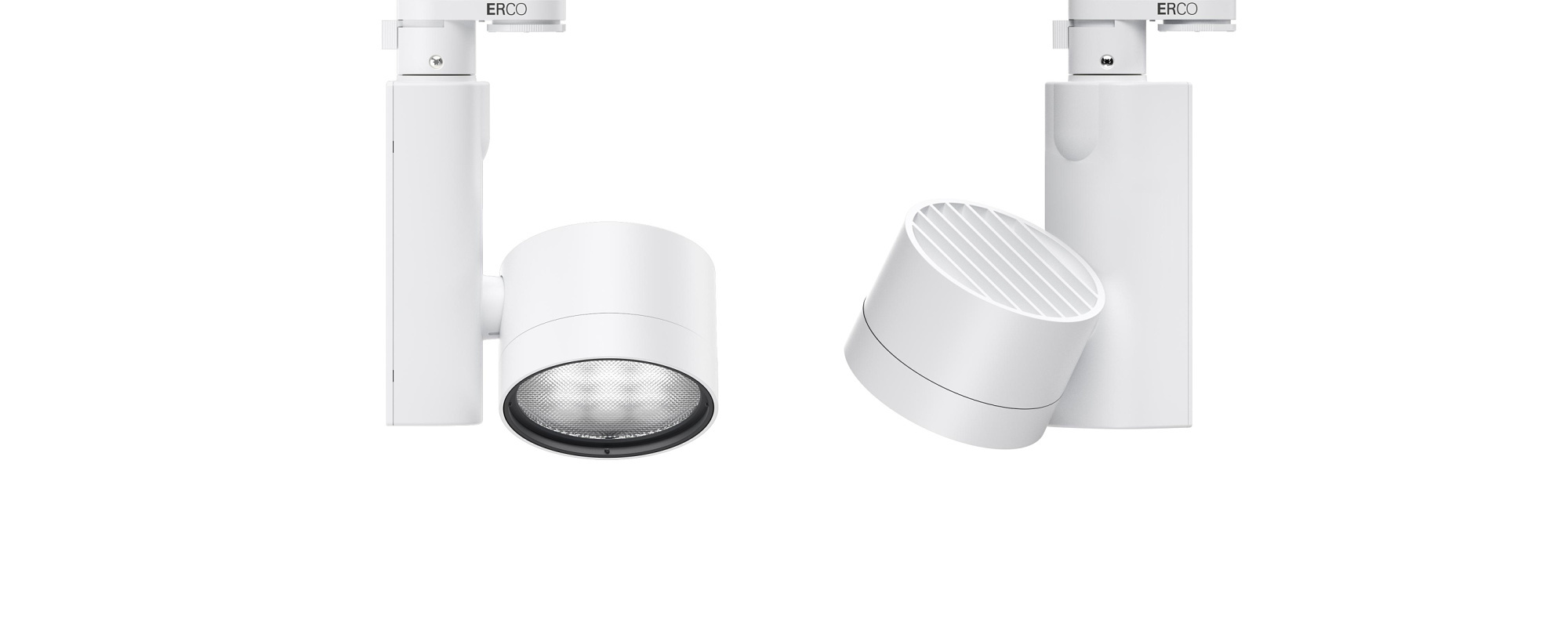

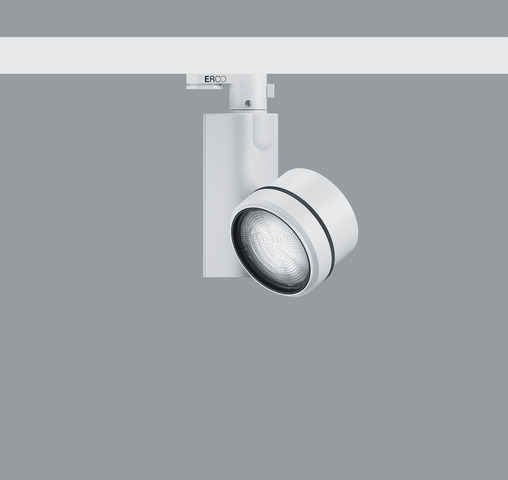

Optec New 120V. The durable universal talent

A spotlight for all situations, consistently designed for sustainability

Show products

Special features of Optec New 120V
View product description

Particularly durable

Optec New 120V has been designed and tested for a life cycle of about 75,000 hours. This corresponds to a service life of 20 years, presuming standard product use, compliance with maintenance intervals and a period of illumination of about ten hours per day.

More light on the target surface

The lens system, developed and manufactured in-house, precisely projects the light with no spill light. The accent lighting of the ERCO spotlight thus sets itself clearly apart from conventional spotlights.

Very good price performance ratio

Optec New 120V as an entry-level product offers you an attractive price-performance ratio. This is particularly interesting for lighting design tasks with economic efficiency in mind.

Durable and adaptable at the same time: the new generation of our top-selling Optec combines these characteristics to achieve maximum sustainability. Optec New is designed for a service life of at least 20 years. The proven, high-efficiency lighting technology for more lux per watt on the target surface is supplemented by a design aimed at durability thanks to high quality components. Thanks to upgrades and updates, Optec also remains adaptable to new usage scenarios. As with its predecessors, Optec New meets all quality of light needs in shops, galleries, and museums, especially on existing track installations. The system of interchangeable optics and suitable accessories provides limitless flexibility of use, now and well into the future.

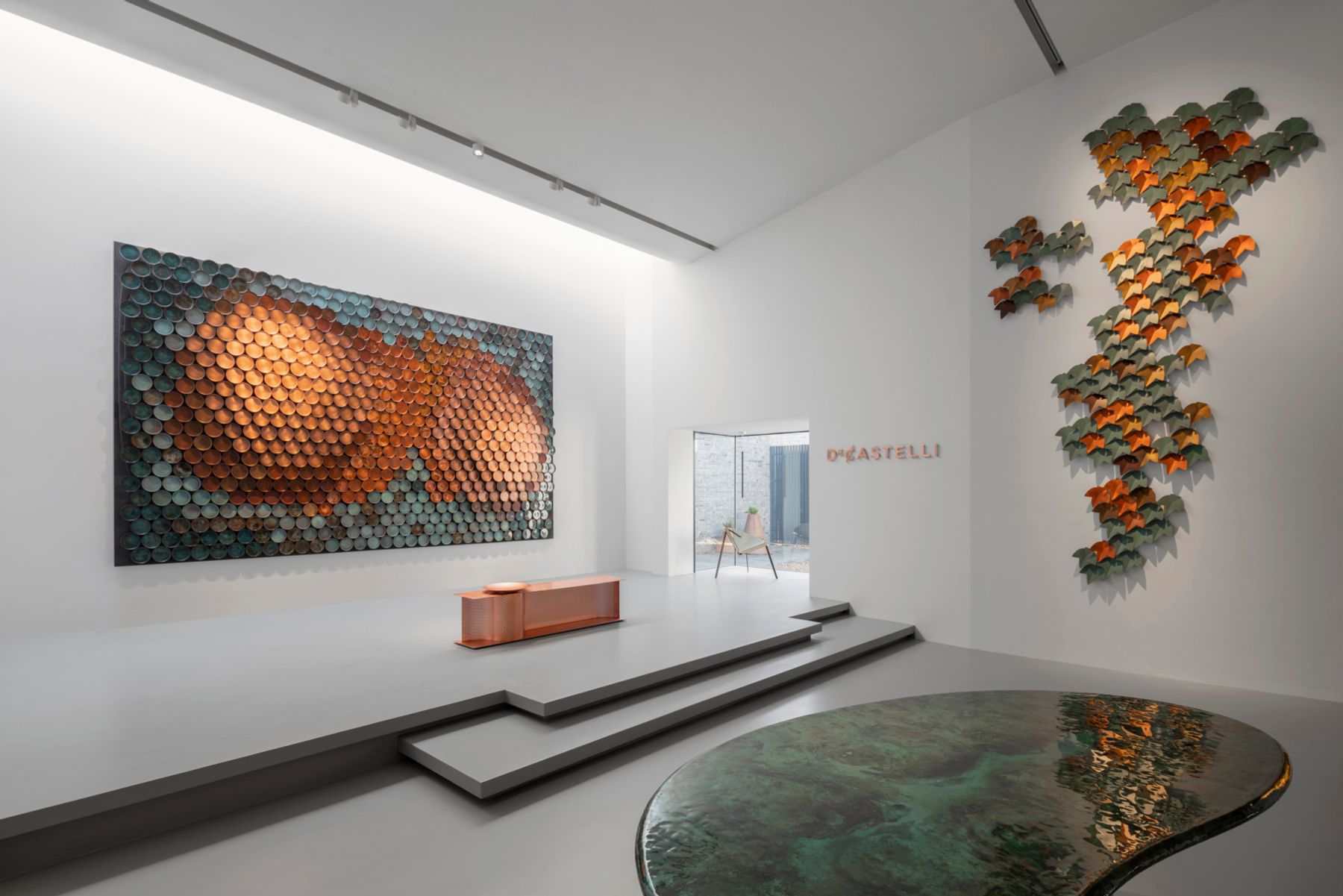

Optec New 120V in the application

Individualize Optec New 120V for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Optec New 120V even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

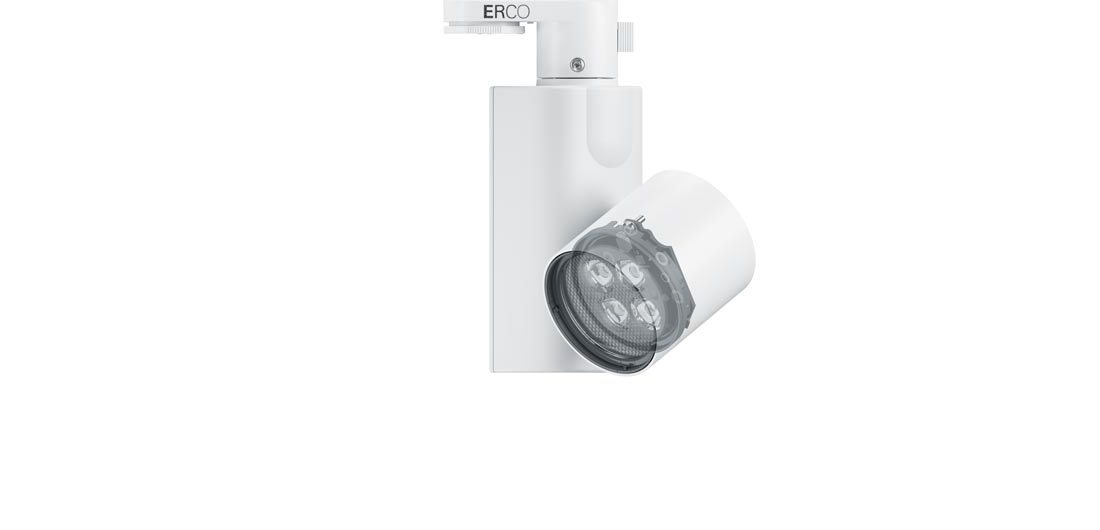

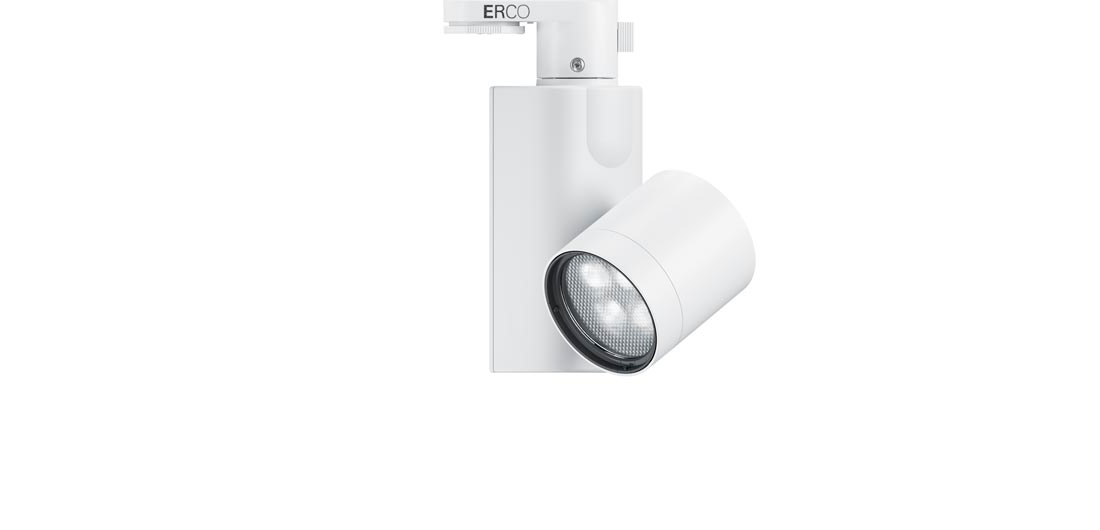

Product features in detail

1 ERCO lenses

Made of optical polymer
Spherolit lenses: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

4 Cylindrical light head

White (RAL9002), black or silver
Cast aluminum, powder-coated
270° tilt

5 Housing

White (RAL9002), black or silver
Polymer
Rotatable through 360° on adapter

6 Control gear

On-board Dim or Casambi Bluetooth
On-board Dim version: rotary control for control of brightness on the luminaire

7 ERCO turning adapter for 2-circuit track

1 ERCO lenses

Made of optical polymer
Spherolit lenses: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

4 Cylindrical light head

White (RAL9002), black or silver
Cast aluminum, powder-coated
270° tilt

5 Housing

White (RAL9002), black or silver
Polymer
Rotatable through 360° on adapter

6 Control gear

On-board Dim or Casambi Bluetooth
On-board Dim version: rotary control for control of brightness on the luminaire

7 ERCO turning adapter for 2-circuit track

Optec New 120V: Light effect and planning aid

Lighting tool

Light distribution

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

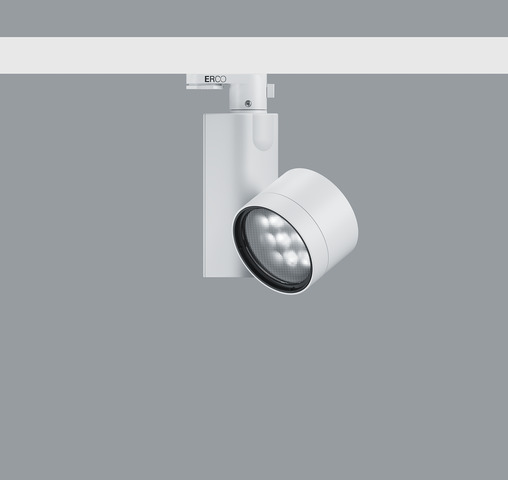

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
3.1W - 34.9W
274lm - 4437lm

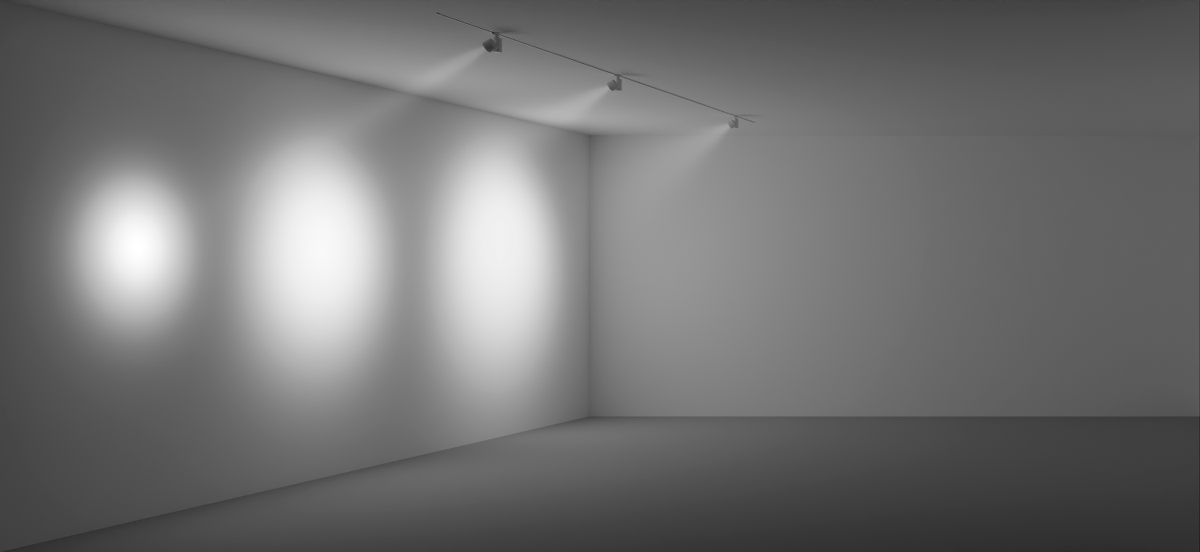

Spotlights

Spotlights

Optec spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

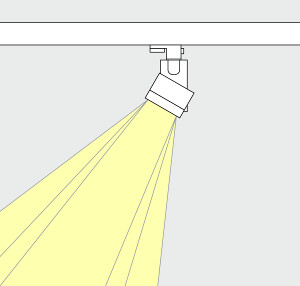

Zoom spotlights

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
6.3W - 34.9W
626lm - 4437lm

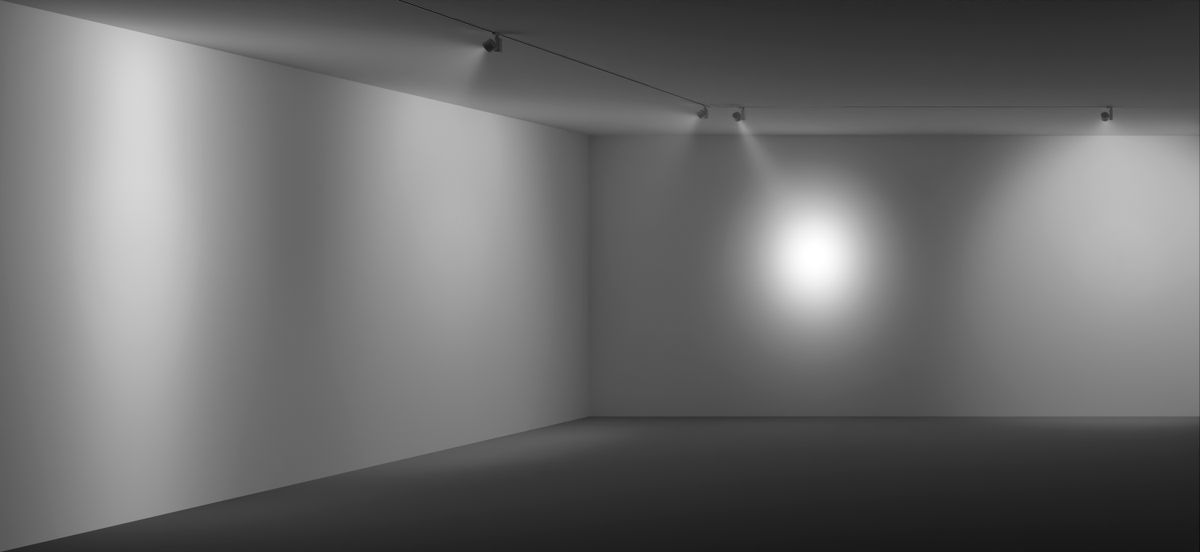

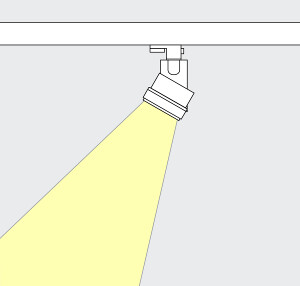

Zoom spotlights

Zoom spotlights

Zoom spotlights feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller works of art can be accentuated effectively at an inclination angle (α) of approximately 30°. The oval zoom is suitable for linear works of art. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Projection of contours.

Lighting technology
Luminaire arrangement

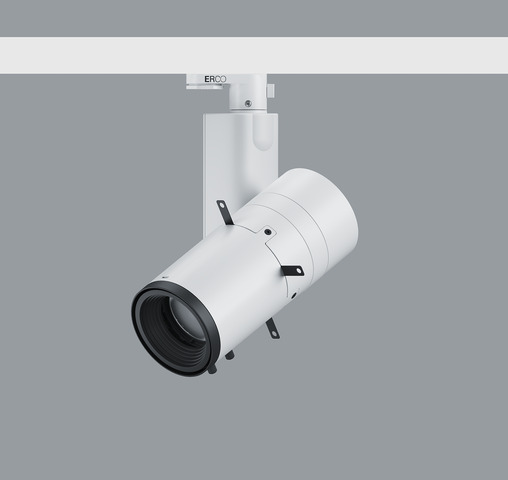

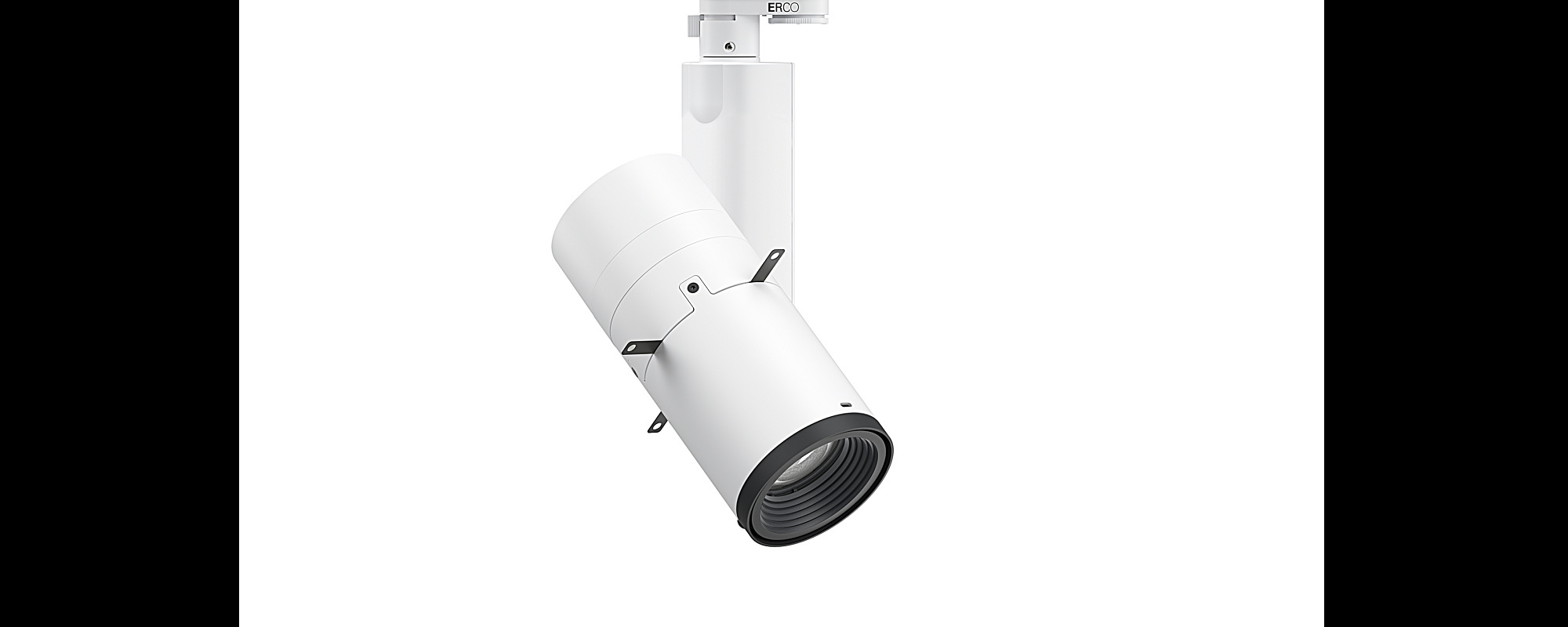

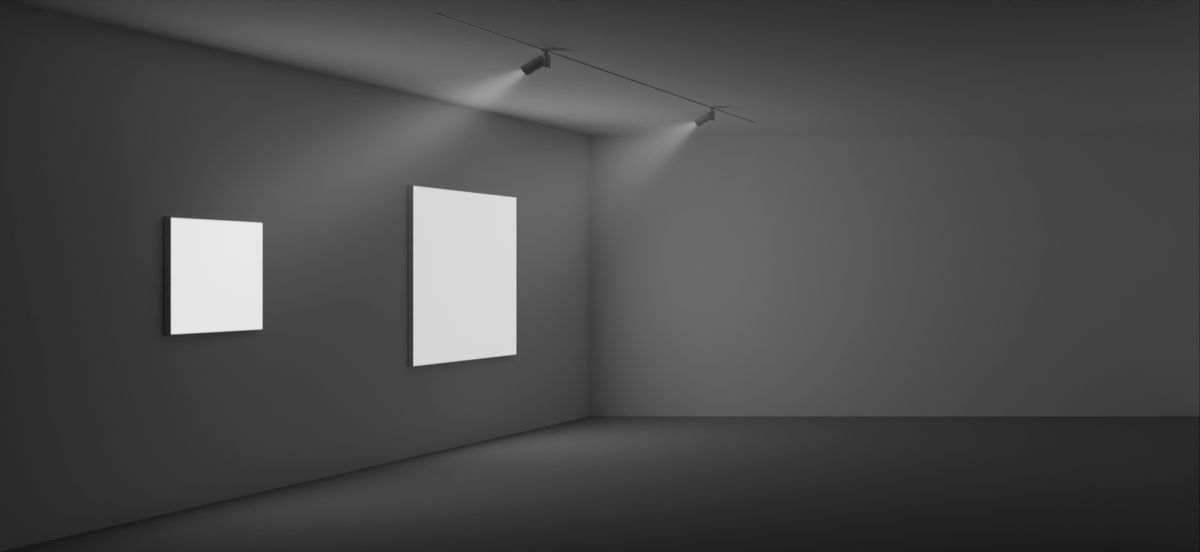

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Light source
6.3W - 34.9W
626lm - 4437lm
Contour spotlights

Contour spotlights

Contour spotlights generate freely adjustable, crisp-edged light beams. As a result fascinating effects can be created where pictures appear to illuminate from within. Select narrow framing to accurately illuminate small exhibits from a long distance and wide framing to accurately illuminate large exhibits from a short distance.

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

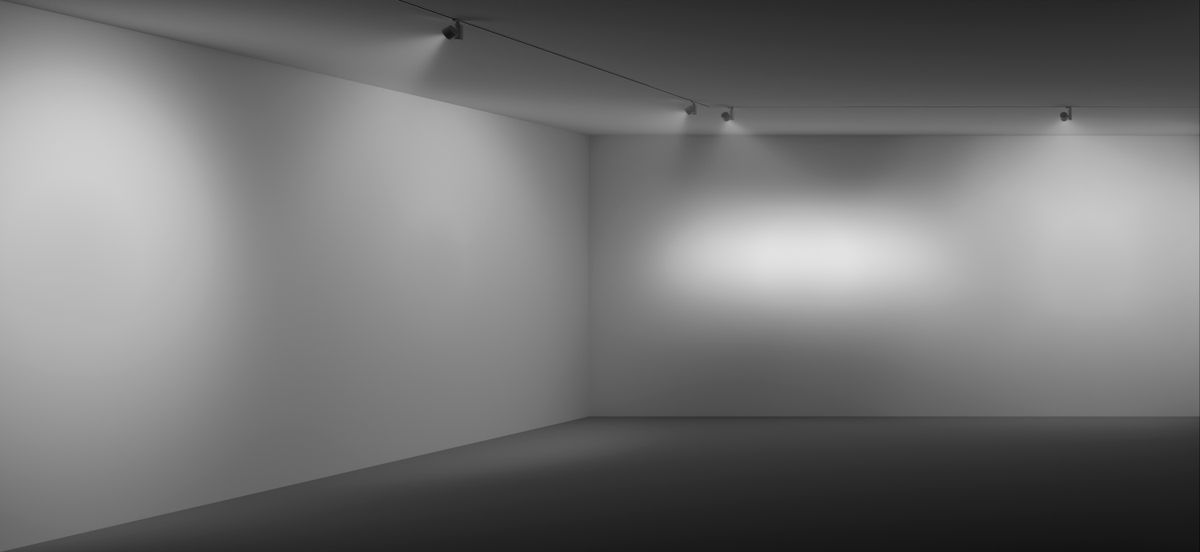

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
6.3W - 34.9W
626lm - 4437lm

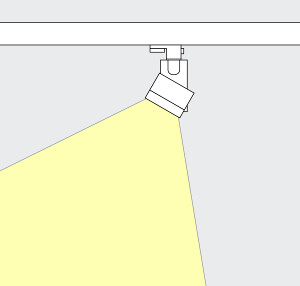

Floodlights

Floodlights

The ideal angle of tilt (α) for floodlighting objects with a long, square shape, e.g. pictures, sculptures or merchandise displays, is around 30°.

Arrangement: α = 30°

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

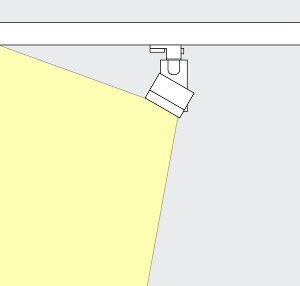

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
6.3W - 34.9W
626lm - 4437lm

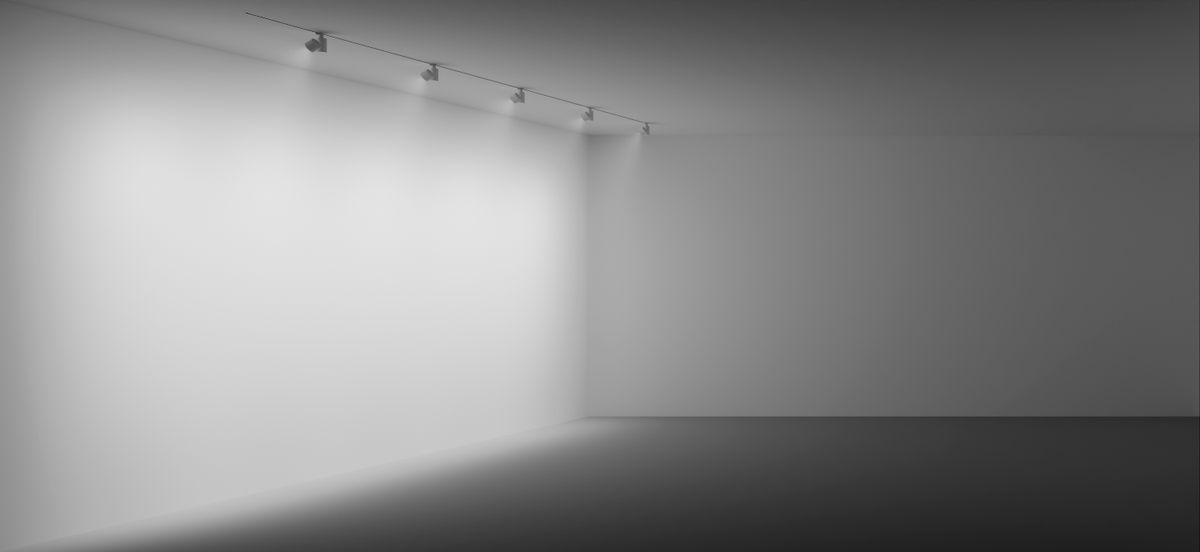

Lens wallwashers

Lens wallwashers

For uniform vertical illuminance, the distance (a) of Optec lens wallwashers from the wall should be around one third of the room height (h). This results in an angle of tilt (α) of approx. 35°.

Arrangement: a = 1/3 x h or α = 35°

For good longitudinal uniformity, the luminaire spacing (d) of Optec wallwashers may be up to 1.5 times the distance to the wall (a).

Arrangement: d ≤ 1.5 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.

Downloads

Product brochure

Download brochure

Product images

Download product images

Request now: Optec New 120V for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.

Your contact data:

The fields highlighted in red must be filled out correctly!

free of charge and without obligation

Your data will be handled confidentially. For further information see Data protection declaration.
