Special features of Compar linear
View product description

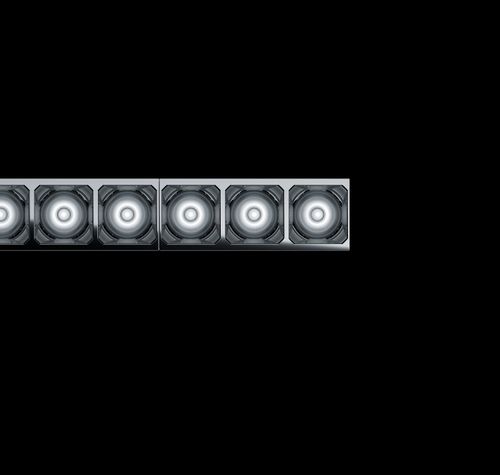

Louvres for efficient visual comfort

A louvre is designed to restrict the view into the luminaire, achieving efficient visual comfort with an emission angle of 90°. An anti-glare louvre available in black or silver enables the luminaire to blend with the material and color of the ceiling.

Suitable for office workstations

ERCO develops luminaires with the specifications of good glare control and high visual comfort. UGR values are used as support for purely norm-referenced lighting. With downlights though this should not be carried out using 'blanket' values, but should be implemented according to the individual arrangement of luminaires in the room.

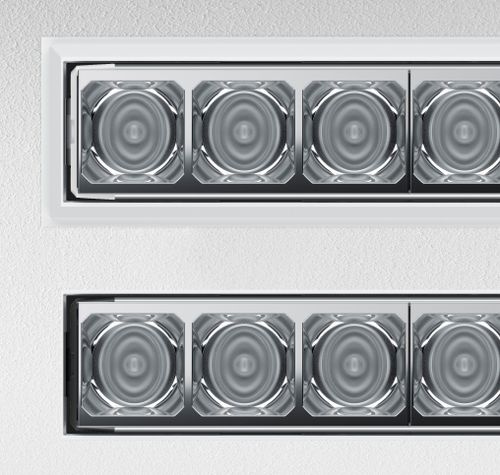

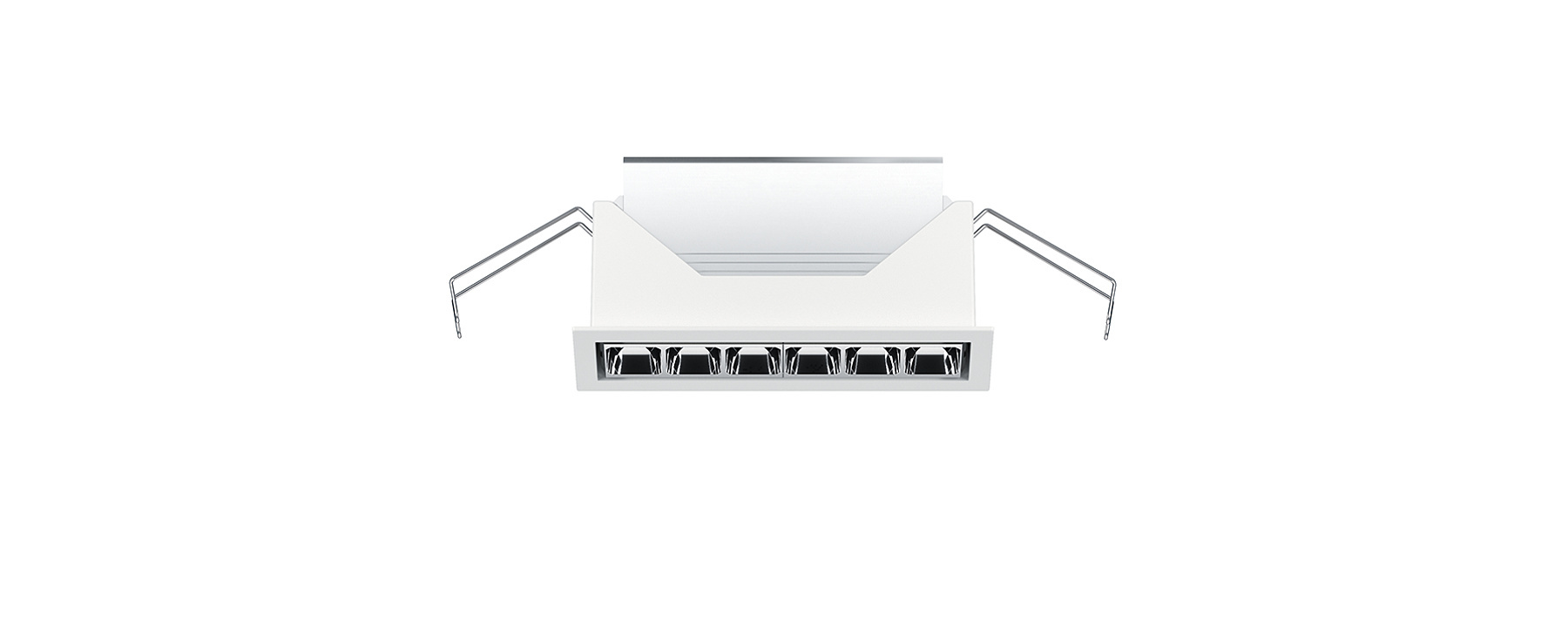

Covered or flush mounting detail

Compar recessed downlights are supplied with an overlapping mounting detail. Flush mounting details are available as accessories to facilitate site logistics.

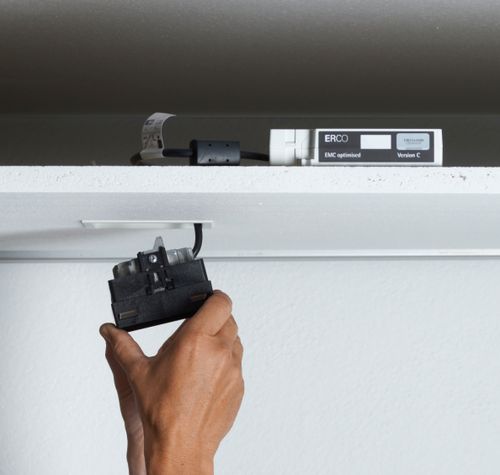

Shallow recess depth

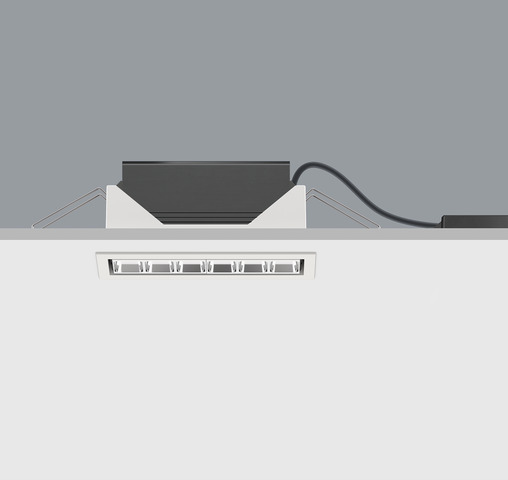

In compact installation situations, every millimeter is decisive with the recess depth of a luminaire. ERCO has thus developed special luminaires for shallow recess depths that guarantee very good quality of light even in very tight installation conditions.

The recessed downlights with a concise and linear housing shape, available from widths of 2” (52mm), set accents in the ceiling design and simultaneously function as highly efficient lighting tools with high levels of visual comfort. The wide spectrum of distribution options for nuanced general and office lighting convinces in any high-quality architecture. Compar is an attractive alternative to lighting with conventional linear luminaires. With Compar, ceiling-integrated lighting concepts can be realized in restaurants as well as administrative, cultural and office buildings.

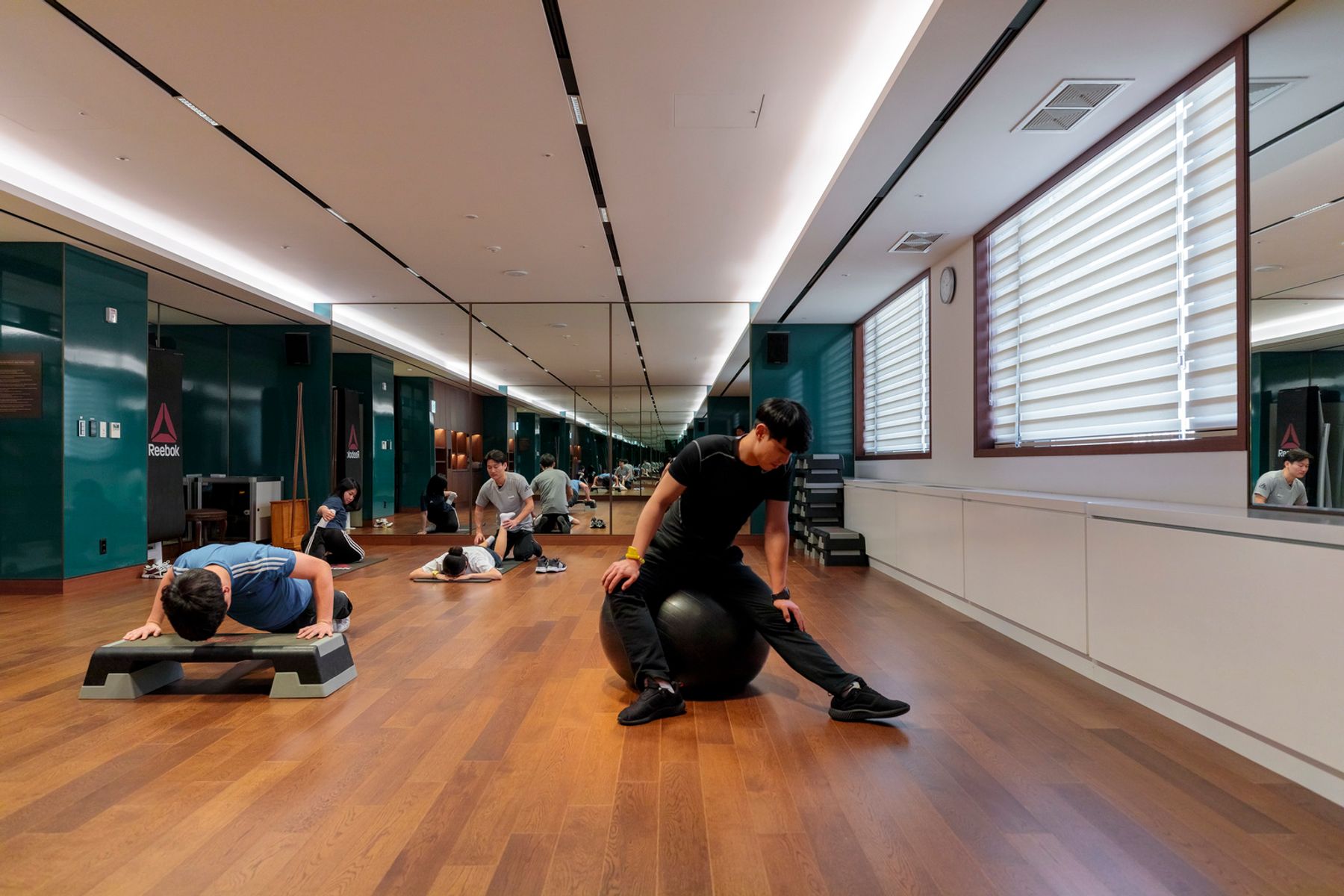

Compar linear in the application

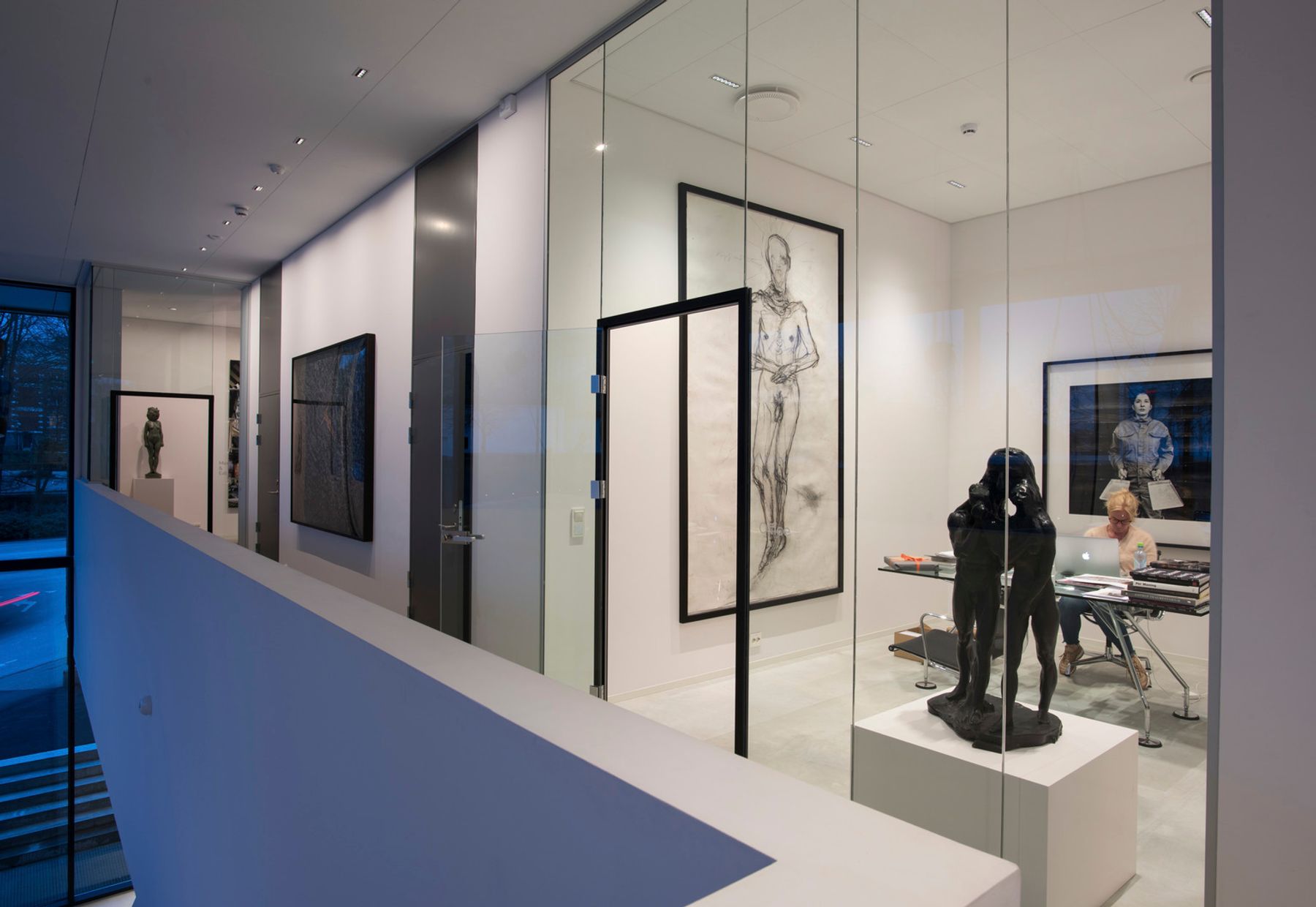

Faerber Architekten, Mainz. Architecture: Faerber Architekten GbR, Mainz. Photography: Lukas Palik, Düsseldorf.

Helsinki Airport. Photography: Johan Elm.

Missouri Botanical Garden Visitors Centre. Missouri. Architecture: Ayers Saint Gross and Tao + Lee, Missouri. Lighting design: Reed Burkett Lighting Design, Missouri. Photography: RLI Photography.

Space Z, Beijing. Architecture: Beijing Newsdays Architectural Design (Liang Jianguo), Beijing. Photography: StudioSZ Photo / Justin Szeremeta.

PAG Office, Hong Kong. Lighting design: Litto Lighting Design Limited, Hong Kong. Photography: Jackie Chan.

Stade de la Tuilière, Lausanne. Architecture: mlzd, Biel / Sollberger Bögli Architekten AG, Biel. Lighting design: LLAL AG, Tobias Gsell & Marc Dietrich, Zurich. Photography: Moritz Hillebrand, Zurich.

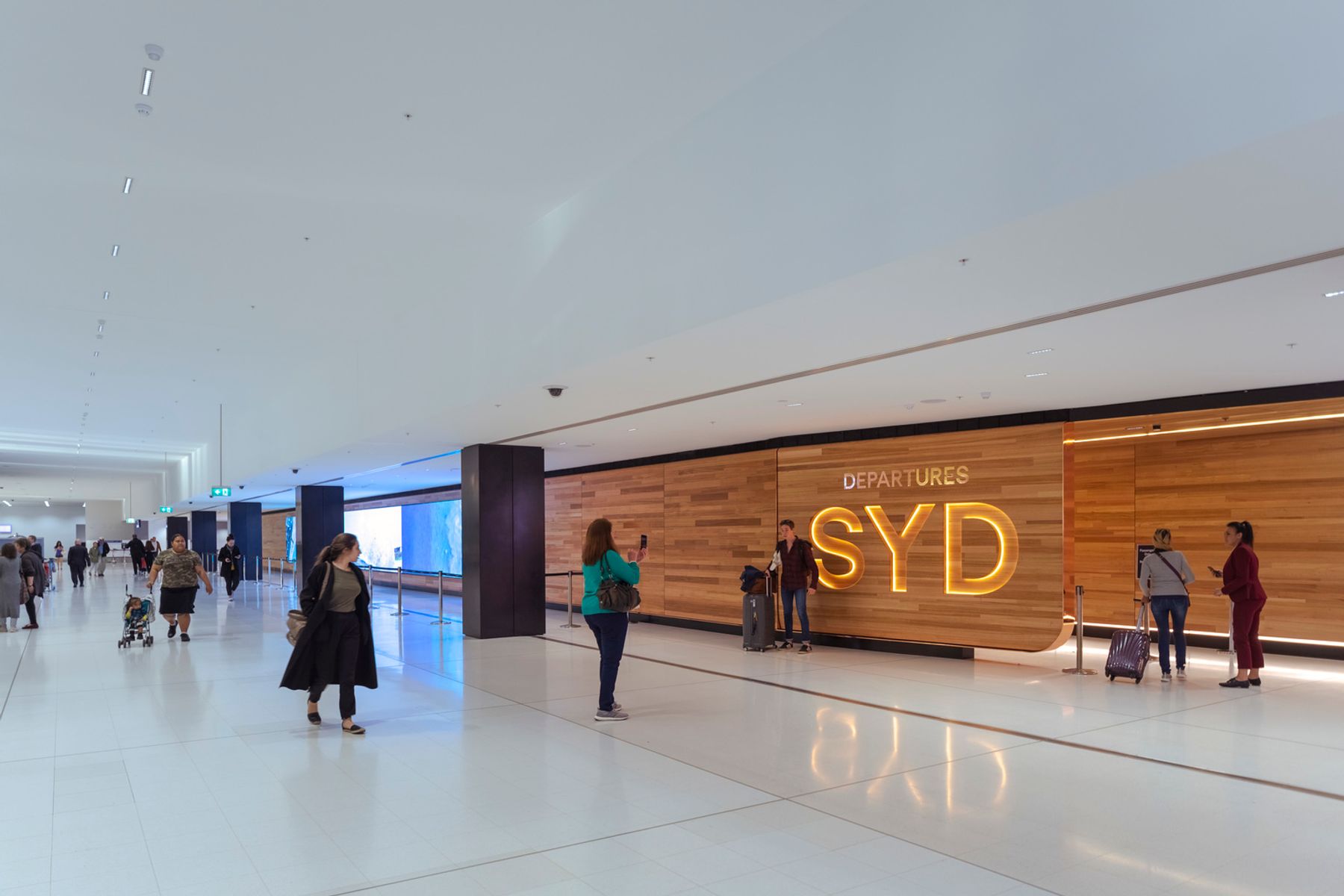

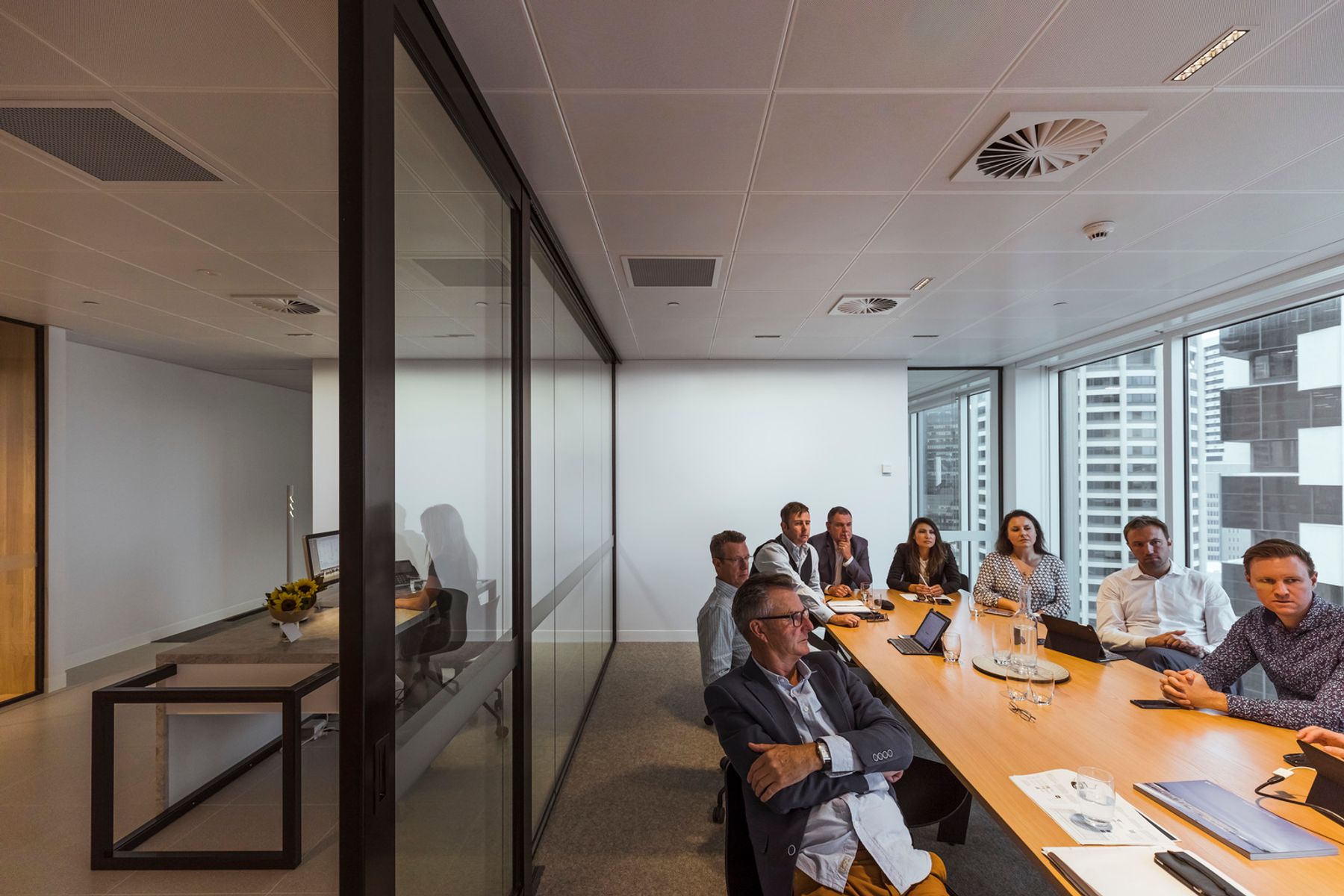

Arup, Sydney. Lighting design: Arup. Photography: Jackie Chan, Sydney.

Buckford Illumination Group, Melbourne. Architecture and lighting design: Buckford Illumination Group. Photography: Jackie Chan, Sydney.

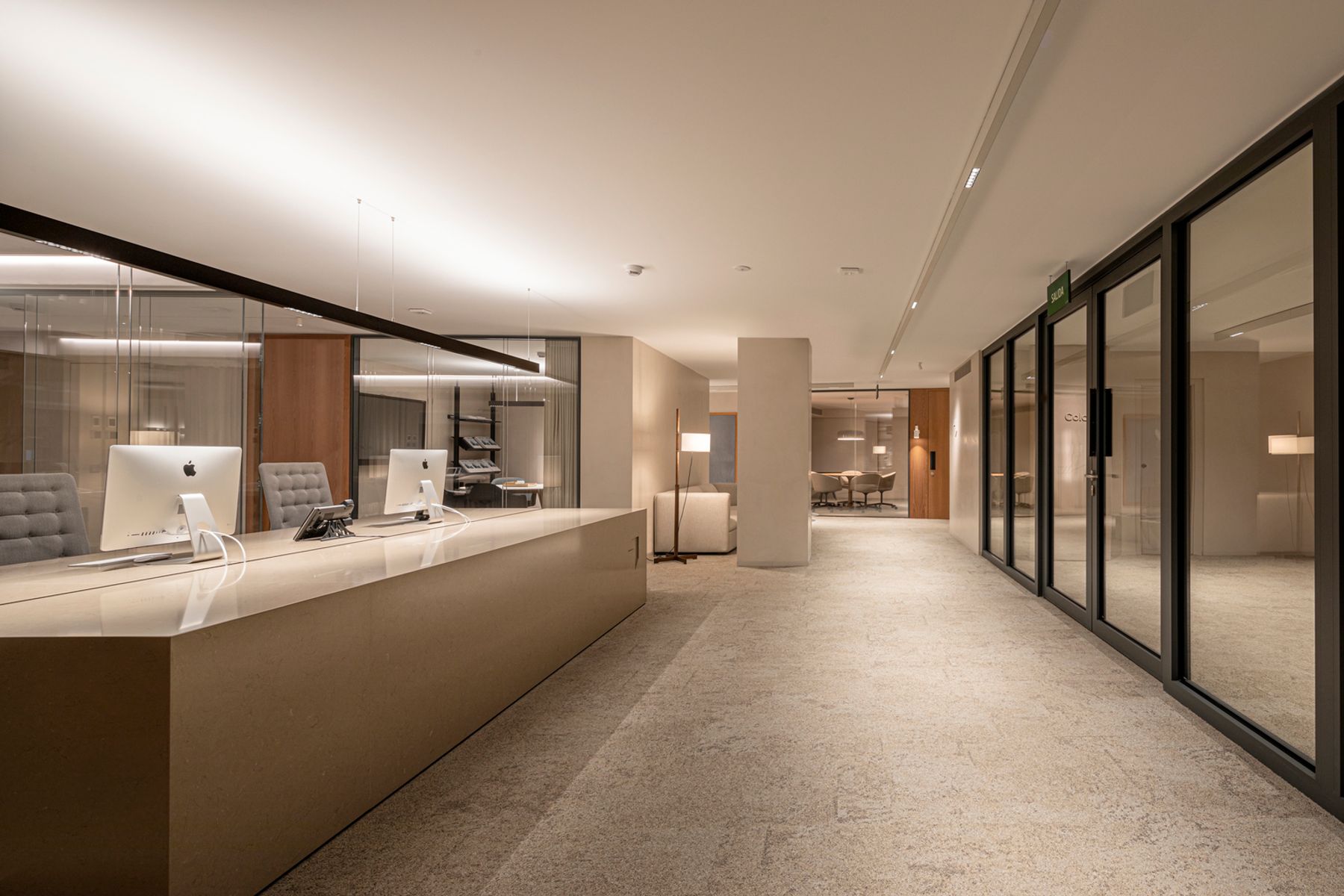

Sede de Colonial en Castellana, Madrid. Lighting design: Maurici Gines, artec3 Studio. Photography: Rafael Vargas.

Individualize Compar linear for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Compar linear even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Anti-glare louvre: coated matt gold, matt silver or matt champagne
Mounting frame: 10,000 further colors
Control: Lutron

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO lens system

Made of optical polymer
Light distributions: spot, flood, wide flood, extra wide flood, oval wide flood or oval flood

or

Reflector (lens wallwasher)

Polymer, silver vaporized, specular
Softec lens

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)

3 Louvre

Polymer, black lacquered or aluminum vaporized, silver, specular
Downlight: cut-off angle 30° from horizontal
Wallwasher: cut-off angle 70° from horizontal

4 Mounting frame

Covered mounting detail
Mounting for ceiling thicknesses to max. 1" / 25mm
Polymer, white
For flush mounting: mounting frame to be ordered separately, fixing for ceiling thicknesses of 1/2" - 1" / 12.5–25mm

5 Housing

Aluminum profile, designed as heat sink

6 Control gear

Trailing edge dimmable or 0-10V dimmable

Trailing edge dimmable version:

Operation at 120V: Dimming with external dimmers possible
Operation at 277V: switchable

1 ERCO lens system

Made of optical polymer
Light distributions: spot, flood, wide flood, extra wide flood, oval wide flood or oval flood

or

Reflector (lens wallwasher)

Polymer, silver vaporized, specular
Softec lens

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)

3 Louvre

Polymer, black lacquered or aluminum vaporized, silver, specular
Downlight: cut-off angle 30° from horizontal
Wallwasher: cut-off angle 70° from horizontal

4 Mounting frame

Covered mounting detail
Mounting for ceiling thicknesses to max. 1" / 25mm
Polymer, white
For flush mounting: mounting frame to be ordered separately, fixing for ceiling thicknesses of 1/2" - 1" / 12.5–25mm

5 Housing

Aluminum profile, designed as heat sink

6 Control gear

Trailing edge dimmable or 0-10V dimmable

Trailing edge dimmable version:

Operation at 120V: Dimming with external dimmers possible
Operation at 277V: switchable

Compar linear: Light effect and planning aid

Ambient lighting produced by wide beam light distribution.

Lighting technology
Luminaire arrangement

Downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

Light source
6W - 48.6W
575lm - 6288lm
Downlights

Downlights

For optimum general lighting, the luminaire spacing (d) between two Compar downlights may, as a rough guide, be up to 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2

Ambient lighting produced by wide beam light distribution.

Lighting technology
Luminaire arrangement

Downlights oval wide flood

Wide axially symmetrical light distribution for general lighting.

Light source
6W - 48.6W
575lm - 6288lm
Downlights oval wide flood

Downlights oval wide flood

For efficient workplace illumination in the office, with optimal uniformity and good facial recognition, the luminaire spacing (d) of Compar downlights with oval wide flood distribution (d) may be up to 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

Linear general lighting for spatial structuring and the illumination of zones and pathways.

Lighting technology
Luminaire arrangement

Downlights oval flood

Axially symmetrical light distribution for linear lighting.

Light source
6W - 48.6W
575lm - 6288lm
Downlights oval flood

Downlights oval flood

As a rough guide for uniform illumination, the luminaire spacing (d) between two Compar downlights installed in a row may be up to 1.5 times the height (h) of the luminaire above the working plane.

Arrangement: d ≤ 1.5 x h

Application area: Hallways and corridors as well as above tables.

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
6W - 24.3W
575lm - 3144lm
Lens wallwashers

Lens wallwashers

For uniform vertical illuminance, the distance (a) of Compar lens wallwashers from the wall should be around one third of the wall height (h).

Arrangement: a = 1/3 x h

For good longitudinal uniformity, the spacing (d) of Compar lens wallwashers may be up to 1.3 times the offset from the wall (a).

Arrangement: d ≤ 1.3 x a

Optimal wall offset and luminaire spacing values are indicated in the wallwasher tables on the product data sheets.
