Luminaires for track – Pollux

Special features of Pollux
View product description

Oval flood freely rotatable

The oval flood Spherolit lens can be freely rotated with round luminaire heads to optimally match the lighting to various objects.

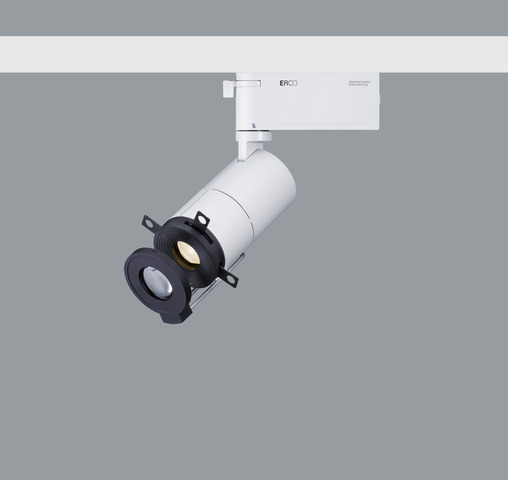

Contour spotlights

Framing attachments enable a sharply defined light beam. In this way fascinating effects can be created with contour spotlights, where crisply illuminated pictures appear to illuminate from within.

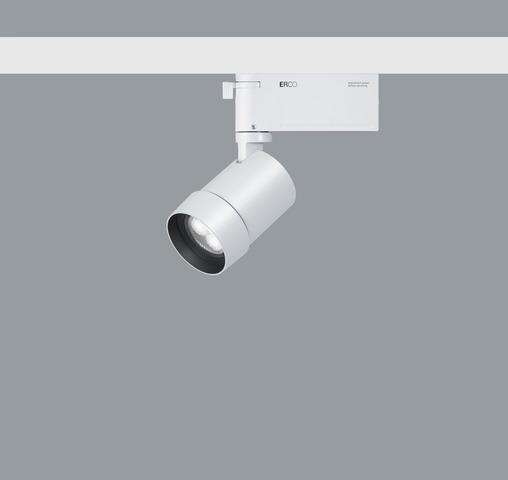

Zoom spotlights

The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.

Small luminaire dimensions

Small luminaires are discreet and place the focus on the light itself. Compact luminaire dimensions are particularly advantageous with small rooms.

Very good price performance ratio

The entry-level products offer an attractive price/performance ratio for lighting design tasks especially oriented towards cost-effectiveness. The luminaires of course meet high levels of energy efficiency and the basic requirements for visual comfort.

The versatility of Pollux, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. As a special highlight, Pollux also includes contour spotlights with LED. Using the framing attachment, their sharp-edged beam can be adjusted to suit the format of images and objects in the room or on the wall.

Pollux in the application

Hangaram Design Museum in Seoul Arts Center, Seoul. Architecture and lighting design: Hangaram Design Museum. Photography: Sebastian Mayer, Berlin.

Arup, Sydney. Lighting design: Arup. Photography: Jackie Chan, Sydney.

100/200.Kitchen, Hamburg. Interior design + lighting design: BFGF Design Studios, Hamburg. Art: Oliver Gevert, Lauenburg. Photography: Frieder Blickle, Hamburg.

Archi+, Hong Kong. Architecture and lighting design: Archi+, Hong Kong. Photography: Jackie Chan, Sydney.

Barbara Kruger "Forever" exhibition, 2019, Amorepacific Museum of Art (APMA), Seoul. Architecture: David Chipperfield Architects (DCA), Berlin. Lighting design: Arup, Berlin. Photography: Jackie Chan, Sydney.

Galleria Arte Moderna, Milan. Photography: Moritz Hillebrand, Zurich.

Baldon Cafe & Bar, Berlin. Architecture: Brandlhuber, Berlin. Lighting design: Patrick McCumiskey. Photography: Sebastian Mayer, Berlin.

Hangaram Design Museum in the Seoul Arts Center, Seoul. Lighting design: Hangaram Design Museum in the Seoul Arts Center, Seoul. Photographer: Sebastian Mayer, Berlin.

Individualize Pollux for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Pollux even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO Spherolit lens

Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
Oval flood 360° rotation

or

Attachment (zoom spotlight)

Zoom lens, continuously focusable
Light distributions: zoom spot, zoom oval
Zoom oval 360° rotation

or

Attachment (contour spotlight)

Rotatable through 360°
Framing attachment: polymer, black
Fresnel lens
Holder with projection lens, continuously focusable

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

3 Housing and bracket

White (RAL9002), black or silver
Cast aluminum, powder-coated
0°-90° tilt
Bracket on turning transadapter rotatable through 360°
Internal wiring

4 Control gear

Trailing edge dimmable+On-board Dim
Dimming with external dimmers (trailing edge) possible and rotary control for brightness control on the luminaire

5 ERCO turning transadapter for 2-circuit track

1 ERCO Spherolit lens

Light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood or wallwash
Oval flood 360° rotation

or

Attachment (zoom spotlight)

Zoom lens, continuously focusable
Light distributions: zoom spot, zoom oval
Zoom oval 360° rotation

or

Attachment (contour spotlight)

Rotatable through 360°
Framing attachment: polymer, black
Fresnel lens
Holder with projection lens, continuously focusable

2 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K) or neutral white (3500K or 4000K)
Collimating lens made of optical polymer

3 Housing and bracket

White (RAL9002), black or silver
Cast aluminum, powder-coated
0°-90° tilt
Bracket on turning transadapter rotatable through 360°
Internal wiring

4 Control gear

Trailing edge dimmable+On-board Dim
Dimming with external dimmers (trailing edge) possible and rotary control for brightness control on the luminaire

5 ERCO turning transadapter for 2-circuit track

Pollux: Light effect and planning aid

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

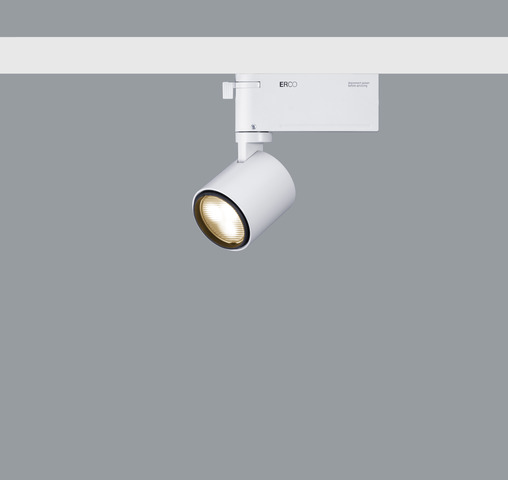

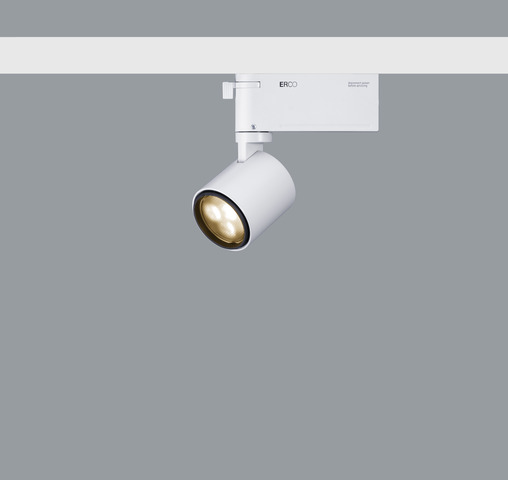

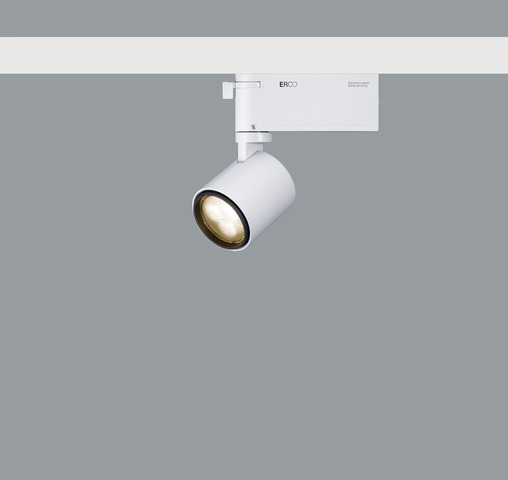

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 6.1W
192lm - 786lm
Spotlights

Spotlights

Pollux spotlights accentuate artwork, products and architectural details effectively. The ideal angle of tilt (α) for this is around 30°. The object is modelled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Zoom spotlights

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
6W - 6.1W
575lm - 786lm
Zoom spotlights

Zoom spotlights

Zoom spotlights feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller works of art can be accentuated effectively at an inclination angle (α) of approximately 30°. The oval zoom is suitable for linear works of art. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Projection of contours.

Lighting technology
Luminaire arrangement

Contour spotlights

Optical system with lens for the projection of hard-edged beams or contours using a framing attachment.

Light source
6W - 6.1W
575lm - 786lm
Contour spotlights

Contour spotlights

Spotlights with framing attachments enable freely settable, crisp-edged light beams. As a result fascinating effects can be created where pictures appear to illuminate from within. The ideal angle of tilt (α) is 30°.

Arrangement: α = 30°

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
6W - 6.1W
575lm - 786lm
Floodlights

Floodlights

The ideal angle of tilt (α) for floodlighting objects with a long, square shape, e.g. pictures, sculptures or merchandise displays, is around 30°.

Arrangement: α = 30°

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
6W - 6.1W
575lm - 786lm
Lens wallwashers

Lens wallwashers

For uniform vertical illuminance, the distance (a) of Pollux lens wallwashers from the wall should be around one third of the room height (h). This results in an angle of tilt (α) of approx. 35°.

Arrangement: a = 1/3 x h or α = 35°

For good longitudinal uniformity, the spacing (d) of Pollux lens wallwashers may be up to 1.2 times the offset from the wall (a).

Arrangement: d ≤ 1.2 x a

The optimal wall offset and luminaire spacing for each product are indicated in the wallwasher tables in the catalogue and the product data sheets.
