Parscan New 120V - Spotlights for track - Indoor

The next generation spotlight:
The new Parscan!

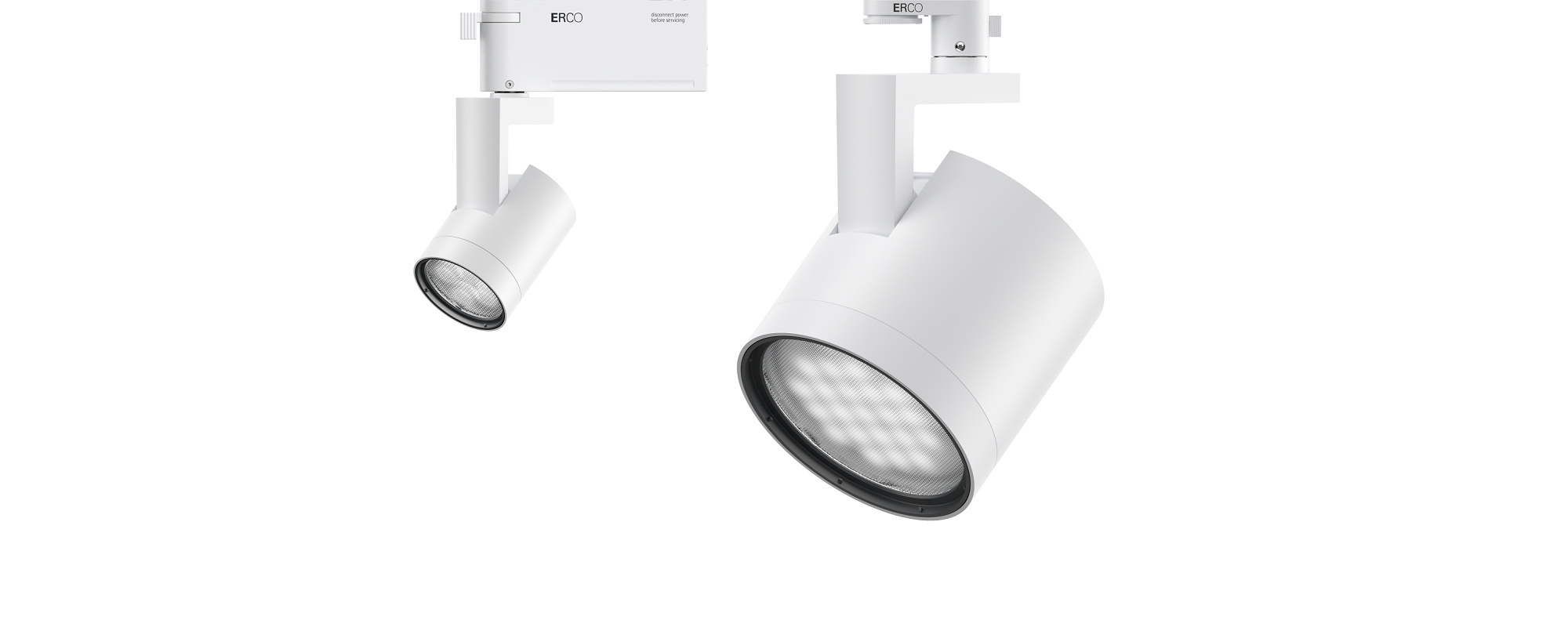

Large lumen packages for very high illuminances

The attention of the viewer can be focused via contrasting accents. ERCO has high-performance luminaires with large lumen packages in its range for this purpose.

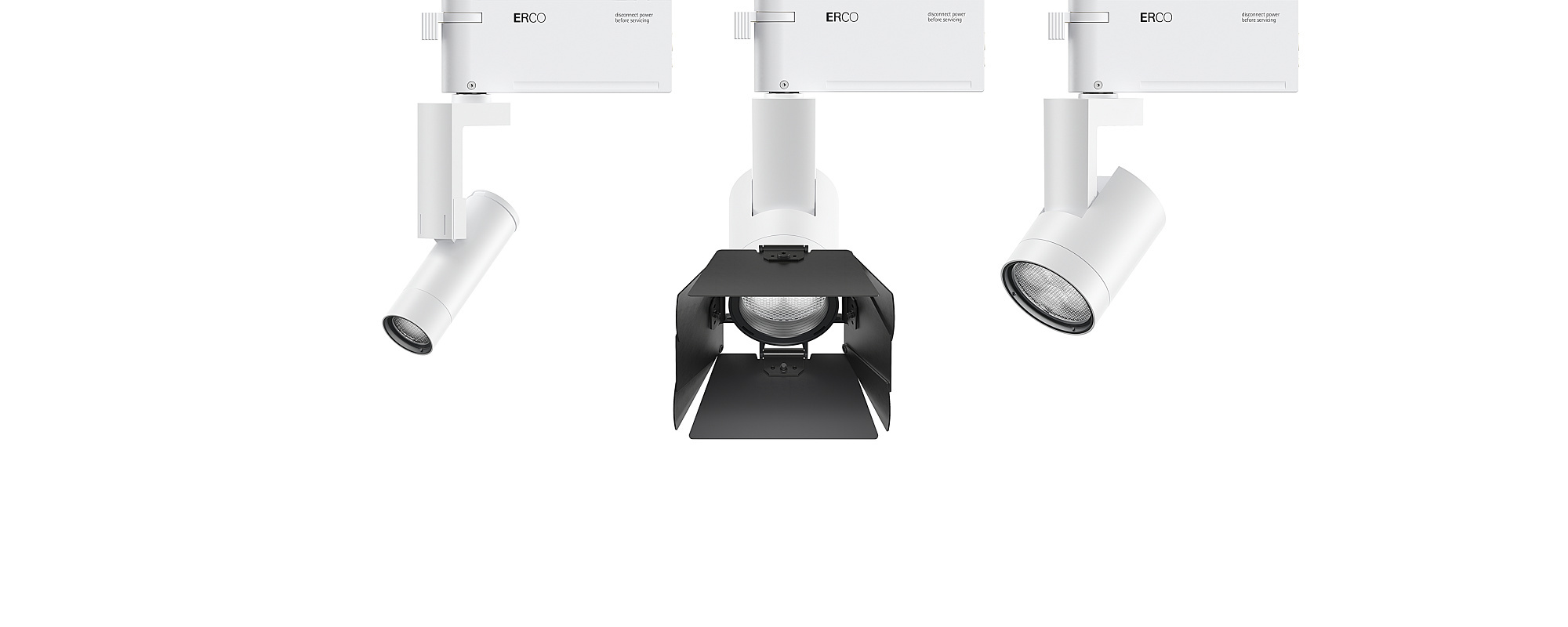

Contour spotlights

Framing attachments enable a sharply defined light beam. In this way fascinating effects can be created with contour spotlights, where crisply illuminated pictures appear to illuminate from within.

Zoom spotlights

The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.

RGBW luminaires

Using colored light, the environment can be designed and transformed with either subtle or dramatic contrasts. LEDs enable you to generate colored light very efficiently and flexibly.

Tunable white technology

Just as the color temperature outdoors changes continuously during the day, the color temperature of the lighting can be adjusted indoors to e.g. support lighting concepts for Human Centric Lighting.

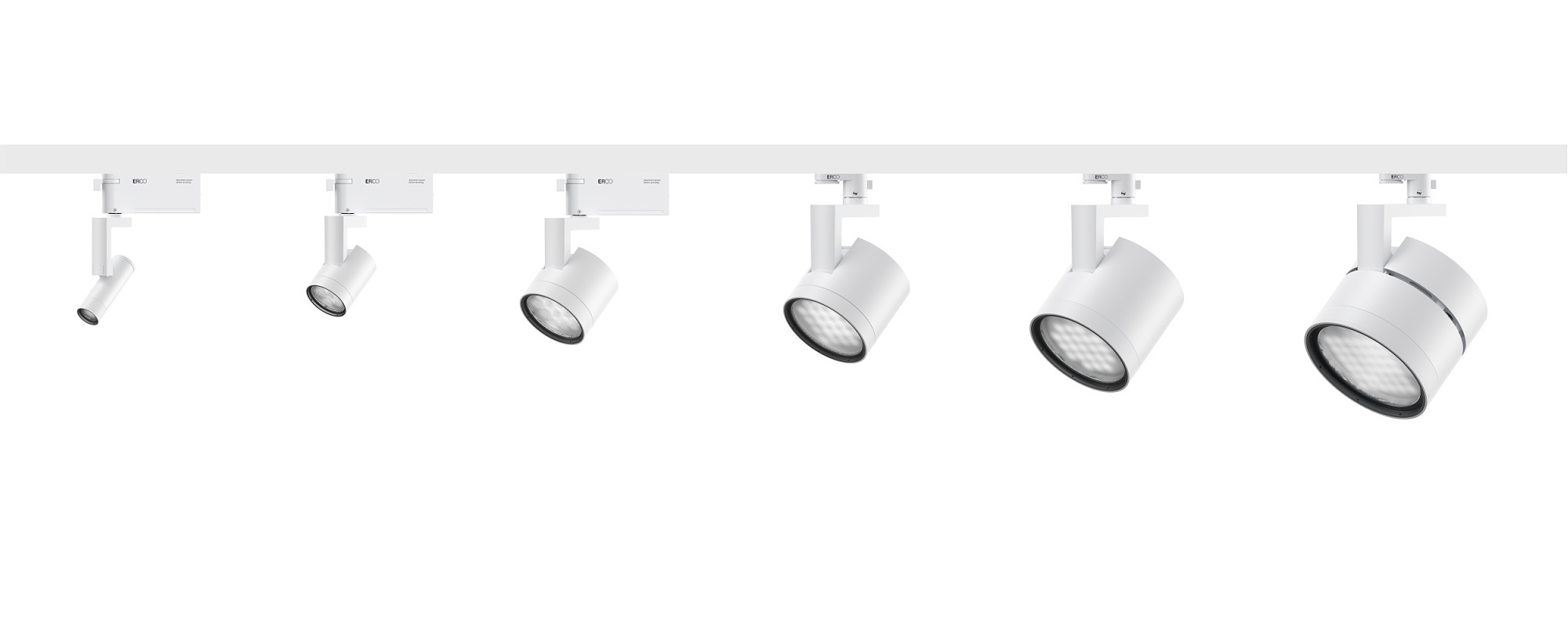

The evolution of Parscan brings a broad technical platform for even more quality of light, design flexibility and digital connectivity. A new generation of Spherolit lenses projects the light onto the target plane – precisely, uniformly and with superior efficiency. Miniaturized technology enables maximum optical performance even from size XS, and the design is timeless and minimalist. Connection via turning transadapter makes Parscan compatible with many existing dimmable lighting installations, e.g. in projects such as museums, shops or sacred spaces. Parscan spotlights can be customized with tool-free, interchangeable lens units and a wide range of accessories to fulfill a wide variety of tasks.

Parscan New 120V in the application

Individualize Parscan New 120V for your use case

With our “ERCO individual” service we offer you extensive options for the individualization of series products as well as support in the development of sophisticated special luminaires. In order to match Parscan New 120V even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

Housing: 10,000 further colors

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO lenses

Made of optical polymer
Spherolit lenses: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

4 Housing and bracket

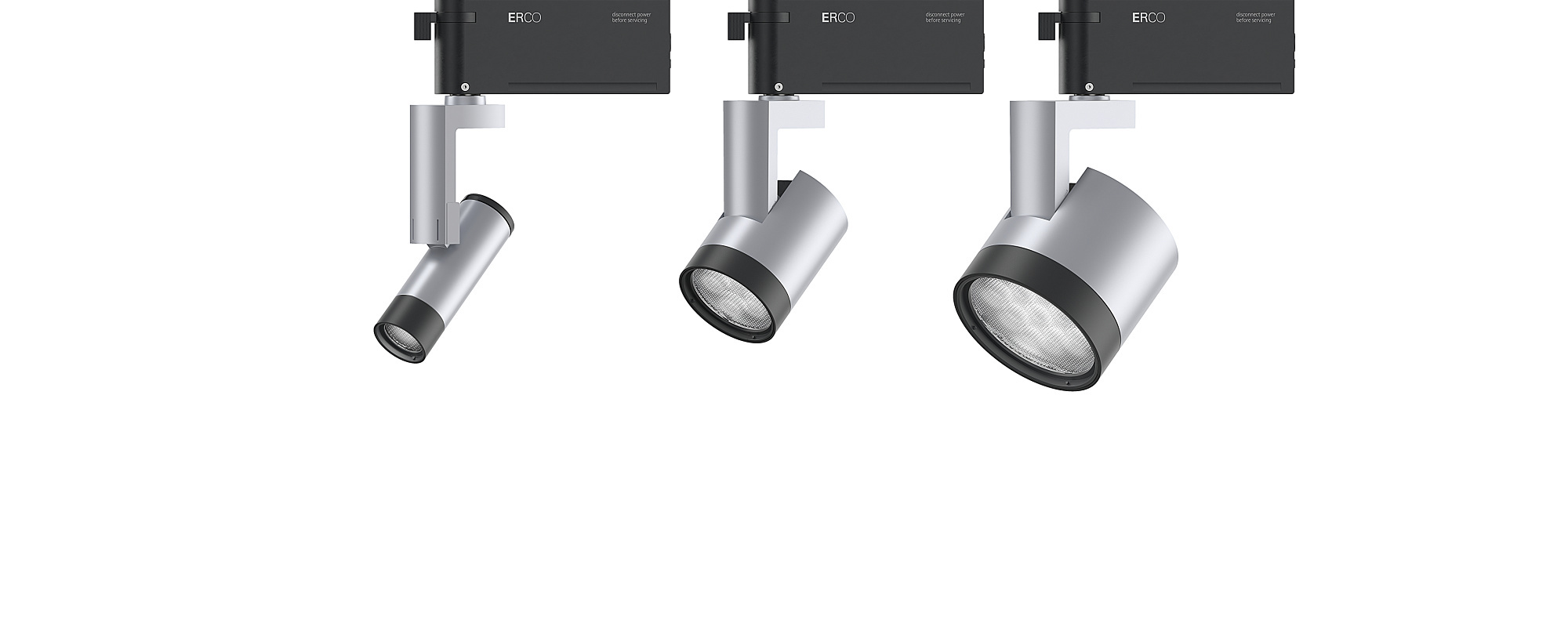

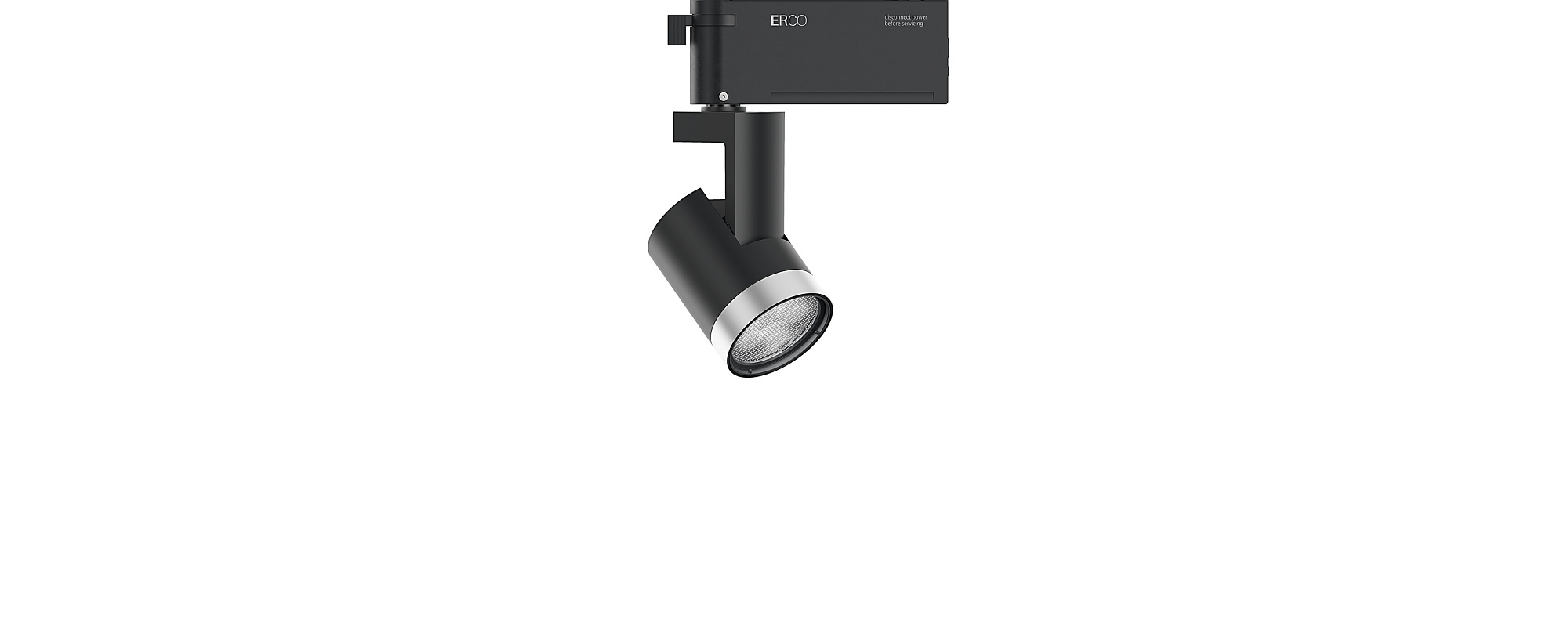

White (RAL9002), black or silver
Die cast zinc or cast aluminum, powder-coated
Pivotable 0°–90°
Bracket: cast aluminum/polymer; rotatable through 360° on adapter

5 Control gear

On-board Dim, Casambi Bluetooth or Zigbee
On-board Dim version: rotary control for control of brightness on the luminaire

6 ERCO turning transadapter or ERCO turning adapter for 2-circuit track

1 ERCO lenses

Made of optical polymer
Spherolit lenses: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood or wallwash
Zoom lenses: zoom spot or zoom oval; continuously focusable
Projection lenses: narrow framing or wide framing; continuously focusable

2 Lens unit

Rotatable through 360°
Polymer, white or black
Contour spotlights with framing attachment

3 ERCO LED-module

High-power LEDs: warm white (2700K or 3000K), neutral white (3500K or 4000K), tunable white (2700-7500K) or RGBW
Collimating lens made of optical polymer

4 Housing and bracket

White (RAL9002), black or silver
Die cast zinc or cast aluminum, powder-coated
Pivotable 0°–90°
Bracket: cast aluminum/polymer; rotatable through 360° on adapter

5 Control gear

On-board Dim, Casambi Bluetooth or Zigbee
On-board Dim version: rotary control for control of brightness on the luminaire

6 ERCO turning transadapter or ERCO turning adapter for 2-circuit track

Parscan New 120V: Light effect and planning aid

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Spotlights

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 56.6W
192lm - 7621lm
Spotlights

Spotlights

Works of art, merchandise and architectural details are effectively accentuated with Parscan. The ideal angle of tilt (α) for this is around 30°. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Zoom spotlights

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
2W - 25.1W
192lm - 3387lm
Zoom spotlights

Zoom spotlights

Zoom spotlights feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller works of art can be accentuated effectively at an inclination angle (α) of approximately 30°. The oval zoom is suitable for linear works of art. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Projection of contours.

Lighting technology
Luminaire arrangement

Contour spotlights

Optical system with lens for the projection of hard-edged contours using a framing attachment.

Light source
5.7W - 25.1W
567lm - 3387lm
Contour spotlights

Contour spotlights

Contour spotlights generate freely adjustable, crisp-edged light beams. As a result fascinating effects can be created where pictures appear to illuminate from within. Select narrow framing to accurately illuminate small exhibits from a long distance and wide framing to accurately illuminate large exhibits from a short distance.

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Floodlights

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
2W - 56.6W
192lm - 7621lm
Floodlights

Floodlights

The ideal angle of tilt (α) for floodlighting objects with a long, square shape, e.g. pictures, sculptures or merchandise displays, is around 30°.

Arrangement: α = 30°

Vertical illuminance for brightening and dividing the space.

Lighting technology
Luminaire arrangement

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
2W - 56.6W
192lm - 7621lm
Lens wallwashers

Lens wallwashers

For uniform vertical lighting, the distance to the wall (a) of Parscan wallwashers should be around one third of the room height (h). This results in an angle of tilt (α) of around 35°.

Arrangement: a = 1/3 x h or α = 35°

For good longitudinal uniformity, the luminaire spacing (d) of Parscan wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.
