Lightscan. Powerful light for large spaces

Effective and efficient general lighting for passages and traffic routes

Show products

Special features of Lightscan
View product description

Improved visual comfort

ERCO has developed luminaires with special housing designs and highquality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Large lumen packages for very high illuminances

ERCO offers luminaires with large lumen packages for generating very high illuminances.

Oval flood freely rotatable

The round oval flood Spherolit lens can be freely rotated with all luminaires to optimally align the light to various objects.

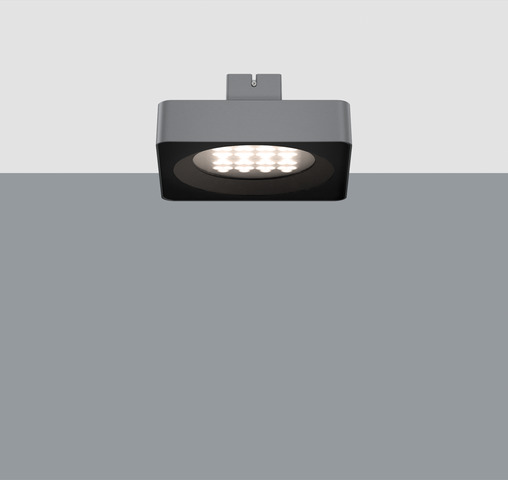

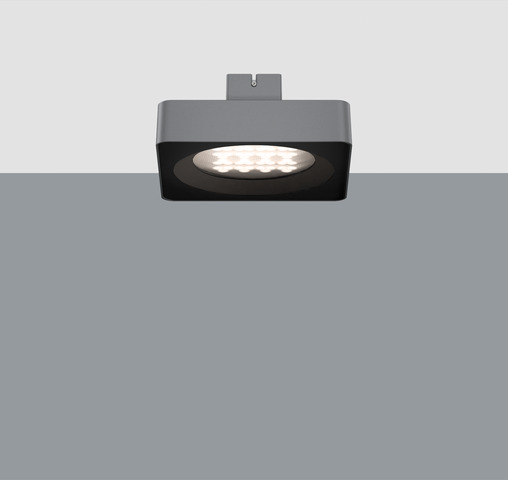

Lightscan ceiling surface-mounted luminaires provide strong, efficient general lighting for large rooms requiring higher protection ratings in indoor and outdoor areas along with easy maintenance. The higher luminous flux levels enable illumination over large distances and guarantee an excellent lighting level on the floor. The light distributions wide flood, extra wide flood and oval flood are ideal for use in railway stations, passages and arcades as well as traffic areas in buildings. The maintenance-free optoelectronics protect resources thanks to their high efficiency and also reduce operating costs.

Lightscan in the application

Individualise Lightscan for your use case

With our “ERCO individual” service we offer you extensive options for the individualisation of series products as well as support in the development of sophisticated special luminaires. In order to match Lightscan even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include, for example:

High-power LEDs: 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92
Housing: 10,000 further colours

Do you have further requirements with the product?

Please contact the consultant team in the following ERCO office:
{{strasse1}}
{{#strasse2}} {{strasse2}}
{{/strasse2}} {{ort}}
{{staat}}

Call an ERCO consultant: {{fon}}

Your contact partners worldwide

Product features in detail

1 ERCO Spherolit lens

Light distributions: wide flood, extra wide flood or oval flood
Oval flood 360° rotation

2 ERCO LED-module

High-power LED: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer

3 Cover frame

Cast aluminium, black powder-coated
Safety glass

4 Housing and ceiling fixture

Graphit m
Corrosion-resistant cast aluminium, No-Rinse surface treatment
Double powder-coated

5 Control gear

Switchable or DALI dimmable

1 ERCO Spherolit lens

Light distributions: wide flood, extra wide flood or oval flood
Oval flood 360° rotation

2 ERCO LED-module

High-power LED: warm white (3000K) or neutral white (4000K)
Collimating lens made of optical polymer

3 Cover frame

Cast aluminium, black powder-coated
Safety glass

4 Housing and ceiling fixture

Graphit m
Corrosion-resistant cast aluminium, No-Rinse surface treatment
Double powder-coated

5 Control gear

Switchable or DALI dimmable

Lightscan: Light effect and planning aid

Ambient lighting produced by wide beam light distribution.

Lighting technology
Luminaire arrangement

Surface-mounted downlights

Wide beam, rotationally symmetrical light distribution for general lighting.

Light source
48.5W - 97W
5738lm - 12576lm
Surface-mounted downlights

Surface-mounted downlights

For uniform ambient lighting, the spacing (d) between two Lightscan surface-mounted downlights may be up to approximately half the height (h) of the luminaire above the working plane.

Arrangement: d = h / 2

Application: halls and high spaces with canopies, e.g. airports or train stations.

The wall offset should be half the luminaire spacing.

Arrangement: a = d / 2

Linear general lighting for spatial structuring and the illumination of zones and pathways.

Lighting technology
Luminaire arrangement

Surface-mounted downlights oval flood

Axially symmetrical light distribution for linear lighting.

Light source
48.5W - 97W
5738lm - 12576lm
Surface-mounted downlights oval flood

Surface-mounted downlights oval flood

For uniform lighting with luminaires arranged in a line, the spacing (d) between two Lightscan surface-mounted downlights should be the height (h) of the luminaire above the working plane.

Arrangement: d = h

Application: circulation zones in high spaces with canopies, e.g. airports or train stations.

Lighting tool

Light distribution

Downloads

Product brochure

Download brochure

Product images

Download product images

Request now: Lightscan for your next project

We will be happy to provide you with an offer, support you with sampling and be available to answer specific planning questions.
